034 Motorsports Billet Spherical Dogbone Mount Performance Pack with Dogbone Pucks, Audi 8V.5A3/S3 and Volkswagen Mk7.5 Golf/Golf R/GTI/Jetta with 7-Speed DSG

The 034Motorsport Billet Spherical Dogbone Mount Performance Pack with Dogbone Pucks for the Audi 8V.5A3/S3 and Volkswagen Mk7.5 Golf/Golf R/GTI/Jetta with 7-Speed DSG includes all of the 034Motorsport performance products associated with the dogbone mount in one comprehensive and convenient package. Included with this kit is the Billet Spherical Dogbone Mount, Upper Dogbone Mount Insert, Lower Dogbone Mount Insert, Dogbone Mount Pucks, and all new hardware.

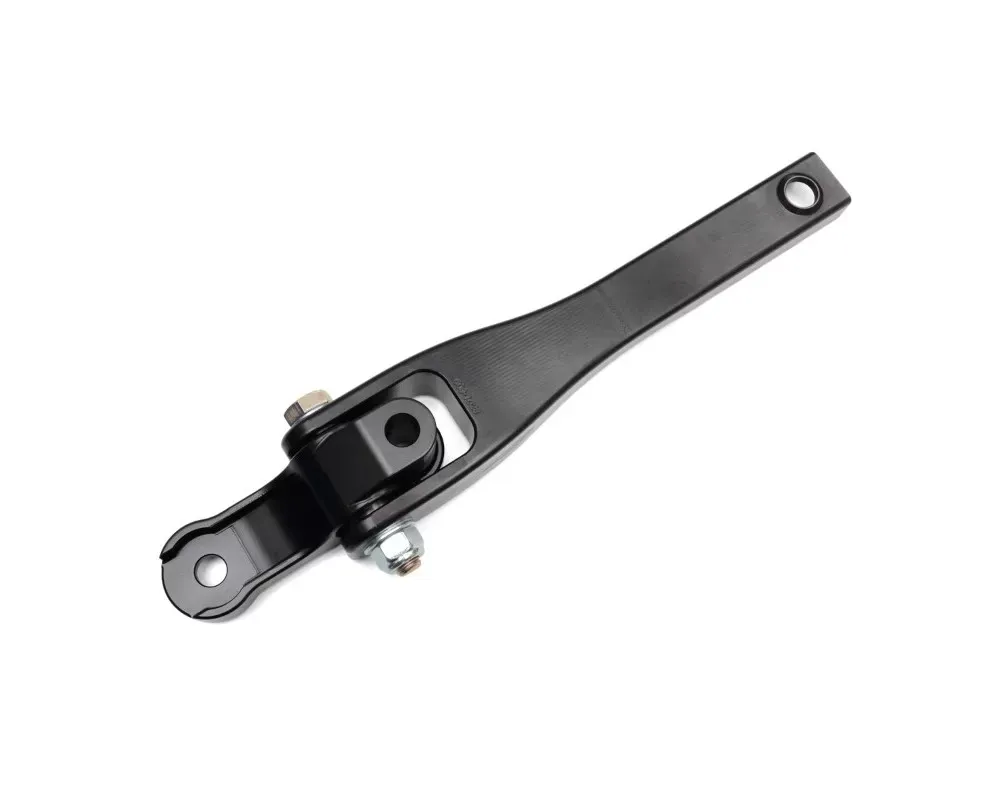

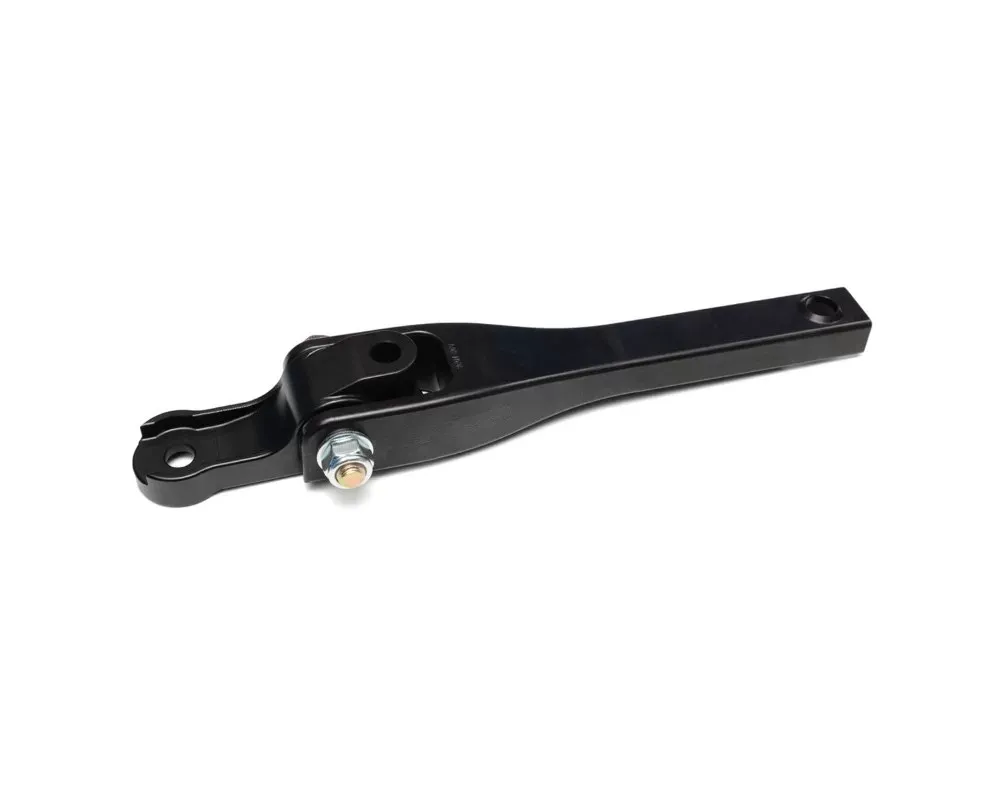

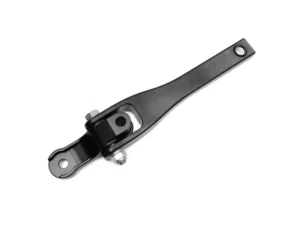

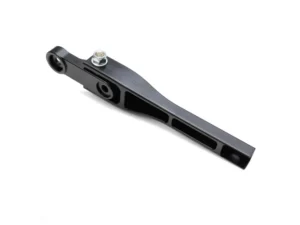

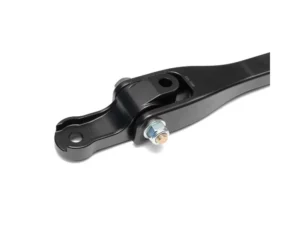

Billet Aluminum Spherical Dogbone Mount
The 034Motorsport Billet Spherical Dogbone Mount is the new standard in performance and durability. This dogbone mount was engineered with performance in mind, manufactured from billet aluminum and stainless steel, and features a genuine Aurora Spherical Bearing to maintain proper articulation and reduce NVH transfer. The Billet Spherical Dogbone Mount is machined and assembled in-house, designed to eliminate the slop associated with the factory mount, and will better withstand the forces generated by hard launches.

The result is a locked-down drivetrain, crisper shifting, and virtually no wheel hop. The Motorsport Dogbone Mount will cause some increase in noise, vibration, and harshness (NVH) inside of the cabin.

Billet Spherical Dogbone Mount Features:

• Bolt-In Performance Upgrade for Factory Dogbone Mount
• Reduced Drivetrain Slop & Engine Movement Under Load
• More Direct Power Transfer & Improved Shifting Feel
• Increased Strength & Improved Durability vs. Factory Part
• T6-6061 Billet Aluminum Body
• 303 Stainless Steel Spacers
• Genuine Aurora Spherical Bearing
• Rebuildable Design
• New Factory Stretch Bolts Included

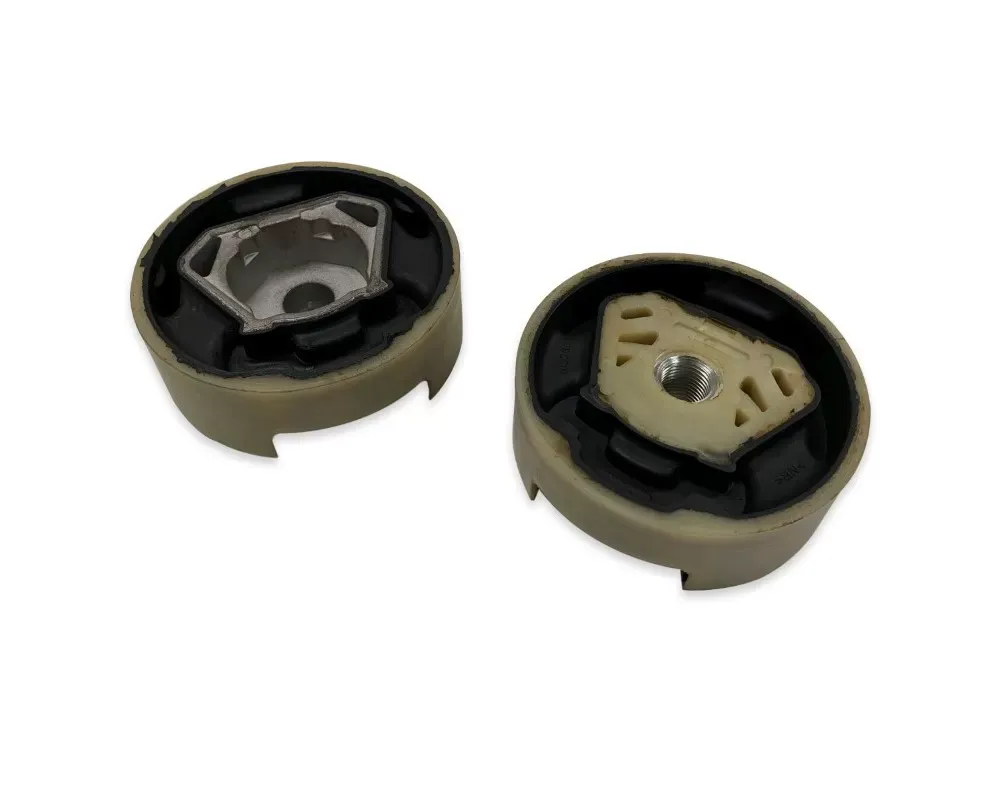

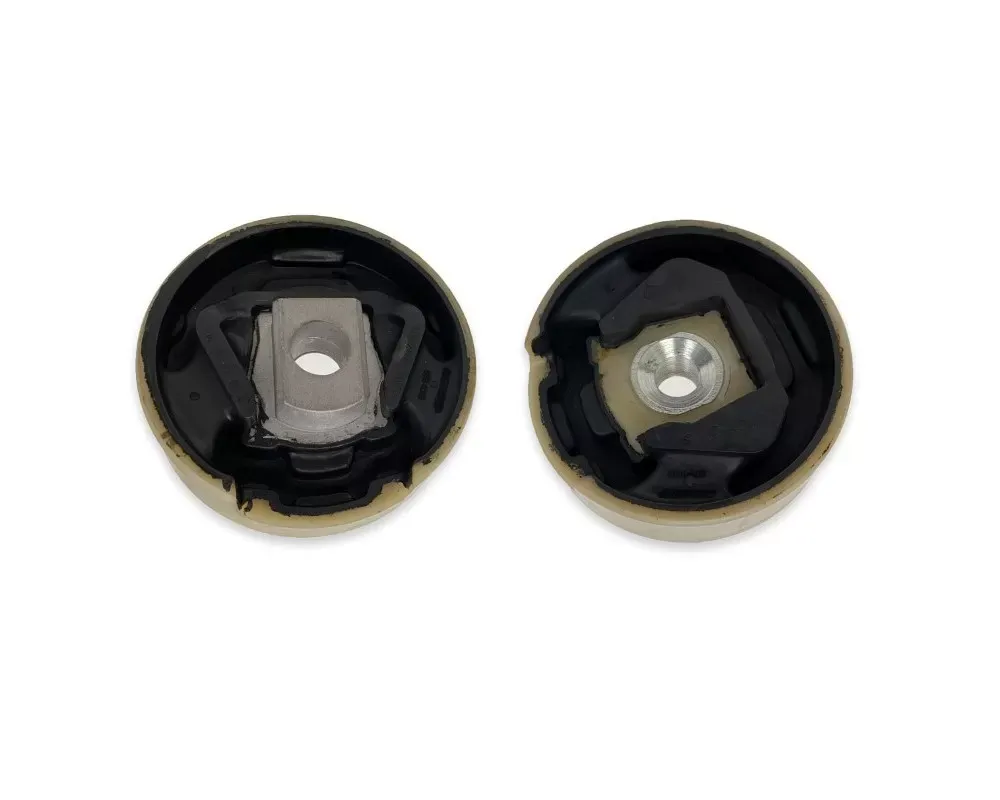

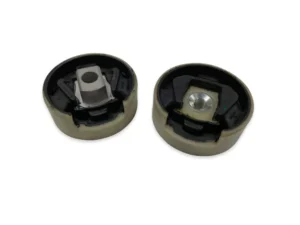

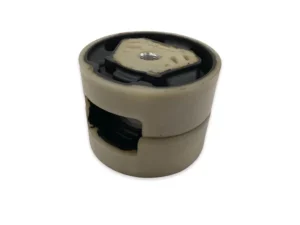

Street Density Dogbone Mount Puck Pair
034Motorsport’s Street Density Dogbone Mount pair for MkVII Volkswagen and 8V/8S Audi models is manufactured from high-durometer rubber for increased performance and durability. The Density Line Dogbone Mount Pair is manufactured from 65 durometer rubber – as opposed to the factory part’s 55 durometer – and features a steel thread insert in the upper mount for increased resistance to stripping threads.

This upgrade is compatible with our full line of MQB drivetrain upgrades, and offers decreased drivetrain movement, crisper shifting, and reduced wheel hop, with minimal noticeable increase in noise, vibration, or harshness (NVH) inside of the cabin. (Please Note: NVH changes may be more noticeable in vehicles equipped with DSG or Tiptronic transmissions, and/or if your factory engine/transmission mounts are worn or failed. We recommend giving the mounts at least 250 miles to break-in after installation.)

Street Density Dogbone Mount Puck Features:

• Complete Drop-In Replacement of Factory Mounts
• Compatible with 034Motorsport’s Version 1 MQB Lower Dogbone Mount Insert, Upper Insert, and Spherical Dogbone
• Manufactured from 65 Durometer Rubber
• Upgraded Steel Thread Insert in Upper Mount Replacing Factory Aluminum Which is Prone to Stripping
• Reduced Drivetrain Movement
• Decreased Engine Movement Under Load
• More Direct Power Transfer
• Improved Shifting Feel
• Sold as a Pair

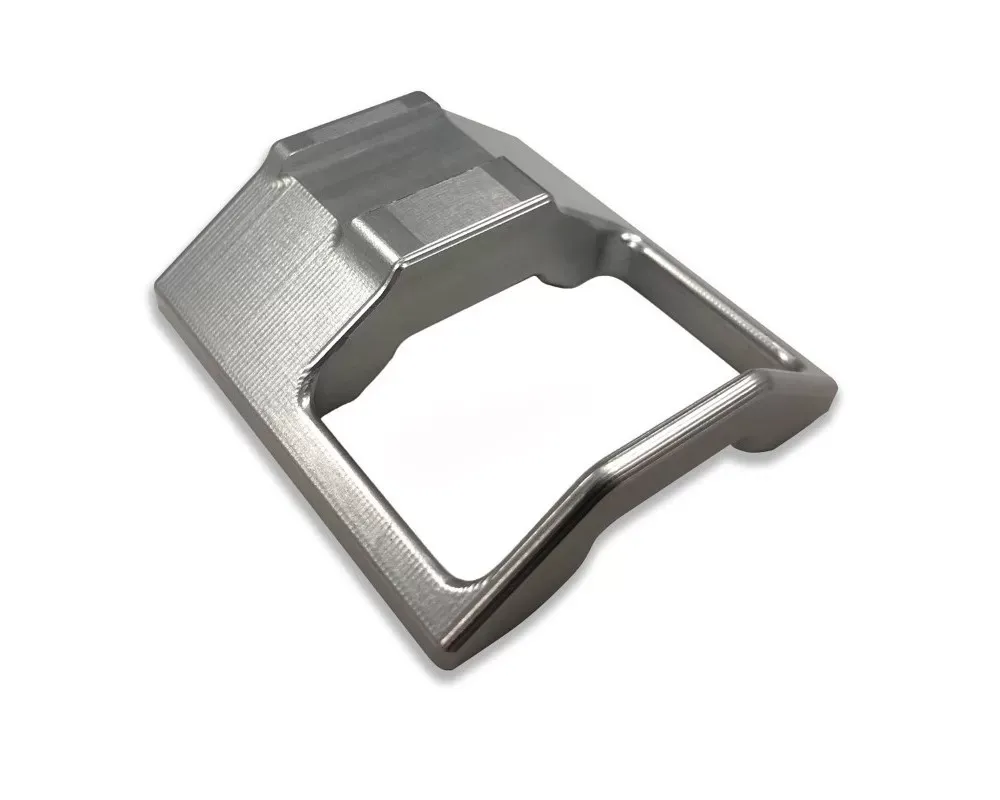

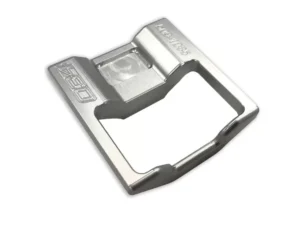

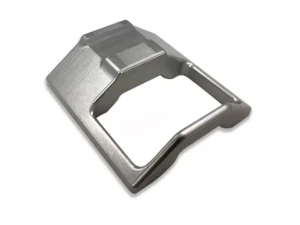

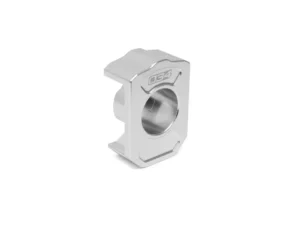

Billet Aluminum Lower Dogbone Mount Insert
This precision-machined billet aluminum insert is designed to fill the large voids in the factory dogbone mount, and limit transmission and engine movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. By filling the void in the factory mount, this insert eliminates the associated slop and ensures that you’re experiencing crisper shifts and a more direct, connected driving experience.

Engineered to work in unison with the factory rubber mount, this insert was designed using CAD software and thoroughly tested and refined to provide noticeable slop reduction without introducing excessive noise or vibration into the cabin, which is common with lesser designs. Unlike polyurethane insert options on the market, this billet aluminum part will not pack and wear over time, and guarantees long-lasting performance.

Billet Aluminum Lower Dogbone Mount Insert Features:

• T6-6061 Billet Aluminum Construction
• Clear Anodized Finish for Durability
• Engineered to Fill Void In Factory Transmission Mount
• Drastically Reduces Transmission Movement During Shifting & Deceleration
• Improves Shifting Feel, Resulting in Crisper Shifts
• Virtually No Additional NVH Transfer Inside Cabin
• Easy, Straightforward Installation Takes Minutes!
• Lifetime Warranty for Original Purchaser

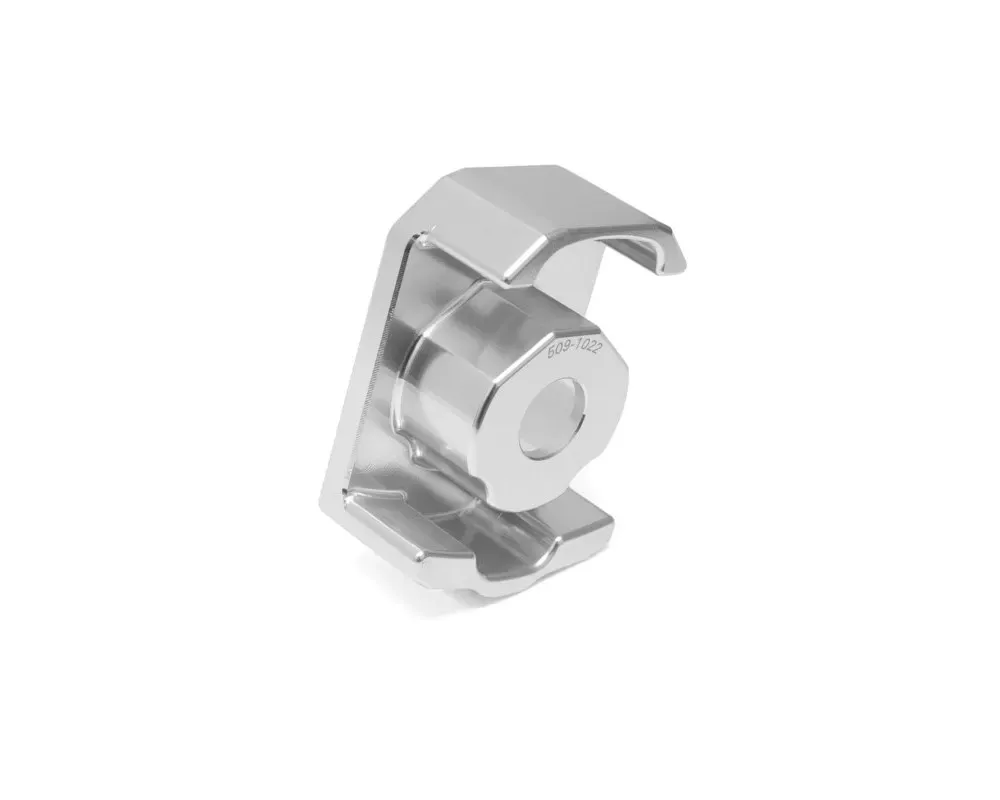

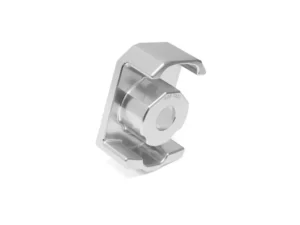

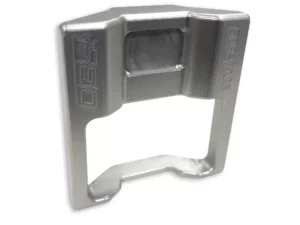

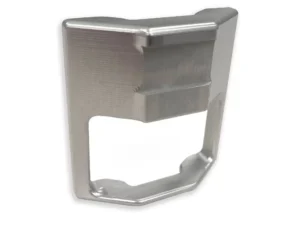

Billet Aluminum Upper Dogbone Mount Insert
The 034Motorsport MQB Upper Dogbone Mount Insert (patent pending) is required for any MQB platform MkVII VW Golf/GTI/R, MkVII VW GLI, 8V/8V.5 Audi A3/S3/RS3 & MkIII Audi TT/TTS/TTRS using an aftermarket dogbone mount and dogbone mount insert. Aggressive driving that causes violent drivetrain movement, such as burn-outs that induce wheel-hop, will cause the upper and lower dogbone mounts to exert a bending moment on the dogbone mount arm, causing it to bend, and in some cases fail. When this failure occurs, the bottom of the engine is unconstrained and the engine will cause damage to other components in the engine bay. The 034Motorsport MQB Upper Dogbone Mount Insert eliminates these bending forces, allowing the dogbone mount to perform as designed during these violent events.

Billet Upper Dogbone Mount Insert Features:

• T6-6061 Billet Aluminum Construction
• Clear Anodized Finish for Durability
• Prevents Lower Insert From Bending
• Prevents Billet Dogbone Arm From Bending
• Engineered to Fill Upper Void In Factory Transmission Mount
• Drastically Reduces Transmission Movement During Shifting & Deceleration
• Improves Shifting Feel, Resulting in Crisper Shifts
• Virtually No Additional NVH Transfer Inside Cabin
• Easy, Straightforward Installation Takes Minutes!
• Lifetime Warranty for Original Purchaser
