034 Motorsports Supertech Valve Spring & Titanium Retainer Set Audi EA837 3.0T & EA839 2.9T/3.0T Engines

034 Motorsports Supertech Valve Spring & Titanium Retainer Set Audi EA837 3.0T & EA839 2.9T/3.0T Engines

$803.00

Category: Valve Springs & Guides Brand: 034 Motorsports

Description
Reviews (0)

Overview

The Supertech Performance Valve Spring & Retainer Set is designed for those looking to improve the powerband of their 3.0T Supercharged EA837 or 2.9T/3.0T Turbocharged EA839 engine past 7,200 – 7,600 RPM, safely. This kit takes a two pronged approach by increasing the spring rates meanwhile reducing the mass of the retainer, by using titanium. The use of titanium provides an adequate fatigue life to be acceptable for all but the highest mileage street use. In addition, the retainer allows a longer spring to further prevent coil bind and allow camshafts with higher lift than factory.

These will allow usage up to 8,000 RPM although we have used them for occasional use to 8,500 RPM on hydraulic lifters. More RPM is possible by converting to solid lifter buckets as there is plenty of spring rate, upgraded rods should be considered when revving over 8000 RPM as well.

Features:

Performance Valve Springs Made with Premium Superclean Chrome Silicon Vanadium Steel Alloy for Higher Performance and Durability
Increased Spring Rate to Stretch the Powerband of the 3.0T/2.9T Engine Out Past 7,600 RPM, Safely.

NOTE: Above 7600RPM, Factory Rods Should Be Updated Unless Specified by the Tuner to be OK.

6AL4V Grade Titanium Retainers for Reduced Mass, Helping to Prevent Valve Float
Allows up to 8,000 RPM (Occasional Use to 8,500 RPM on Hydraulic Lifters)

More RPM is Possible by Converting to Solid Lifter Buckets

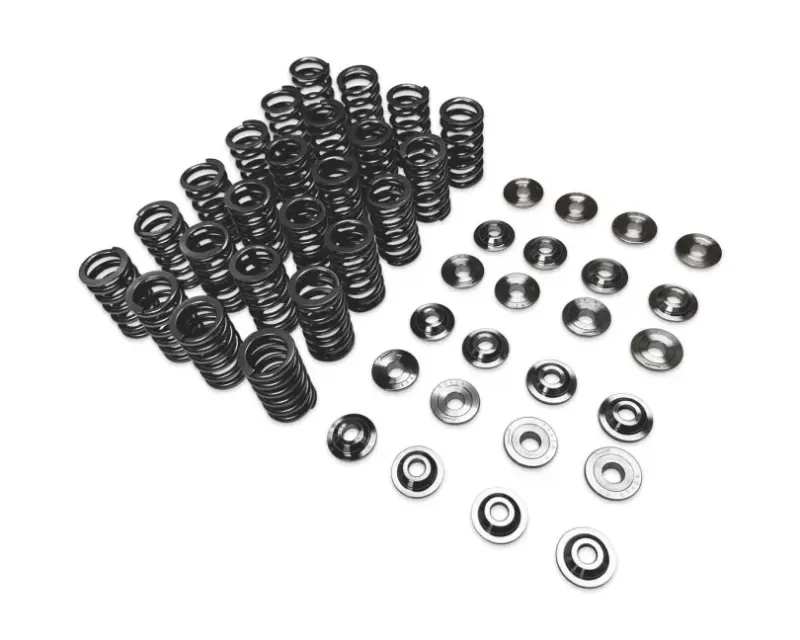

Complete Set of 24 Springs and Retainers

Spring Data:

Seat Pressure – 73lbs @ 38.60mm (Intake), 85lbs @ 37.20mm (Exhaust)
Open (Lift) Pressure – 178lbs @ 10mm (Intake), 190lbs @ 10mm (Exhaust)
Max lift – 12.50mm (Intake), 11.00mm (Exhaust)
Spring Coil Bind – 24.90mm
Rate – 10.50lbs/mm
Spring Outer Diameter – 24.00mm
Spring Inner Diameter – 16.50mm

Included:

Single Springs – 24pcs
Titanium Retainers – 24pcs

Fitment:

Audi A6 2012-2018 C7/C7.5 3.0 TFSI
Audi A7 2012-2018 C7/C7.5 3.0 TFSI
Audi Q5 2009-2017 B8/B8.5 3.0 TFSI
Audi Q7 2011-2015 4L 3.0 TFSI
Audi Q7 2015-Present 4M/4M.5 3.0 TFSI
Audi RS5 2018-Present B9/B9.5 2.9 TFSI
Audi S4 2010-2017 B8/B8.5 3.0 TFSI
Audi S4 2018-Present B9/B9.5 3.0 TFSI
Audi S5 2008-2017 B8/B8.5 3.0 TFSI
Audi S5 2018-Present B9/B9.5 3.0 TFSI
Audi S6 2019-Present C8 2.9 TFSI
Audi S7 2019-Present C8 2.9 TFSI
Audi SQ5 2012-2017 B8/B8.5 3.0 TFSI
Audi SQ5 2018+ B9/B9.5 3.0 TFSI
Audi SQ8 2019+ 4M8 3.0 TFSI
