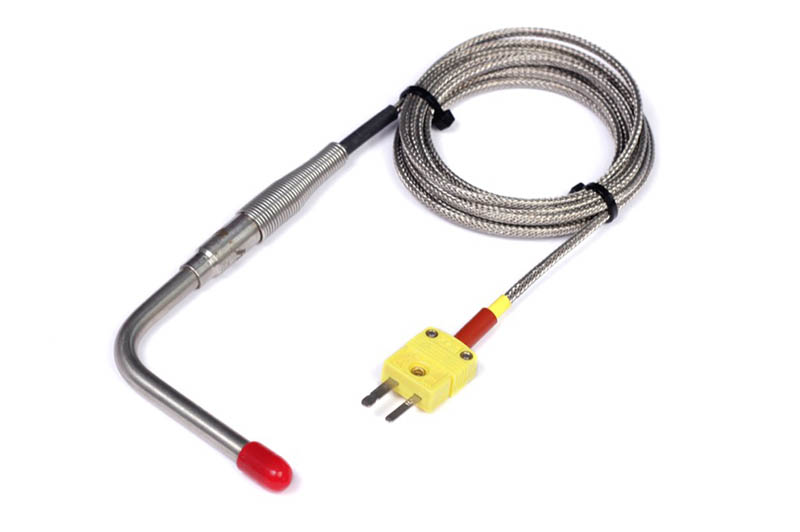

1/4″ Open Tip Thermocouple Length: 1.41m (55.5″)

Precision EGT Sensor for High-Performance Tuning: 1/4″ Open Tip (1.41m)

In the pursuit of horsepower, ignorance is not bliss—it is a broken engine waiting to happen. The 1.41m (55.5″) 1/4″ Open Tip Thermocouple is a professional-grade sensor designed to illuminate the thermal conditions inside your combustion engine. Exhaust Gas Temperature (EGT) is a primary variable in the tuning equation, serving as a proxy for cylinder pressure and combustion timing. This probe is specifically manufactured with an open-tip junction, prioritizing speed and accuracy over the rugged but sluggish nature of fully enclosed industrial sensors. It is the ideal tool for tuners, calibrators, and race teams using standalone ECUs to monitor engine health and performance limits.

Why Open Tip Matters

The “Open Tip” design removes the protective metal sheath from the immediate sensing junction. In a standard grounded or ungrounded probe, heat must travel through the outer wall and insulation before reaching the Type K junction. This creates a lag. By exposing the junction directly to the exhaust gas, this sensor achieves near-instantaneous response times. This allows for the detection of rapid temperature fluctuations that characterize specific combustion anomalies, such as pre-ignition or uneven cylinder distribution. The 1/4″ probe diameter ensures the structural integrity needed to survive in the turbulent, high-pressure environment of a turbo manifold.

Strategic 1.41m Length

The 1.41-meter (55.5-inch) cable length is tailored for mid-sized engine bays or installations where the data acquisition module is mounted reasonably close to the firewall. It avoids the signal noise and resistance issues often introduced by coiling up excessive slack or using low-quality extension wires.

• Type K Accuracy: Standard Chromel-Alumel composition ensures compatibility with virtually all automotive thermocouple amplifiers.
• Heat Resistant Cabling: Insulation materials selected to withstand the under-hood thermal soak.
• Diagnostic Power: Essential for verifying individual cylinder trims and ensuring safe operation of rotary, piston, and diesel engines.

Installation Requirements

Important: This sensor requires a 1/4″ compression fitting for installation into the exhaust system, which is not included. Users should ensure they have the appropriate weld-on bung and fitting kit to secure the probe and prevent exhaust leaks. Connects via a standard Mini K connector.
