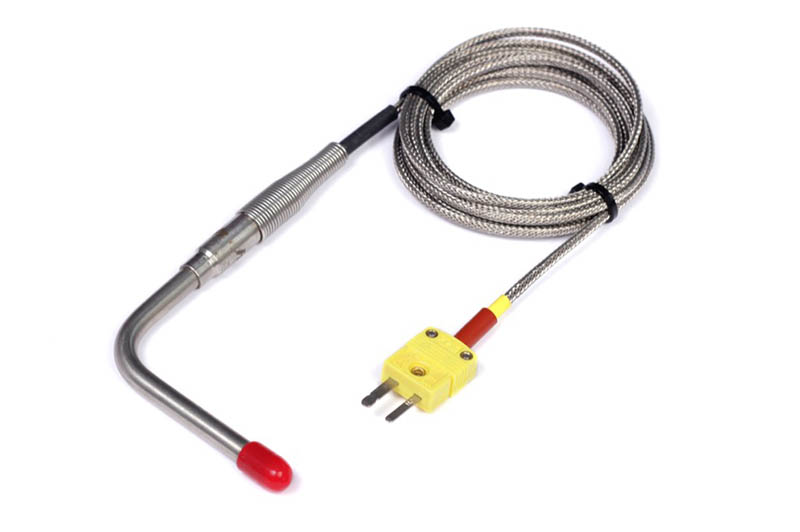

1/4″ Open Tip Thermocouple Length: 2.10m (82.5″)

Instantaneous Thermal Feedback: 1/4″ Open Tip Thermocouple (2.10m)

High-stakes engine tuning requires data that moves at the speed of combustion. The 1/4″ Open Tip Thermocouple with a 2.10-meter (82.5″) lead is a high-response sensor designed for accurate exhaust gas temperature (EGT) measurement. Featuring an exposed open-tip junction, this sensor eliminates the delay inherent in sheathed probes, delivering a high-fidelity signal to your standalone ECU integration. This is a foundational component for builders of high-power RB26, 2JZ, and K-swap platforms, where monitoring thermal load is the most direct method for ensuring detonation protection.

Engineering Principles: Open-Tip Signal Accuracy

Standard thermocouples use a stainless steel cap to protect the sensing bead, which acts as a thermal buffer. This 1/4″ open-tip probe exposes the K-type junction directly to the exhaust stream, allowing the Analogue-to-Digital interface (processed via a Haltech TCA module) to identify temperature changes in real-time. This resolution is critical for fuel map calibration, as it allows the tuner to identify and correct for individual cylinder temperature variances. The 2.10m lead is built to survive the high-vibration environment of a race engine, with a flexible stainless steel over-braid to protect the delicate millivolt signal from EMI and mechanical wear.

Operational Benefits for Force Induction and Rotary

Integrating 2.10m open-tip sensors with a Haltech Elite or Nexus system allows for advanced thermal management. In high-boost 2JZ or Rotary builds, the ECU can be programmed to instantly drop boost targets or retard Ignition Timing if EGTs cross a safe threshold. This deterministic feedback is essential for maintaining the integrity of high-dollar engine internals. The Mini K Type connector ensures a secure electrical interface that is fully compatible with professional data loggers and dashboard displays, providing the tuner with the empirical truth needed to find the Maximum Brake Torque (MBT) timing safely.

Installation and Professional Integration

This thermocouple is suits NA or Forced induction applications and includes the Mini K Type connector. It requires a Haltech TCA 2 or 4 amplifier to convert the sensor’s voltage into usable data. Installation is via a 1/4″ compression fitting and a weld-on manifold bung. It is critical to note that fitting hardware is NOT included with this SKU. During harness integration, the 2.10m length provides excellent routing options for most modern chassis, allowing the signal conditioner to be mounted in a cool, safe location away from the extreme heat of the turbocharger.

Technical Specifications Table

Summary & Includes

The 1/4″ Open Tip Thermocouple (2.10m) is the high-response choice for performance thermal sensing. Includes: 1 x 2.10m Thermocouple and 1 x Mini K Type Connector. Note: Mandatory hardware for any engine build where accurate, high-speed EGT data is required for safety.
