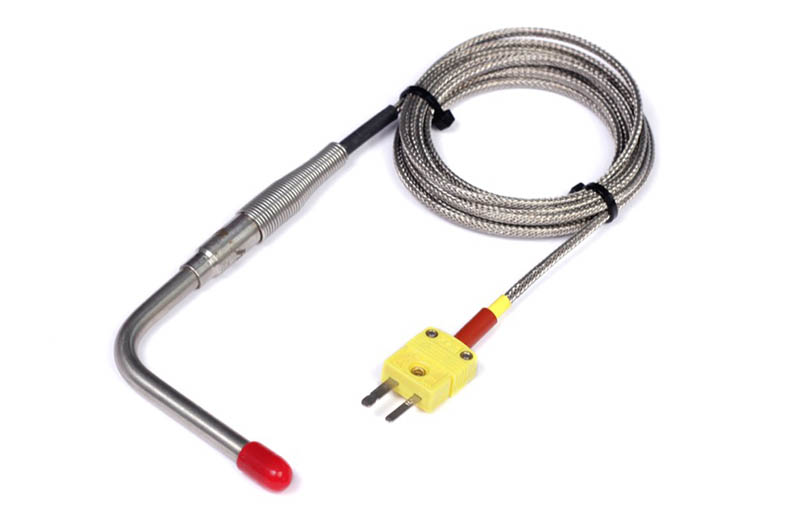

1/4″ Open Tip Thermocouple Length: 2.21m (87″)

Thermal Response Superiority: 1/4″ Open Tip Thermocouple (2.21m)

In high-end performance electronics, the speed of your data acquisition determines the robustness of your safety strategies. The 1/4″ Open Tip Thermocouple with a 2.21-meter (87″) length is a precision instrument designed for high-resolution thermal monitoring. By utilizing an open-tip exposed junction, this thermocouple eliminates the thermal lag associated with sheathed sensors, delivering a microsecond-fast response to exhaust gas temperature (EGT) changes. This is a mandatory component for high-power LS-swap, 2JZ, and RB26 engines, where monitoring EGT is the single best way to ensure detonation protection under extreme loads.

Engineering Principles: Exposed-Junction Thermal Dynamics

The 1/4″ open-tip design places the sensing bead directly in the path of high-velocity exhaust gases. This results in the highest possible heat-transfer coefficient, allowing the Analogue-to-Digital interface (via a Haltech TCA module) to capture the true combustion temperature of every cylinder. In a fuel map calibration context, this data allows the tuner to identify injector-flow variations and apply individual cylinder fuel trims. The 2.21m lead is loomed with high-temperature materials to survive the engine-bay environment, ensuring that EMI (Electromagnetic Interference) does not corrupt the sensitive millivolt signal of the K-type conductors.

Operational Benefits for Pro-Level Drag and Circuit Tuning

Integrating a 2.21m open-tip thermocouple with a Haltech Elite or Nexus system enables advanced engine protection maps. During a pass, the ECU can monitor EGTs in real-time; if a temperature spike is detected, the ECU can instantly retard Ignition Timing or drop boost targets via closed-loop boost control to prevent piston meltdown. This deterministic feedback is far more reliable than relying on O2 sensors alone, especially when running ethanol or methanol fuels. The Mini K Type connector ensures a secure, vibration-proof electrical path, which is critical for maintaining accurate data on your iC-7 Digital Display during competition.

Installation and Harness Integration

This thermocouple is suits NA or Forced induction applications and includes the Mini K Type connector. Proper installation requires the use of a 1/4″ compression fitting and a weld-on bung, ensuring the sensor tip is correctly positioned in the exhaust stream. It is important to note that fitting hardware is NOT included with this SKU. During harness integration, the 2.21-meter length provide sufficient reach for most performance car engine bays, allowing the TCA amplifier to be mounted in a cool location. This modular sensor is an essential part of any high-stakes engine development project, providing the laboratory-grade data needed for winning performance.

Technical Specifications Table

Summary & Includes

The 1/4″ Open Tip Thermocouple (2.21m) is the standard for high-response thermal telemetry. Includes: 1 x 2.21m Thermocouple and 1 x Mini K Type Connector. Note: Fitting hardware and TCA amplifier required; specifically engineered for high-RPM motorsport use.
