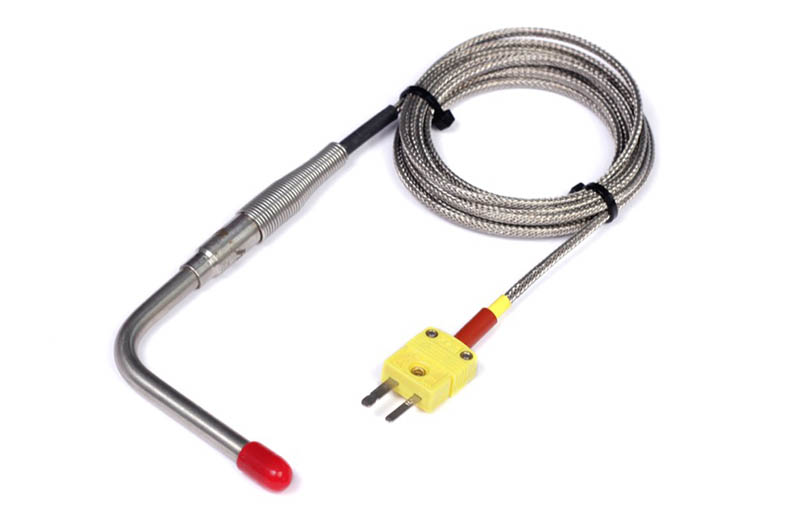

1/4″ Open Tip Thermocouple Length: 2.44m (96″)

High-Response Thermal Sensing: 1/4″ Open Tip Thermocouple (2.44m)

In high-performance engine management, the ability to monitor exhaust gas temperatures (EGT) with zero latency is vital for protection. The 1/4″ Open Tip Thermocouple is a laboratory-grade sensory instrument designed for maximum responsiveness. Featuring an exposed-junction “Open Tip”, this thermocouple removes the protective thermal mass found in sheathed sensors, providing the standalone ECU integration with instantaneous data. With a generous 2.44-meter (96″) length, this sensor is the definitive choice for monitoring EGTs on high-boost 2JZ, RB26, and multi-rotor racing engines, where detecting a lean spike in milliseconds is the difference between survival and failure.

Engineering Principles: Open-Tip Thermal Dynamics

The core innovation of the open-tip design is the direct exposure of the welded K-type junction to the gas stream. This results in the fastest possible time constant, allowing the Analogue-to-Digital interface (via a TCA module) to report thermal changes as they occur. This resolution is foundational for detonation protection; in a fuel map calibration scenario, the tuner can identify individual cylinder imbalances before they manifest as knock. The 1/4″ diameter stainless steel sheath provides the mechanical strength needed to hold the sensor in high-velocity exhaust streams, while the 2.44m lead ensures signal integrity over a long run from the manifold to the cockpit-mounted amplifier.

Operational Benefits for Competition Tuning

Integrating 1/4″ open-tip thermocouples with a Haltech TCA 2 or 4 amplifier provides the ECU with a deterministic timing reference based on exhaust heat. In high-power LS-swap builds using closed-loop boost control, this data allows the ECU to manage fueling trims based on EGT, protecting the valves and turbine wheel from heat-related fatigue. The open-tip responsiveness is particularly critical for drag racing, where the engine spends only seconds at peak load. The Mini K Type connector included in the kit ensures a secure, low-noise connection that is industry-standard for motorsport telemetry systems.

Installation and Integration Strategy

This 1/4″ thermocouple is a universal component and includes a Mini K Type connector. It is designed for use in either NA or Forced Induction applications. During installation, the sensor should be mounted via a weld-on bung, typically 2-3 inches from the exhaust port for individual cylinder monitoring. It is critical to note that this SKU does not include any fitting hardware; appropriate compression fittings must be ordered separately. The 2.44m length facilitates clean harness integration in large-chassis vehicles, allowing the delicate thermocouple wire to be routed away from high-current EMI sources like spark plug leads.

Technical Specifications Table

Summary & Includes

The 1/4″ Open Tip Thermocouple (2.44m) is the ultimate tool for instantaneous exhaust temperature data. Includes: 1 x 2.44m Thermocouple and 1 x Mini K Type Connector. Note: Fitting hardware and TCA amplifiers are sold separately; mandatory for accurate individual cylinder EGT monitoring.
