1/4″ Stainless Compression Fitting Kit Thread: 1/8 NPT

Reliable Sensor Mounting: 1/4″ Stainless Compression Fitting Kit (1/8 NPT)

In high-performance plumbing and sensor installation, the integrity of your connections is paramount. The 1/4″ Stainless Compression Fitting Kit is engineered to provide a leak-proof, high-pressure seal for 1/4-inch probes and tubing. Manufactured from high-grade stainless steel, this fitting is designed to withstand the extreme heat cycles and corrosive environment of an exhaust system, making it the definitive choice for mounting Exhaust Gas Temperature (EGT) thermocouples.

Engineering for the Extreme

Unlike brass fittings which can soften or corrode under high thermal load, this stainless steel fitting maintains its structural integrity at exhaust temperatures. The kit features a 1/8 NPT (National Pipe Taper) male thread, the industry standard for manifold and bung taps. The compression side accepts any standard 1/4″ (6.35mm) outer diameter probe or tube. When the compression nut is tightened, the internal ferrule deforms against the probe, creating a gas-tight mechanical seal that prevents exhaust leaks and securely holds the sensor in place against the pressure of the exhaust stream.

Adjustable Depth

One of the key benefits of using a compression fitting for EGT sensors is the ability to adjust the insertion depth. This allows the tuner to position the sensor tip precisely in the center of the exhaust flow for the most accurate reading, regardless of the manifold pipe diameter. It also facilitates easy removal for maintenance or replacement.

Application Guide

• EGT Probes: Perfect for mounting 1/4″ Type K thermocouples in exhaust manifolds.
• Fluid Lines: Can be used for stainless or hardline tubing in fuel or oil systems requiring 1/4″ OD.
• Pressure Rating: Suitable for both high-pressure and vacuum applications.

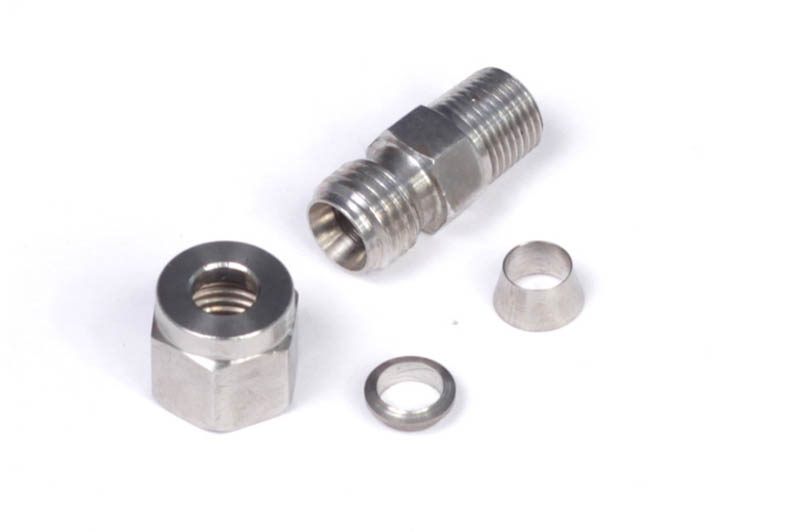

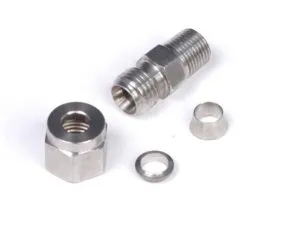

Kit Contents

Includes one (1) Stainless Steel Fitting Body, one (1) Compression Nut, and one (1) Ferrule. Note: Compression ferrules are single-use items. Once tightened, they permanently deform to the probe.
