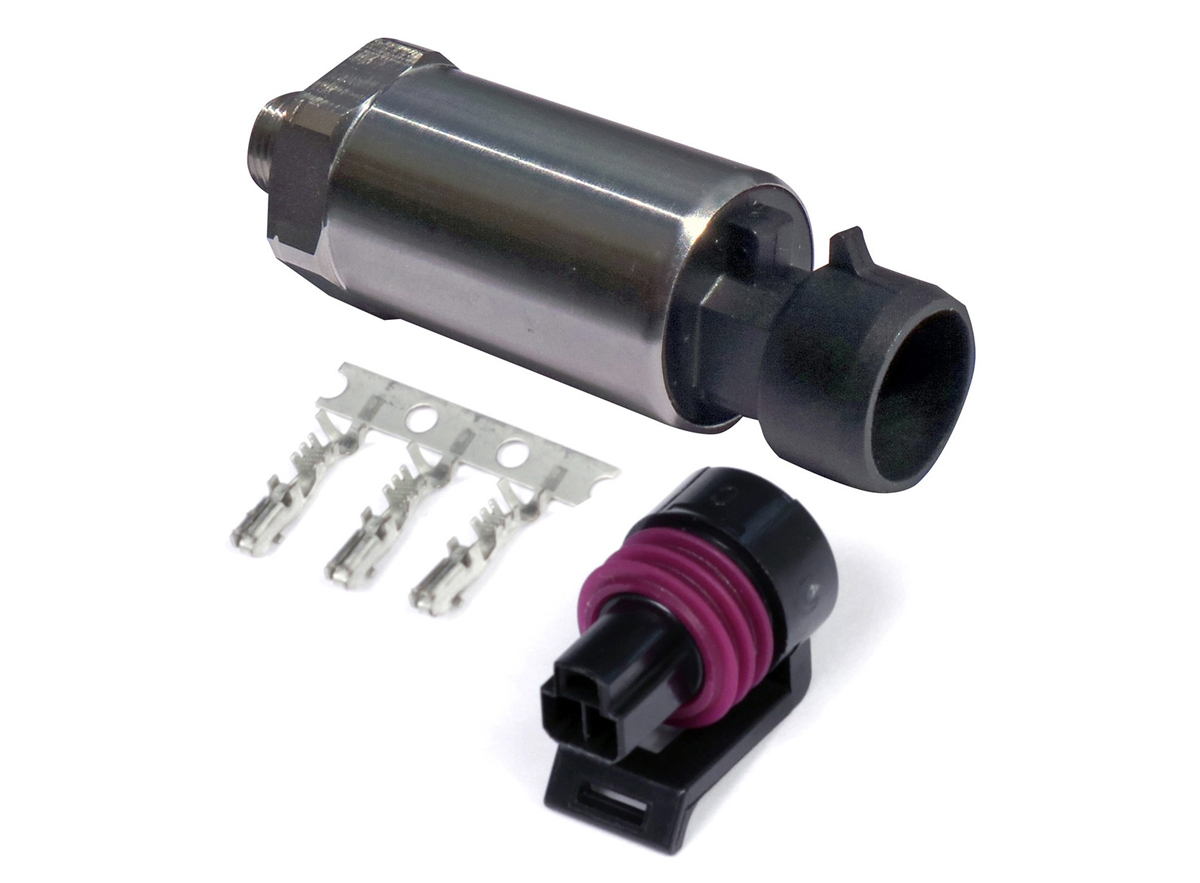

150 PSI Motorsport Fuel/Oil/Wastegate Pressure Sensor (Stainless Steel Diaphragm) Thread: 1/8 NPT

Diagnostic Authority: 150 PSI Motorsport Pressure Sensor

Monitoring critical engine pressures is the primary defense against internal damage. The 150 PSI Motorsport Fuel/Oil/Wastegate Pressure Sensor is a competition-grade transducer designed for high-resolution reporting. Utilizing a Stainless Steel Diaphragm, this sensor is engineered to survive the high-frequency vibrations and corrosive fluids found in performance LS-swap, 2JZ, and K-swap racing engines. Featuring a standard 1/8 NPT thread, this sensor provides your standalone ECU integration with the reliable data stream needed to manage fuel pressure safeties and engine protection strategies.

Engineering Principles: Stainless Diaphragm Advantage

The move from silicon to a stainless steel sensing diaphragm provides unmatched durability against the pressure spikes common in performance fluid systems. This Analogue-to-Digital interface allows the ECU to maintain a high-resolution window into system health, reporting from 0 to 150 PSI with surgical accuracy. This range is the industry standard for monitoring engine oil pressure and fuel pressure. In a fuel map calibration scenario, this sensor allows the tuner to verify that the fuel system is keeping up with driver demand, preventing lean-out events that could compromise your detonation protection maps.

Operational Benefits: Remote Mounting and Signal Purity

Haltech’s Motorsport series sensors must be remote-mounted and connected via a flexible hose (such as HT-039103) to ensure signal stability. Direct mounting into the block or fuel rail exposes the sensing element to engine harmonics that can corrupt the data and lead to hardware failure. By remote-mounting, you achieve a cleaner data log, allowing the tuner to identify subtle pressure drops that could indicate a failing fuel pump or clogged filter. For turbocharged builds utilizing closed-loop boost control, this sensor provides a deterministic wastegate reference, ensuring that boost levels remain rock-steady regardless of exhaust backpressure.

Installation and Harness Integration

This 150 PSI sensor is a universal performance upgrade and includes the matching Delphi plug and 3 pins for a professional harness integration. It is fully compatible with Haltech Elite and Nexus series ECUs and can be easily configured via a standard 0-5V calibration table. During installation, the use of high-quality Tefzel wiring is recommended to match the motorsport pedigree of the sensor. The stainless steel body ensures that the sensor remains weatherproof and functional even in the most demanding endurance racing environments, making it a favorite for professional drift and circuit teams.

Technical Specifications Table

Summary & Includes

The 150 PSI Motorsport Sensor is the bedrock of engine protection and fueling telemetry. Includes: 1 x 150 PSI Sensor and 1 x Matching Delphi Connector Set. Note: Mandatory remote mounting via flexible hose (HT-039103) is required for long-term reliability.
