3 Bar GM MAP Sensor

Standard Boost Authority: 3 Bar GM MAP Sensor

In high-performance engine management, the Manifold Absolute Pressure (MAP) sensor is the primary sensory organ for load detection. The 3 Bar GM MAP Sensor is the industry standard for engines producing up to 2 bar (approximately 30 PSI) of positive boost. Designed for seamless standalone ECU integration, this sensor is the definitive choice for LS-swap builds and turbocharged 2JZ or RB26 engines requiring a robust and high-resolution manifold pressure signal. It provides the ECU with the high-fidelity data needed for accurate fuel map calibration and world-class detonation protection.

Engineering Principles: Piezoresistive Manifold Monitoring

The GM-style 3-bar sensor utilizes a high-precision piezoresistive sensing bridge to translate manifold absolute pressure into a 0-5V digital signal. This Analogue-to-Digital interface allows the ECU to maintain a deterministic load reference, ensuring that your Ignition Timing and fuel delivery are perfectly synchronized with intake air mass. The 3-bar range is specifically calibrated for high-performance street and track applications, providing enough headroom for aggressive boost targets while maintaining high signal resolution. This consistency is foundational for achieving Maximum Brake Torque (MBT) timing cell-by-cell throughout the entire engine map.

Operational Benefits for Forced Induction Tuning

For builders using closed-loop boost control to manage high-output turbochargers, the 3 Bar GM sensor provides the stability required for a predictable power band. By delivering a stable and repeatable load signal, the ECU can accurately manage boost by gear, anti-lag strategies, and launch control maps. Furthermore, the kit includes the matching plug and pins, facilitating a professional harness integration that meets motorsport standards for weatherproofing and vibration resistance. This reliability ensures that the sensor signal remains pristine, preventing the rich/lean fueling errors associated with failing or low-resolution OEM sensors.

Installation and Integration Requirements

This 3 Bar sensor is a universal performance component compatible with any standalone ECU integration that supports a linear MAP sensor calibration. It is a direct physical fit for many GM manifold locations and can be adapted to any engine via a remote vacuum line. During installation, it is critical to ensure that the 5V reference and sensor ground wires are clean and free of EMI (Electromagnetic Interference). The sensor must be configured in the ECU software by selecting the standard 3-Bar GM calibration file to ensure the voltage-to-pressure mapping is correct. This hardware is a mandatory prerequisite for any builder seeking safe and powerful results on their boosted performance project.

Technical Specifications Table

Summary & Includes

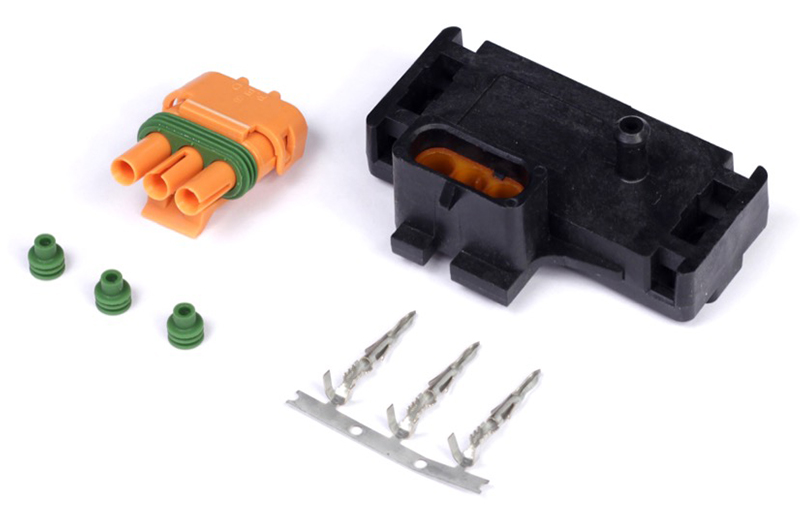

The 3 Bar GM MAP Sensor is the prerequisite for accurate manifold tracking in high-performance engines. Includes: 1 x 3 Bar Sensor and a Matching Plug/Pins set. Note: ECU recalibration is mandatory after installation to ensure accurate air-mass calculations.
