7 Bar “TI” MAP Sensor Thread: 1/8 NPT

Extreme Induction Dominance: 7 Bar “TI” MAP Sensor

For ultra-high-performance drag and land-speed engines, traditional MAP sensors reach their mechanical limit long before the engine does. The 7 Bar “TI” MAP Sensor is a high-end instrument capable of measuring absolute manifold pressure up to 7 bar (approximately 88 PSI of boost). Featuring a standard 1/8 NPT thread and a media-isolated sensing element, this sensor is the professional choice for 2000+ HP 2JZ, RB26, and LS-swap builds. Integrating this “TI” series sensor into your standalone ECU integration is mandatory for maintaining detonation protection at extreme boost levels where timing and fueling errors are catastrophic.

Engineering Principles: Media-Isolated High-Pressure Logic

The “TI” designation signifies a sensor built for the most aggressive induction environments. It utilizes a stainless steel diaphragm to isolate the sensitive electronics from hot manifold air and fuel vapors. This Analogue-to-Digital interface provides your Haltech Nexus or Elite with a pristine 0-5V signal, delivered with microsecond accuracy. In a fuel map calibration scenario for a high-boost engine, this resolution allows the ECU to maintain a perfect Air-Fuel Ratio (AFR) by identifying pressure spikes instantly. Every sensor is individually electronically tested to ensure it maintains its calibrated accuracy under the extreme pressure pulses of a racing intake tract.

Operational Benefits: Ultimate Control for the outer limits

The primary benefit of the 7-bar sensor is its massive range, which eliminates the “load pegging” that occurs with smaller sensors. For builders using closed-loop boost control to push a large frame turbocharger to its limit, this sensor provides the necessary data for advanced torque management and traction control. Additionally, the kit includes matching plug and pins, along with -4 AN & 5mm hosetail adaptors, allowing for a professional and modular harness integration. The deterministic pressure signal is compatible with the iC-7 Digital Display, providing the driver with trustworthy data at the edge of performance.

Installation and Critical Remote Mounting

A mandatory Note for this sensor: “TI” MAP sensors must not be mounted directly to the inlet manifold. To ensure survival and signal stability, they must be remote mounted and connected via a flexible hose (such as HT-039103). This isolation protects the sensing element from engine-block vibrations that can cause mechanical failure and signal noise. For harness integration, the use of the included Delphi plug and pins ensures a weatherproof electrical connection. Calibration scaling is standard in Haltech software, allowing for a fast and reliable system setup.

Technical Specifications Table

Summary & Includes

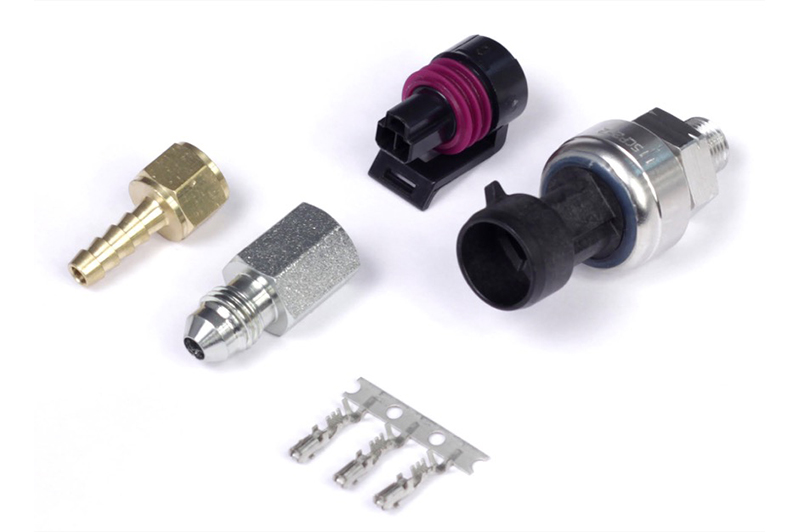

The 7 Bar “TI” MAP Sensor is the ultimate data node for extreme boost applications. Includes: 1 x 7 Bar Sensor, Matching Plug/Pins, -4 AN and 5mm Adaptors. Note: Remote mounting is mandatory to ensure sensor survival in competition environments.
