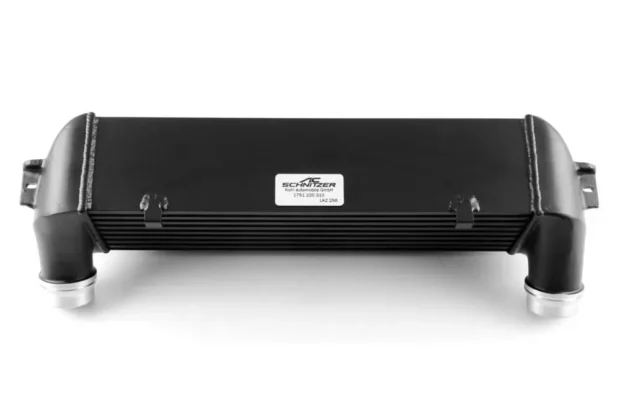

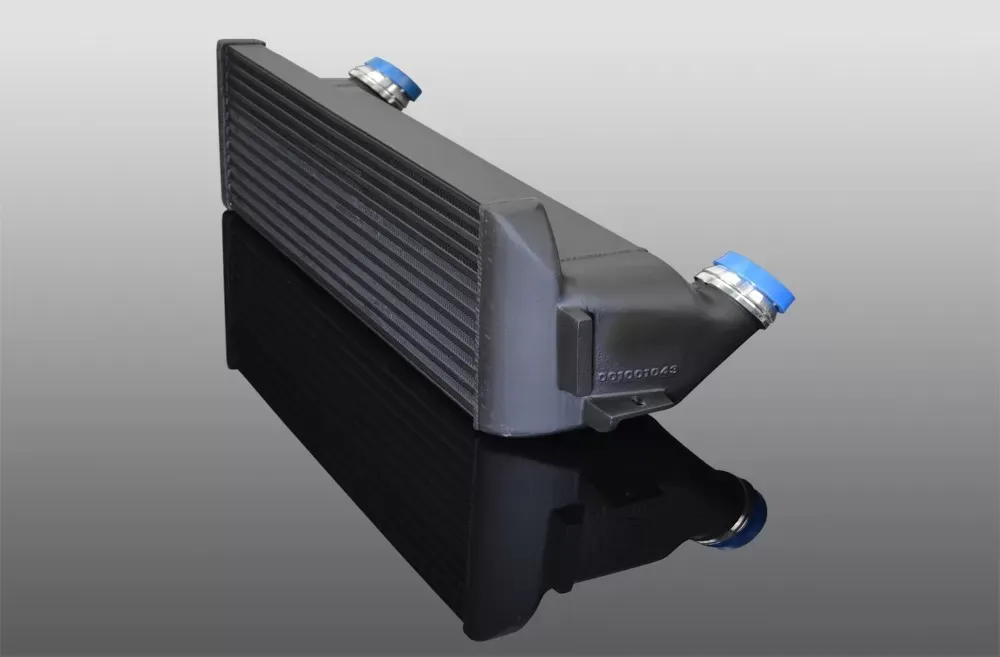

AC Schnitzer Step 1 Air Intercooler BMW F2x | F3x

The AC Schnitzer charge air cooler lowers the high temperature of the intake air resulting from the charging, thus ensuring better filling of the combustion chamber. Since cooler air contains more oxygen than hot air at the same volume, the AC Schnitzer high-performance charge air cooler supplies more oxygen to the combustion chamber. This results in more stable engine performance and higher torque.

An 80% larger air intake area and over 60% more charge air volume – the AC Schnitzer high-performance charge air cooler offers noticeable advantages over the standard charge air cooler due to its size and its stepped design. Excellent cooling properties are achieved with the high-performance network. This innovative development is a guarantee for a lasting and homogeneous power development of the engine. Even at high outside temperatures, the engine power remains noticeably more stable.

In addition, the lower temperatures during the combustion process provide further advantages: the engine has a lower tendency to knock and the thermal load on the pistons is also reduced. This increases the service life of the motor.

Features:

• Structure: stepped, performance high-performance network
• Material: cast aluminium
• Processing: CAD-based simulations and optimizations
• 80% larger flow area
• 60% more charge air volume
• Flow rate AC Schnitzer: 197 l/s at 175 mbar
• Flow rate OEM: 158 l/s at 175 mbar
• Charge air volume AC Schnitzer: 11.7 litres
• Charge air volume OEM: 7.3 liters
• Made in Germany

Fitment:

• BMW F20|F21 116i, 118i, 125i, M135i, M135i xDrive, 116d, 118d, 118d xDrive, 120d, 120d xDrive, 125d
• BMW F22|F23 220i with engine N20, 228i, M235i, M235i xDrive ,218d, 220d, 225d
• BMW F34 320i, 320i xDrive with engine N20, 328i, 328i xDrive, 335i, 335i xDrive, 320d, 320d xDrive, 325d, 330d, 330d xDrive, 335d xDrive
• BMW F30|F31 316i, 320i, 320i xDrive with engine N20, 328i, 328i xDrive, 335i, 335i xDrive, 316d, 318d, 318d xDrive, 320d, 320d xDrive, 325d, 330d, 330d xDrive, 335d xDrive
• BMW F32|F33|F36 420i, 420i xDrive with engine N20, 428i, 428i xDrive, 435i, 435i xDrive, 420d, 420d xDrive, 425d, 430d, 430d xDrive, 435d xDrive
