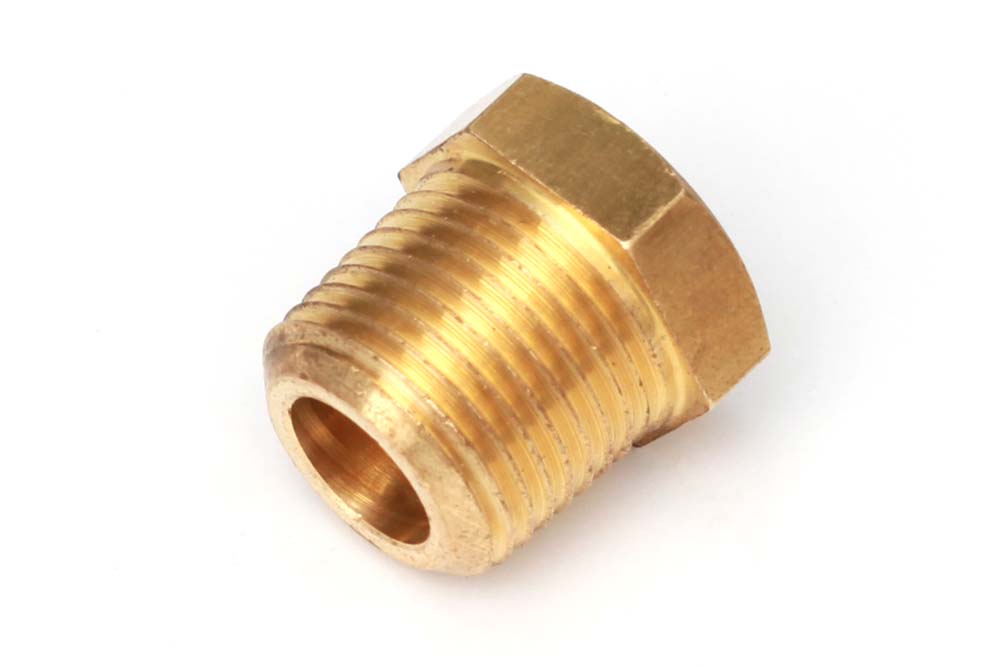

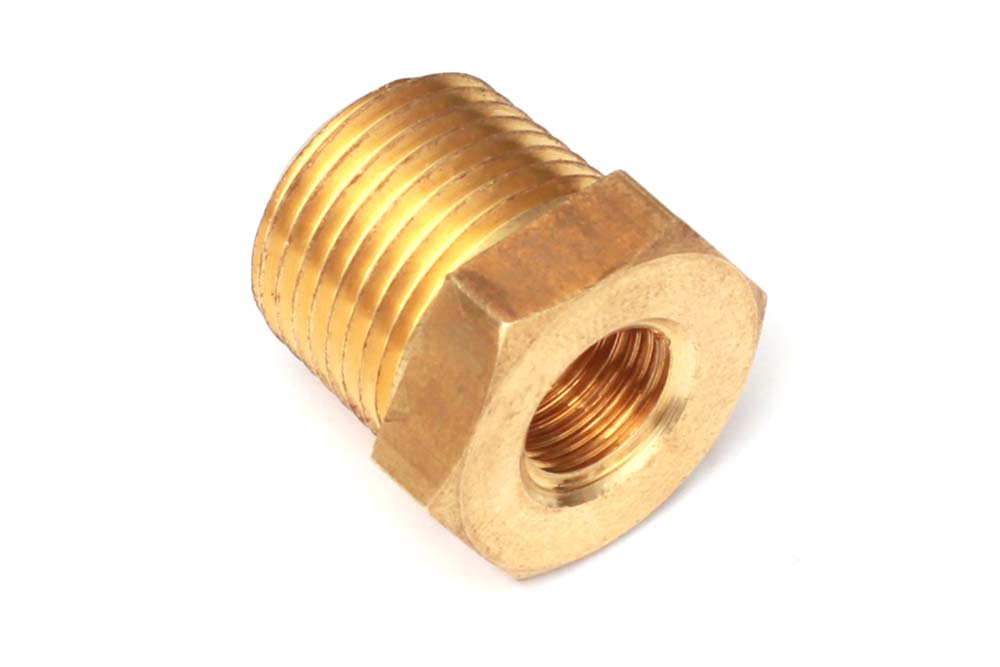

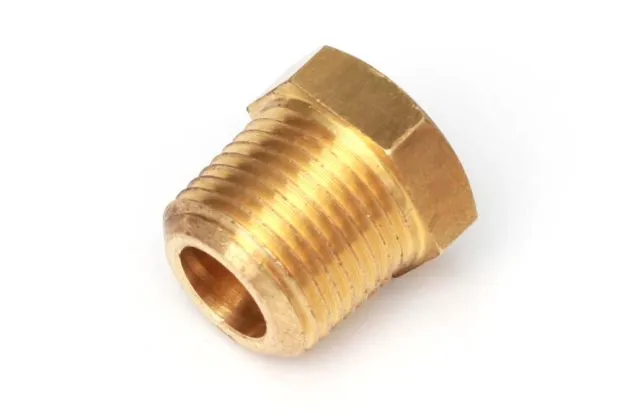

Adaptor – Brass 1/8″ NPTF to 3/8″ NPTF Length: 20mm

Precision Plumbing Interface: Brass 1/8″ NPTF to 3/8″ NPTF Adapter

Interfacing multiple sensor standards often requires a reliable bridge between thread sizes. The Adaptor – Brass 1/8″ NPTF to 3/8″ NPTF is a precision-engineered 20mm component designed to facilitate the installation of 1/8″ NPT sensors into larger 3/8″ NPT ports. Manufactured from high-density brass, this adapter provides the structural integrity and leak-proof sealing required for oil, fuel, and coolant systems. It is an essential component for harness integration on LS-swap or 2JZ builds where aftermarket sensors must be fitted to factory engine blocks or intake manifolds.

Engineering Principles: NPTF Pressure Integrity

The NPTF (National Pipe Thread Fuel) standard is an evolution of standard NPT, designed to provide a Dryseal connection. Unlike standard pipe threads that can leak without heavy sealant, NPTF threads are engineered to create a metal-to-metal seal through thread interference. This 20mm brass adapter ensures that your oil pressure or coolant temp sensors are mounted with zero chance of leakage under high manifold or oil gallery pressures. Brass was chosen for its excellent thermal conductivity and resistance to the corrosion associated with ethylene glycol and automotive oils, making it a favorite for standalone ECU integration projects.

Operational Benefits for Powder and Fluid Management

Using this 1/8″ to 3/8″ adapter allows the builder to utilize the full range of high-performance sensors without being limited by factory port sizes. In a fuel map calibration scenario, having an accurate and stable sensor mounting point is vital for maintaining detonation protection. If a sensor mount is loose or leaky, the Analogue-to-Digital interface can provide erratic data, leading to incorrect timing adjustments. This brass adapter provides a deterministic mechanical ground for the sensor, ensuring that your data logging and dashboard displays on systems like the iC-7 Digital Display remain stable and trustworthy during extreme track use.

Installation and Component Requirements

This adapter is suits 1/8″ NPT Sensors and provides a 3/8″ NPT male thread for engine-side installation. The kit includes the adapter only. For a professional result, Haltech recommends a tightening torque of 1.5 – 3 TPFT (Turns Past Finger Tight). It is essential to use a high-quality thread sealant or PTFE paste to ensure absolute integrity, especially in fuel systems. The compact 20mm length ensures minimal protrusion into fluid galleries, which is critical for maintaining laminar flow in high-performance oiling or cooling systems. It is fully compatible with Haltech’s range of temperature and pressure sensors.

Technical Specifications Table

Summary & Includes

The 1/8″ to 3/8″ NPTF Brass Adapter is the professional tool for cross-standard sensor mounting. Includes: 1 x Brass Thread Adapter. Note: Designed for use in fuel and oil systems requiring a Dryseal interface. Always check port sizes before installation.
