Air Temp Sensor Thread: 1/4 NPT

Induction Thermal Sentinel: 1/4 NPT Intake Air Temp Sensor

In high-performance forced induction systems, accurately measuring the air temperature post-intercooler is vital for engine safety. The Air Temp Sensor with 1/4 NPT thread is a precision NTC thermistor engineered to provide the high-speed data necessary for closed-loop boost control and fueling corrections. Specifically used on Nissan Z32 300ZX intake systems and universal 2JZ or RB26 custom manifolds, this sensor ensures your standalone ECU integration can react to heat soak and compressor inefficiency in milliseconds. A precise IAT reading is the primary variable in the speed-density equation, making this sensor a foundation of accurate fuel map calibration.

Engineering Principles: Rapid Response and Thread Reliability

The sensor utilize a high-fidelity thermistor element housed in a protective yet high-conductivity probe. As air moves across the tip, the electrical resistance changes, sending a 0-5V signal to the ECU. This Analogue-to-Digital interface allows the ECU to identify when intake temps are rising into the “danger zone,” triggering detonation protection maps that retard timing or add fuel enrichment. The 1/4 NPT thread is a calculated design choice, providing a more robust mechanical seal than smaller 1/8 NPT sensors in high-vibration intake tracts or plastic manifolds where a coarser thread provides better retention. The sensor has a maximum reading of 127°C (260°F), covering the full spectrum of high-boost charge temperatures.

Operational Benefits for Turbocharged Platforms

For engines like the Nissan 300ZX or turbocharged K-swap cars, heat soak is a constant threat to power consistency. By integrating this 1/4 NPT sensor into a Haltech Elite or Nexus system, the tuner can set “Safety Limiter” tables. If IATs exceed a safe threshold during a pull, the ECU can instantly drop the target boost to prevent pre-ignition. Furthermore, the accuracy of this sensor allows for more aggressive timing maps when intake temps are low, maximizing Maximum Brake Torque (MBT) timing. The inclusion of the matching Delphi plug and pins ensures that the harness integration is professional and free of the signal noise common in poor-quality wiring.

Fitment and Integration Strategy

While this sensor suits Nissan Z32 300ZX intake manifolds natively, it is also a universal choice for custom aluminum or sheet-metal intake manifolds. During installation, the sensor should be mounted as close to the throttle body as possible to capture the air temperature actually entering the cylinders. It requires a 1/4 NPT tapped port and should be installed with a minimal amount of thread sealant to ensure absolute pressure integrity under boost. The 2-wire interface is compatible with all modern engine management systems, and calibration is standard in Haltech software, making the integration process straightforward and reliable.

Technical Specifications Table

Summary & Includes

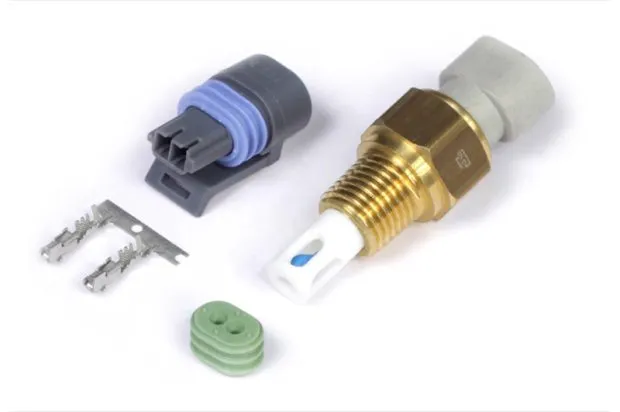

The 1/4 NPT Air Temp Sensor is a foundational tool for charge temperature management. Includes: 1 x 1/4 NPT Air Temp Sensor and a Matching Delphi Plug/Pins set. Note: Calibrated for professional standalone engine management; verify scaling in software during initial setup.
