Air Temp Sensor Thread: 1/8 NPT

Charge Density Management: 1/8 NPT Air Temperature Sensor

The 1/8 NPT Air Temp Sensor is the most widely utilized thermal sensing instrument in the aftermarket tuning industry. Small, responsive, and easy to package, this sensor is a mandatory component for any standalone ECU integration project. Whether you are daily driving a turbocharged K-swap or racing a high-power LS-swap, the IAT signal provides the ECU with the ability to calculate air density and adjust fueling in real-time. This sensor is the critical data source for maintaining a stable Air-Fuel Ratio (AFR) across varying climates and altitudes, forming the core of a reliable fuel map calibration strategy.

Engineering Principles: NTC Sensitivity and Thread Packability

This sensor utilizes an optimized NTC (Negative Temperature Coefficient) thermistor element designed for rapid thermal exchange. This Analogue-to-Digital interface allows the ECU to process temperature data with a maximum reading of 127°C (260°F). The 1/8 NPT thread is the industry standard for auxiliary sensor ports, allowing for easy installation into aluminum intake pipes, intercooler end-tanks, or custom bungs. The sensor’s construction focuses on signal stability; by using a high-resolution thermistor curve, the ECU can discern minute temperature changes, which is vital for fine-tuning closed-loop boost control maps and preventing engine damage through detonation protection logic.

Operational Benefits for Track and Performance

Integrating a 1/8 NPT Air Temp Sensor with a Haltech Nexus or Elite ECU allows for “IAT Correction” tables to be fully utilized. When the sensor detects high intake temperatures—often seen in heavy traffic or prolonged track sessions—the ECU can proactively retard Ignition Timing to compensate for the increased sensitivity to knock. This is a primary safety mechanism for 2JZ and Rotary engines. Additionally, the kit includes a matching male Deutsch DTM-2 Connector (HT-031000), providing a motorsport-grade electrical interface that is weatherproof and resistant to the high-frequency vibrations found in competition engines.

Installation and Harness Integration

The 1/8 NPT sensor is a universal fit for any manifold with a matching port. For best results, the sensor tip should be positioned directly in the center of the air stream. During harness integration, the use of the included DTM-2 connector ensures that the 5V reference and signal ground wires are secure and isolated from EMI (Electromagnetic Interference). It is compatible with all modern standalone engine management platforms. During software setup, simply select the Haltech Air Temp calibration file to ensure the voltage-to-temperature mapping is accurate. This sensor is the definitive choice for builders who demand a compact and reliable thermal reference.

Technical Specifications Table

Summary & Includes

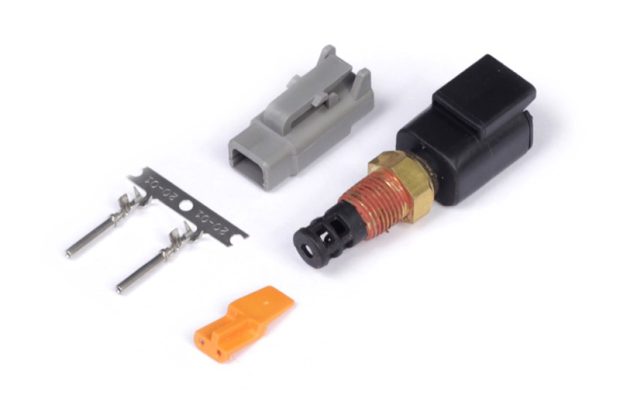

The 1/8 NPT Air Temp Sensor is the foundational instrument for accurate induction air measurement. Includes: 1 x 1/8 NPT Air Temp Sensor and 1 x Matching male Deutsch DTM-2 Connector. Note: Ensure sensor is mounted away from the block to prevent false high readings from engine heat soak.
