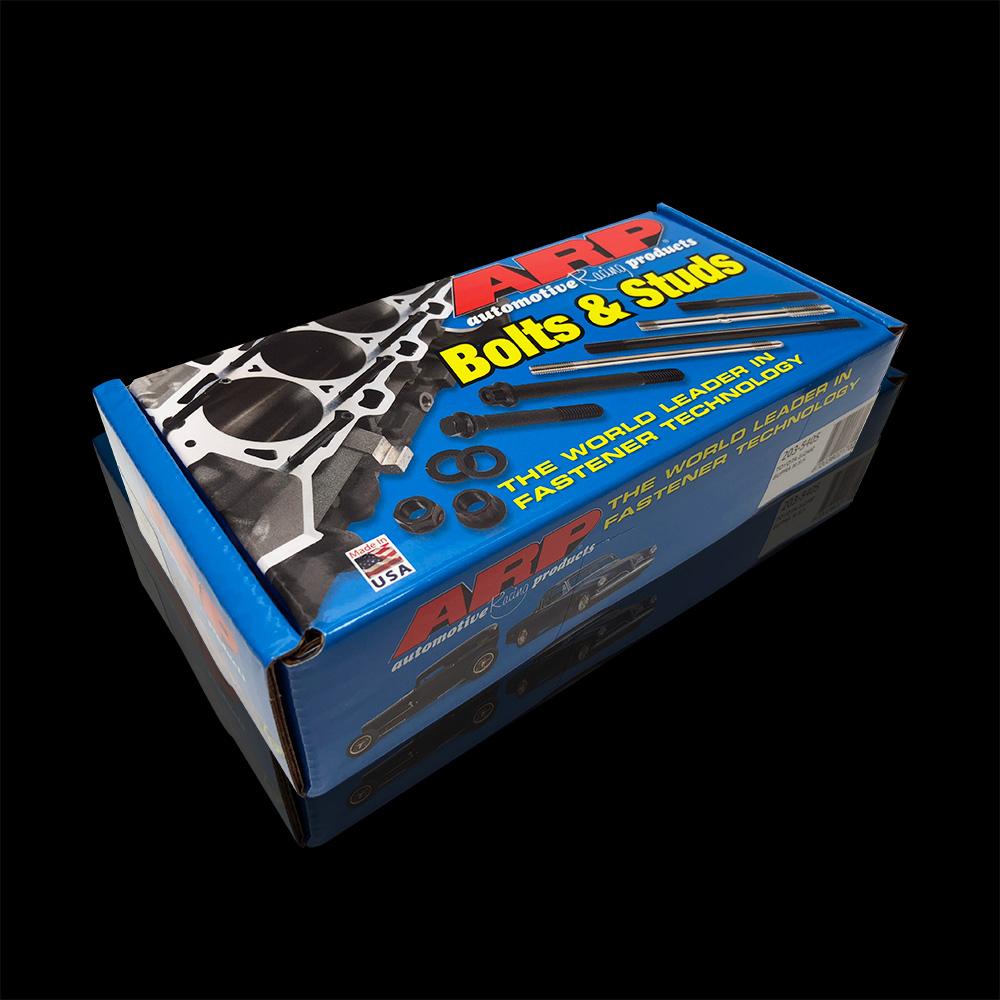

AR8614 – Mitsubishi 4G63 2nd Gen/Evo ARP Head Studs – Custom Age 625+

In the high-stakes environment of forced induction, particularly within the legendary Mitsubishi 4G63 platform, the cylinder head seal is the critical frontier separating reliable, explosive power from catastrophic failure. The factory torque-to-yield head bolts represent a single-use, calculated weak point engineered for cost and assembly line efficiency, not for the sustained cylinder pressures of a modified, high-output build. The ARP 8614 Head Stud Kit is not merely an upgrade; it is a foundational re-engineering of this clamping system. Designed explicitly for the 2nd Generation 4G63 (1994-1999) and all Evolution I-IX models, this kit transitions the engine from a flexing, dynamic joint to a rigid, monolithic structure. Utilizing ARP’s proprietary Custom Age 625+ alloy—a material whose credentials are forged in aerospace and top-fuel drag racing—these studs provide an unparalleled combination of tensile strength, fatigue resistance, and thermal stability. This analysis will dissect the metallurgical advantages, precise installation protocol, and definitive performance benefits that establish the ARP 8614 as the non-negotiable standard for any serious 4G63 build targeting reliability beyond 500+ horsepower.

The Metallurgical Edge: Custom Age 625+ Explained

Understanding the ARP 8614’s superiority begins at the atomic level with its core material: Custom Age 625+. This is not a generic “aircraft-grade” steel but a nickel-chromium superalloy specifically developed for environments where high tensile load, extreme heat, and corrosive atmospheres converge. Compared to standard 8740 chromoly steel (used in many entry-level ARP kits) or the questionable provenance of some competitors’ materials, 625+ operates on a different plane. Its yield strength exceeds 180,000 psi, and it maintains this strength at temperatures where other alloys begin to rapidly anneal and soften. For a turbocharged 4G63, where exhaust manifold and cylinder head temperatures can routinely exceed 900°F, this thermal stability is paramount. The “Custom Age” process refers to a precise, computer-controlled aging heat treatment that optimizes the alloy’s grain structure, eliminating internal stresses and creating a component with near-perfect uniformity. This results in a stud that stretches predictably within its elastic limit during torquing, creating a consistent clamp load that does not relax under thermal cycling—the primary cause of head gasket failure in stressed engines.

Precision Installation & Torque Sequencing

The performance of any head stud is only as good as its installation. The ARP 8614 kit demands a methodological approach distinct from factory bolt procedures. First, the block’s blind holes must be thoroughly cleaned and chased with a M12 x 1.5 mm tap to remove any debris, old thread locker, or minor corrosion that could affect torque accuracy. ARP’s ultra-fine, rolled threads provide a superior fit and load distribution compared to cut threads. Crucially, these studs are installed finger-tight into the bare block. They are not used to pull the head down; the head and gasket are placed over the studs, followed by the washers and nuts. Torque is applied in three progressive stages using a high-quality, calibrated torque wrench and ARP’s specified moly lubricant (included), which reduces friction variance by up to 40% compared to engine oil. A typical final torque spec for these studs with the supplied lubricant is 85-90 ft/lbs, but the sequence is as critical as the value. Following ARP’s recommended spiral pattern from the center out ensures the head gasket compresses evenly, eliminating distortion and establishing a perfect seal. For engineers seeking a deeper understanding of clamp load theory and why torque-to-yield is inferior, resources like Engine Builder Magazine’s technical archives provide excellent foundational reading.

Definitive Benefits Over OEM and Competitor Solutions

• Eliminates Head Lift: The immense clamp load and material strength prevent the cylinder head from separating from the block under extreme combustion pressure, the root cause of head gasket failure in high-boost applications.
• Superior Thermal & Fatigue Resistance: Custom Age 625+ maintains its mechanical properties at sustained high temperatures, preventing clamp load relaxation during extended high-RPM or high-load operation.
• Reusability & Consistency: Unlike one-time-use OEM TTY bolts, ARP studs can be removed and retorqued multiple times without any loss of integrity, essential for engine building, maintenance, or head upgrades.
• Optimized for MLS Gaskets: Provides the high, stable clamp load required by Multi-Layer Steel head gaskets, which are necessary for most high-horsepower 4G63 builds, ensuring a permanent seal.
• Direct, No-Modification Fitment: Engineered as a direct replacement for OEM bolts, requiring no machining of the block or cylinder head, unlike some inferior kits that may require clearance drilling.

Vehicle Fitment: Precision Application for the 4G63 Lineage

The ARP 8614 is specifically designed for a targeted range of engines where the cylinder head and block casting configurations are compatible. This is not a universal kit. Correct application is critical.

Primary Fitment:
Mitsubishi 4G63 (DOHC) 2.0L Turbo, 2nd Generation (1994-1999). This includes applications in the Eclipse GS-T, Eagle Talon TSi, and Galant VR-4.
Mitsubishi Lancer Evolution I, II, III, IV, V, VI, VII, VIII, IX (All years and models).

Note on 1st Gen (6-bolt) Engines: The ARP 8614 is NOT compatible with the 1st Generation (1990-1992.5) 4G63 “6-bolt” engine. Those engines require the specific ARP part number 207-4201. Attempting to use the 8614 on a 6-bolt block will result in incorrect thread engagement and potential failure.

Head Gasket Compatibility: These studs are designed to work with both composite OEM-style gaskets and aftermarket MLS (Multi-Layer Steel) gaskets from brands like Cometic or OEM Mitsubishi. When using an MLS gasket, ensuring a superior surface finish on the head and block deck is even more critical to achieve a proper seal with the immense clamp load provided.

Technical Specifications: ARP 8614 Kit

In conclusion, for the builder pushing the limits of the 4G63 platform, component selection cannot be based on cost or marketing claims. It must be grounded in material science and proven performance. The ARP 8614 Head Stud Kit, with its Custom Age 625+ construction, represents the absolute pinnacle of fastener technology for this application. It solves the fundamental clamping force problem inherent in high-performance turbocharged engines, transforming a potential failure point into one of absolute strength. When paired with proper machining, a quality MLS gasket, and precise installation technique, these studs create an immutable foundation, allowing the focus to remain on tuning, turbo selection, and power delivery—secure in the knowledge that the cylinder head seal is unequivocally mastered.
