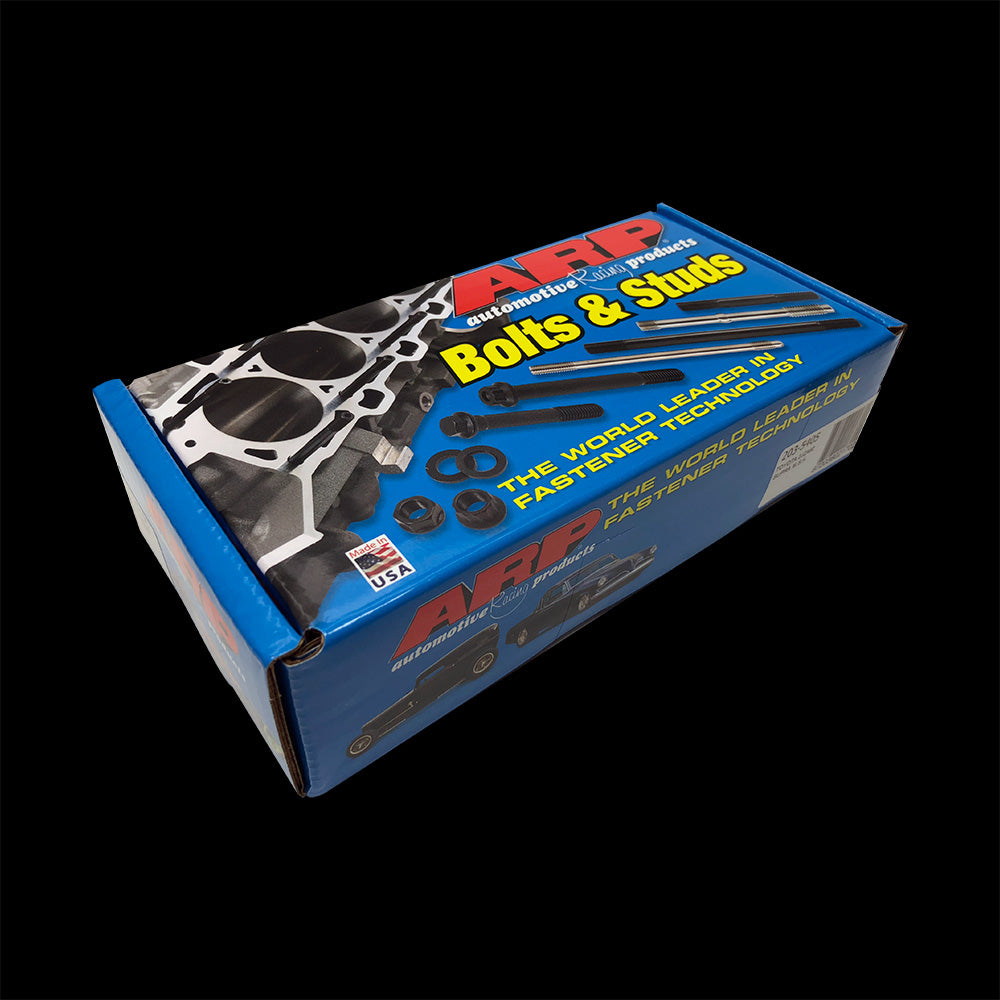

ARP 8691 Custom Age 625+ Head Stud Kit for Polaris RZR XP Turbo & XP 1000

In the high-stakes realm of forced induction and elevated compression, the cylinder head fastener is the linchpin of engine integrity. The ARP 8691 Custom Age 625+ Head Stud Kit represents the absolute pinnacle of fastener engineering for the modern Polaris RZR powerhouse. Engineered specifically for the demanding environments of the Polaris XP Turbo (2016-up) and XP 1000 (2014-up) platforms, this kit transcends the limitations of OEM torque-to-yield bolts and standard aftermarket studs. It is not merely an upgrade; it is a fundamental re-engineering of the clamping foundation, utilizing ARP’s proprietary Custom Age 625+ super-alloy to deliver unparalleled tensile strength, fatigue resistance, and thermal stability. For the builder seeking maximum cylinder head stability under boost, for the competitor eliminating variables for reliability, or for the enthusiast demanding the definitive solution to head gasket integrity, the AR8691 is the definitive component. This kit embodies the principle that true performance is built from the foundation up, ensuring the formidable power of your ProStar 1000 engine is fully harnessed and contained.

The Critical Failure Point: OEM Fasteners in Performance Applications

OEM cylinder head bolts are engineered to a cost and specification threshold suitable for factory output and warranty periods. They are typically torque-to-yield (TTY) fasteners, meaning they are intentionally stretched past their elastic limit during installation to achieve a clamping load. This is a one-time use design that sacrifices material integrity for assembly line consistency. Under stock conditions, this system is adequate. However, introduce modifications like increased boost pressure, higher compression pistons, aggressive tuning, or sustained high-RPM operation, and this becomes the primary failure path. The elevated cylinder pressures and intense thermal cycles cause the already-compromised TTY bolts to relax further, leading to a catastrophic loss of clamp load. This results in head gasket failure, combustion gas intrusion into the cooling system, coolant contamination of the cylinders, and ultimately, catastrophic engine damage. The ARP 8691 kit addresses this by replacing these disposable tensioners with permanent, reusable studs manufactured from a material with a significantly higher yield strength, creating a rigid, stable foundation that maintains clamping force where OEM designs falter.

Material Science: The Custom Age 625+ Super-Alloy Advantage

The core of the AR8691’s superiority lies in its metallurgy. ARP’s proprietary Custom Age 625+ is a nickel-chromium-molybdenum super-alloy that sets the global benchmark for high-performance fasteners. Its properties are not an incremental improvement but a generational leap over standard 8740 chromoly steel or even premium 2000-series alloys. The key characteristics that define its application in high-stress engines include:

• Extreme Tensile Strength: Boasting a minimum tensile strength of 260,000 psi, Custom Age 625+ provides a massive safety margin over the stresses generated in a high-output ProStar engine, effectively making head stud failure a non-issue.
• Exceptional Fatigue Resistance: This alloy exhibits superior resistance to cyclic loading, meaning it can withstand the constant pressure fluctuations from combustion and boost without gradually losing clamp load over time—a critical factor for engine longevity.
• Outstanding Thermal Stability: Custom Age 625+ retains its mechanical properties at temperatures that would cause conventional steels to anneal and soften. This is paramount in turbocharged applications where under-hood and head temperatures are drastically elevated.
• Superior Stress Corrosion Cracking Resistance: The alloy is highly resistant to corrosive attack from coolant and combustion byproducts, ensuring long-term integrity in a harsh chemical environment.

For a deep dive into the science behind high-performance fasteners, ARP’s own technical library provides an authoritative resource on fastener metallurgy and design.

Engineering Precision and Kit Completeness

ARP’s reputation is built on aerospace-level precision. Each stud in the 8691 kit is manufactured to tolerances measured in ten-thousandths of an inch, featuring rolled threads after heat treatment. This process creates a stronger, more uniform thread with superior fatigue life compared to cut threads. The kit is a complete, application-specific solution that includes:

• A full set of Custom Age 625+ studs, precisely sized for the Polaris ProStar engine block and head dimensions.
• High-quality, machined hardened steel washers to distribute the immense clamp load evenly across the cylinder head surface without galling or embedding.
• ARP’s legendary 12-point premium stainless steel nuts, designed for precise torque application and repeated use.
• ARP Ultra-Torque fastener lubricant, a critical component for achieving accurate and consistent clamp load. Using the supplied lubricant with ARP’s specified torque values is non-negotiable for proper installation.

This completeness ensures perfect fitment, eliminates the need to source additional components, and guarantees that every element of the clamping system is engineered to work in unison at the highest possible level.

Tangible Performance and Reliability Benefits

The installation of the ARP 8691 kit translates directly into measurable and reliable performance gains for your Polaris RZR:

• Eliminates Head Gasket Failure: Provides a stable, consistent clamping force that keeps the head gasket sealed under extreme cylinder pressures, effectively solving the most common failure point in modified engines.
• Enables Higher Boost and Compression: Creates the foundational strength necessary to safely contain the increased forces from turbo upgrades, pulley changes, and higher compression piston kits.
• Improves Cylinder Seal Consistency: A rigidly mounted head promotes more uniform sealing across all cylinders, contributing to optimized combustion and potentially more consistent power delivery.
• Facilitates Accurate Tuning: By removing cylinder head movement and seal variability as factors, the tuner can work with a more stable platform, allowing for more aggressive yet safe ignition and fuel maps.
• Reusability and Serviceability: Unlike TTY bolts, these studs can be installed and removed repeatedly without degradation, making engine service and inspection straightforward.

Vehicle Fitment: Application-Specific Engineering

The ARP 8691 kit is not a universal component; it is meticulously engineered for specific Polaris RZR models utilizing the 999cc ProStar twin-cylinder engine. Correct application is critical for proper thread engagement and clamp load geometry.

Primary Applications:

• Polaris RZR XP 1000: All model years from 2014 and up.
• Polaris RZR XP Turbo: All model years from 2016 and up.
• Polaris RZR XP Turbo S: Models utilizing the standard ProStar 1000 engine architecture.

Note: Always verify engine model and year before purchase. This kit is designed for the dry-sleeve ProStar engine architecture. It is the responsibility of the installer to confirm compatibility with their specific vehicle and any aftermarket engine configurations (e.g., big bore kits).

Technical Specifications

Final Verdict: The ARP 8691 Custom Age 625+ Head Stud Kit is the definitive insurance policy and enabling component for any serious Polaris RZR XP Turbo or XP 1000 build. It addresses the fundamental mechanical weakness of the platform under increased performance demands. By investing in this bedrock component, you are not just buying a set of studs; you are purchasing absolute cylinder head stability, enabling reliable power extraction and protecting a significant engine investment. For builds where failure is not an option, specify ARP.
