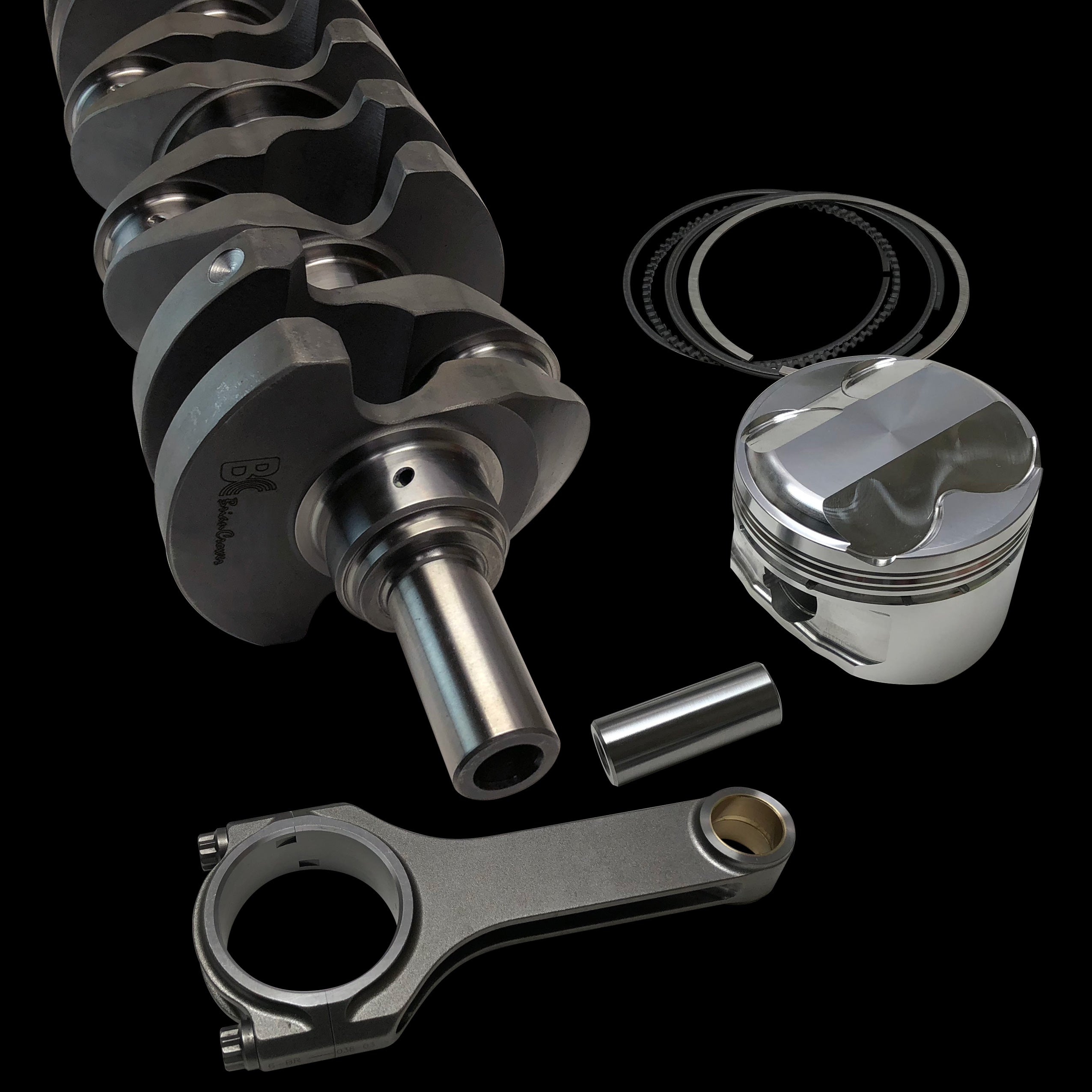

BC0027B – Honda B18/B20 Stroker Kit – 95mm Stroke Billet/ProH2K Long Rods (5.512″)

For the engine builder seeking not just displacement but uncompromised performance integrity, the Brian Crower BC0027B Stroker Kit represents a paradigm shift in Honda B-Series engine development. Moving beyond the limitations of overbore-centric strategies, this kit masterfully re-engineers the engine’s fundamental geometry with a commanding 95mm stroke, utilizing a purpose-built billet crankshaft and ProH2K long rods to achieve a superior 2.16L displacement. This is not a collection of parts; it is a cohesive system engineered for extreme duty, designed to transform your B18 or B20 block into a torque-rich, high-RPM powerhouse capable of sustaining immense cylinder pressures. Every component is the product of precision CNC machining, advanced metallurgy, and a deep understanding of Honda’s four-cylinder architecture, ensuring that the increase in stroke delivers genuine performance gains without sacrificing reliability or volumetric efficiency.

Core Engineering & System Synergy

The BC0027B’s superiority is rooted in its system-level design philosophy. Simply installing a long-stroke crank into a production block invites a host of compromising issues—insufficient rod angularity, poor piston skirt guidance, and compromised ring seal. Brian Crower engineers have solved these problems holistically. The 95mm stroke billet crankshaft is the cornerstone, manufactured from 4340 chromoly steel and precision counterweighted to manage the increased inertial forces. This is paired with the critical component: ProH2K long connecting rods measuring 5.512 inches. This specific rod length is not arbitrary; it is calculated to optimize the rod-to-stroke ratio, mitigating the negative effects of increased piston acceleration and deceleration. This preserves piston stability within the cylinder bore, a non-negotiable factor for maintaining ring seal under boost or high-compression loads. The custom forged pistons complete the assembly, with valve reliefs, pin height, and ring lands specifically configured for this unique stroke/rod combination, ensuring perfect deck clearance and optimal quench.

The Critical Role of the ProH2K Long Rod (5.512″)

The ProH2K rod is the linchpin that unlocks the potential of the 95mm stroke. A longer rod reduces the maximum piston speed for a given stroke and RPM, which decreases side-loading forces on the cylinder wall. This results in reduced friction, less wear, and improved ring seal longevity. Furthermore, a favorable rod ratio contributes to more efficient cylinder filling by slightly altering the piston’s dwell time at top dead center. For builders focused on high-RPM naturally aspirated or forced induction applications, this geometry helps maintain volumetric efficiency where shorter-rod setups fall off. The rods themselves are CNC-machined from 4340 chromoly steel, feature ARP 2000 cap screws as standard, and undergo a proprietary heat-treating process (ProH2K) for ultimate tensile strength and fatigue resistance. This combination allows the engine to safely explore a broader, more powerful RPM range. For a deeper technical dive into the effects of stroke and rod ratio on engine dynamics, refer to this authoritative resource on engine rod ratio and piston speed fundamentals.

Performance Benefits & Application Advantages

Integrating the BC0027B kit fundamentally alters your engine’s performance profile. The 95mm stroke provides an immediate and substantial increase in displacement, which translates directly to a broader, flatter torque curve. This means more area under the curve—usable power that makes the vehicle respond quicker off-corner, reduce turbo lag, or simply deliver more forceful acceleration throughout the rev range. The system’s inherent stability allows it to excel under extreme conditions.

• Massive Displacement Gain: Achieve a true 2.16 liters from your B-series block, providing a foundational increase in torque and horsepower potential far beyond simple overboring.
• Optimized Engine Geometry: The calculated 95mm stroke with 5.512″ rods creates a mechanically superior setup that reduces parasitic friction and improves piston control for enhanced durability.
• Superior Forced Induction Foundation: The robust billet crank, forged pistons, and premium rods are engineered to withstand the punishing cylinder pressures of high-boost turbo or supercharged applications.
• High-RPM N/A Competency: Unlike poorly conceived stroker kits, this system’s attention to balance and rod ratio maintains stability and volumetric efficiency at elevated RPMs, perfect for all-motor builds.
• Unmatched Component Quality: From the 4340 billet crank to the ProH2K treated rods, every element meets professional racing standards, ensuring reliability that matches the performance output.

Technical Specifications & Component Details

Precision is quantified. Below are the exact specifications that define the BC0027B kit. These figures are critical for engine builders performing clearance checks, calculating compression, and planning the complete assembly.

*Note: Professional engine builds require piston rings to be perfectly matched to the final honed cylinder bore diameter; thus, they are typically sourced separately.

Vehicle Fitment & Installation Requirements

The BC0027B kit is designed as a core upgrade for specific Honda B-series engines. Proper installation is mandatory and requires extensive machine work and expert assembly. This is not a bolt-in kit.

Compatible Engine Blocks:

Primary Applications: Honda B18C1, B18C5 (Integra GSR, Type R), B18B1, B18A (Integra LS/RS), and B20B/Z (CR-V). The block must be in excellent condition, with a thorough inspection for core integrity.

Mandatory Machining & Clearance Steps:

1. Block Inspection & Boring: The block must be bored and honed to the target diameter (commonly 84mm or larger) with perfect bore alignment and surface finish for the forged pistons.
2. Rod Bolt Clearancing: The block’s cylinder skirts will almost certainly require notching (clearancing) to accommodate the larger stroke and rod bolt heads. This is a precise machining operation.
3. Crankshaft Balancing: The entire rotating assembly—crank, rods, pistons, and flywheel/damper—must be dynamically balanced as a unit. The billet crank is prepared for this but is not pre-balanced to your specific components.
4. Piston-to-Valve & Deck Clearance: Final clearance checks are non-negotiable. This includes verifying piston-to-valve clearance with your chosen camshafts and head gasket thickness, and setting the correct deck height.

Required Supporting Components:

To complete the build, you will need corresponding bearings (main and rod), piston rings, a high-capacity oil pump (BC or OEM), a robust head gasket, appropriate fasteners, and a compatible cylinder head and valvetrain setup capable of supporting the increased displacement and target RPM.
