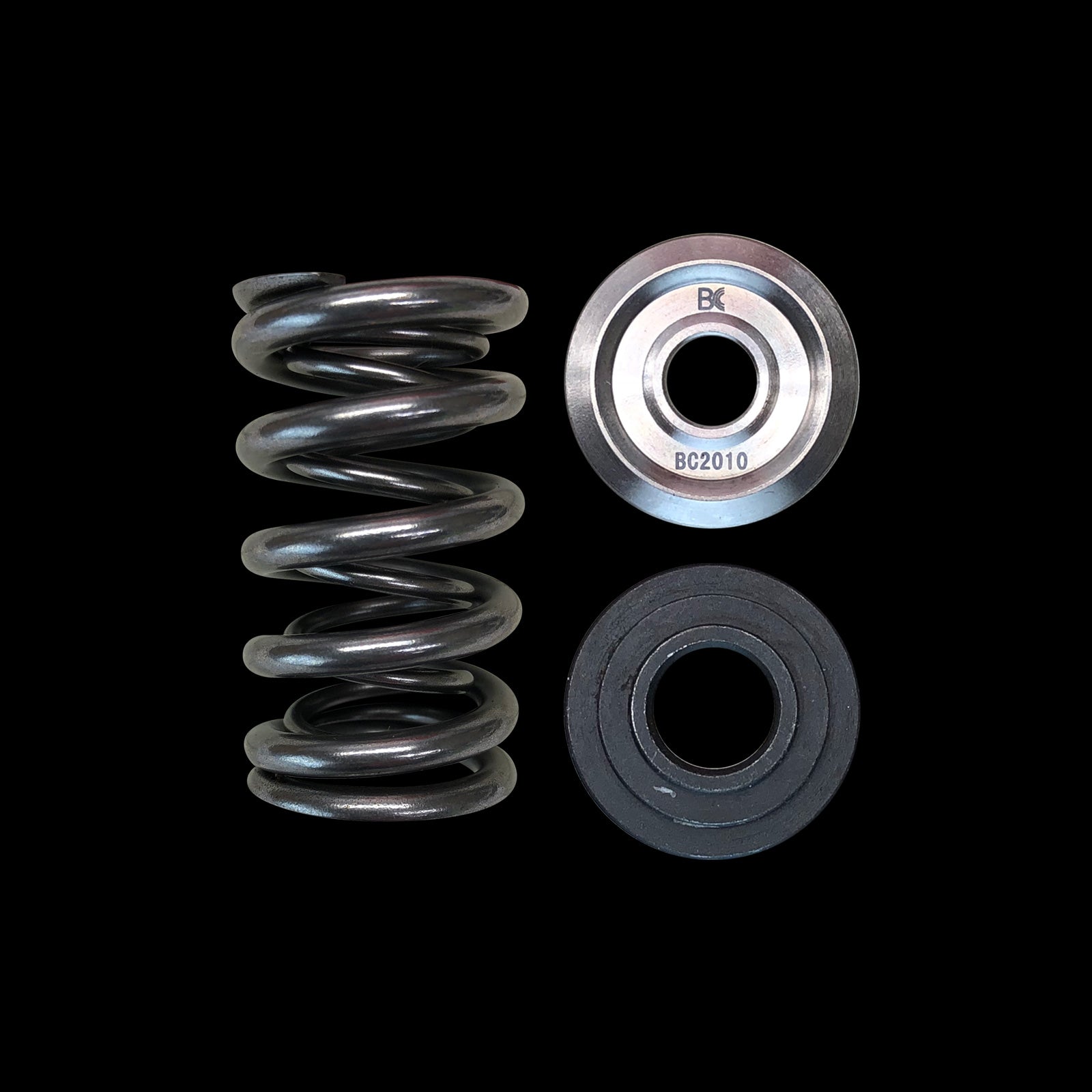

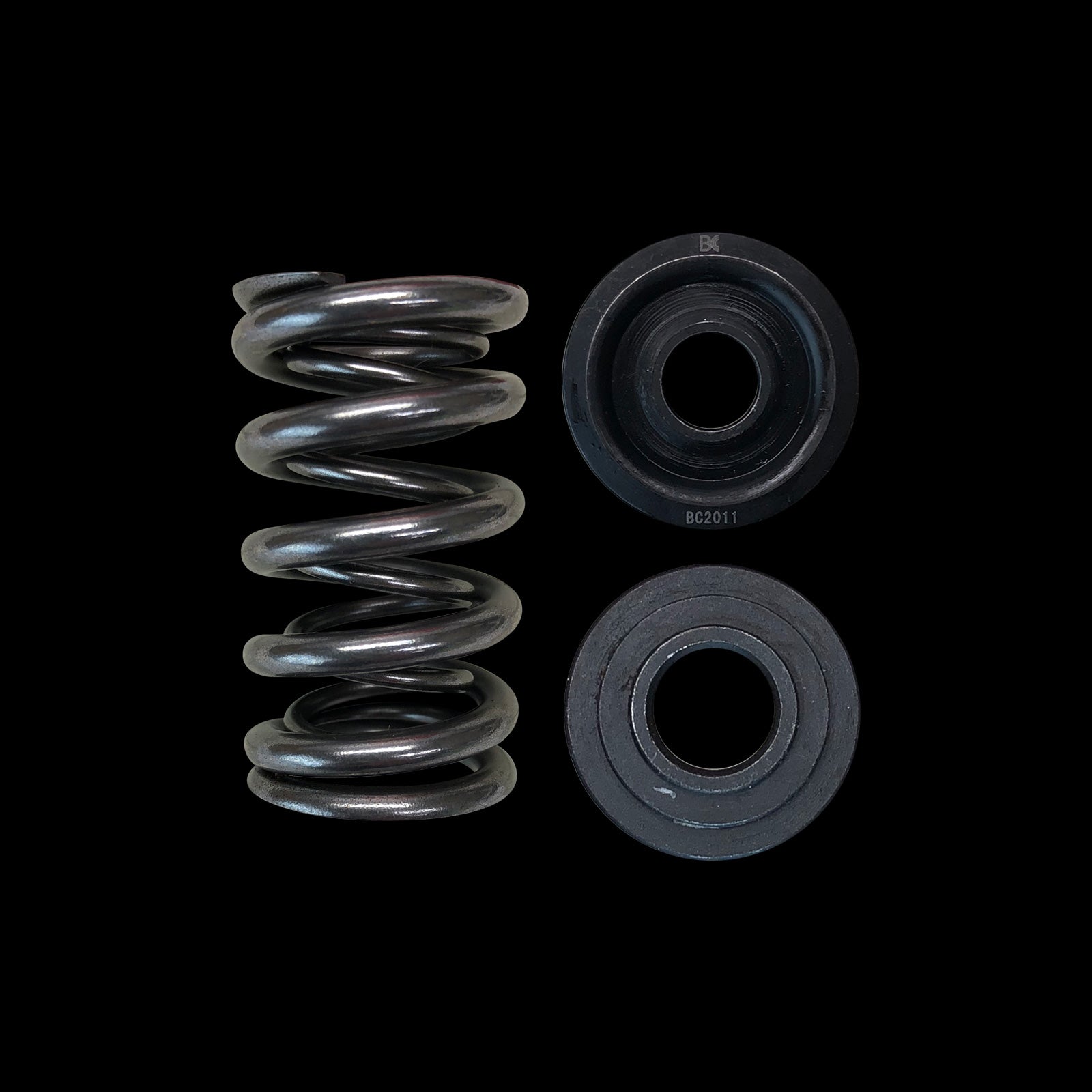

BC0040T – Honda K20A/K20Z Spring/Titanium Retainer/Seat Kit (High Lift)

Engineering Dominance for the High-Revving K20: The Brian Crower BC0040T Spring & Retainer Kit

In the universe of performance Honda engines, the K20A and K20Z series stand as paragons of high-RPM, naturally aspirated potential. However, pushing these engines beyond their factory-designed limits—whether for aggressive camshaft profiles, forced induction, or sustained track-day abuse—places immense stress on the valvetrain’s most critical safety component: the valve springs. The factory springs, while excellent for OEM use, become the weak link, leading to valve float, lost power, and catastrophic engine failure. The Brian Crower BC0040T Spring/Titanium Retainer/Seat Kit is not an upgrade; it is a fundamental re-engineering of the K20 valvetrain’s core dynamics. Engineered for master builders and discerning enthusiasts, this kit delivers the absolute margin of safety and performance needed to unleash the full, reliable potential of a built K20. It transforms the valvetrain from a system operating at its limit to one operating with authoritative, precise control.

Deconstructing the Kit: A Component-Level Analysis of Superiority

True performance understanding comes from analyzing the sum of its parts. The BC0040T is a complete system, with each component meticulously designed to work in harmony under extreme conditions.

• High-Pressure Valve Springs: These are not merely “stiffer” springs. Brian Crower engineers these using premium chrome-silicon wire, heat-treated and shot-peened for ultimate fatigue resistance. They are designed with a specific pressure curve to provide ample seat pressure to keep the valve planted at low RPM, while delivering the aggressive open pressure required to control the valve at over 9000 RPM, even with high-lift camshafts. This precise pressure management is non-negotiable for stability.
• Precision-Machined Titanium Retainers: Replacing the heavy steel OEM retainers with these CNC-machined 6AL-4V titanium units is a critical performance maneuver. The significant weight reduction at the very top of the valvetrain assembly reduces inertia exponentially, allowing the springs to do their job with far less effort. This translates directly to lower valvetrain stress, higher achievable RPM, and reduced risk of harmonic-induced spring failure. Each retainer is machined to exacting tolerances for perfect fit and concentricity.
• Hardened Steel Spring Seats (Shims): Often overlooked, these seats are the interface between the spring and the cylinder head. The included hardened steel seats prevent the high-pressure springs from digging into and damaging the softer aluminum of the cylinder head, ensuring consistent spring height and pressure throughout the engine’s life. This is a fundamental detail for long-term durability in a stressed system.

This holistic approach ensures there is no weak link. Installing high-lift cams on stock or mismatched springs and retainers is a recipe for disaster. The BC0040T kit provides the complete, validated solution.

Technical Performance Benefits: Beyond Simple Reliability

The advantages of the BC0040T kit extend far beyond merely preventing valve float. Its implementation fundamentally alters the engine’s operational envelope and characteristics.

First and foremost is absolute valvetrain stability at elevated RPM. This is the kit’s primary mandate. By providing the necessary pressure to counteract the increased acceleration forces of high-lift, aggressive-ramp camshafts, it ensures the cam profile is faithfully followed. This means the valves open and close exactly when the cam dictates, preserving cylinder pressure, optimizing volumetric efficiency, and making every bit of your cam’s profile usable for power production. Unstable valve motion destroys power and kills engines.

Secondly, the reduction in rotating mass via the titanium retainers has a cascading effect. Lighter valvetrain components reduce the power required to drive the camshafts (parasitic loss), freeing up horsepower. More importantly, it dramatically lowers the stress on the springs themselves, increasing their service life and safety margin. This is a critical concept explored in depth by engineering resources like the experts at Engine Builder Magazine, who detail how valvetrain mass and harmonics are the primary constraints in high-RPM engine design.

Finally, the kit enables and protects other performance modifications. Whether you’re running a high-compression piston setup, turbocharging, or supercharging, cylinder pressures soar. A robust valvetrain is essential to resist “blow-down,” where combustion pressure can literally push the valve open against spring pressure, leading to leakage, burned valves, and lost power. The BC0040T provides the clamping force necessary to seal the chamber under extreme pressure.

Vehicle Fitment & Application Specifics

The BC0040T kit is engineered for specific Honda K-series engines known for their performance pedigree. It is crucial to verify your engine code before purchase. This kit is designed for use with HIGH-LIFT AFTERMARKET CAMSHAFTS and is typically excessive for a stock or mildly modified engine.

Primary Engine Application: Honda K20A, K20A2, K20A3, K20Z1, K20Z3, K20Z4.

Primary Vehicle Applications Include:

– Honda Civic Type R (EP3, FD2)

– Acura RSX Type-S

– Honda Civic Si (2006-2011)

– Honda Accord (K20/K24 variants with K20 head)

– Honda CR-V (K20 variants)

Note: Always cross-reference your specific cylinder head and camshaft specifications. This kit is a must for camshafts with lift exceeding approximately 12.0mm and for any engine regularly sustained above 8000 RPM.

Installation Notes & Technical Specifications

Installation of the BC0040T kit is a precision operation that requires machining and expert measurement. It is not a direct “drop-in” replacement for OEM components. Proper installation mandates checking and setting the installed spring height using the provided shims. This ensures the springs operate within their designed pressure window. Failure to set correct installed height can result in excessive pressure (accelerating wear and straining cam lobes) or insufficient pressure (leading to valve float). Consultation of the official Brian Crower specifications and the use of a quality spring height micrometer are required. Always perform a thorough valve-to-piston clearance check after any valvetrain or bottom-end modification.

The Non-Negotiable Foundation for K20 Performance

Building a high-performance K20 engine is an exercise in managing forces and eliminating failures. The valvetrain is the circuit breaker of your engine; when it trips, the damage is severe and immediate. The Brian Crower BC0040T Spring/Titanium Retainer/Seat Kit removes this single point of failure. It provides the engineering foundation upon which reliable, high-RPM power is built. For the master mechanic or serious builder, this kit is not an optional extra—it is an essential component of any build strategy targeting over 8000 RPM, high-lift cam profiles, or increased cylinder pressure. It represents the intersection of material science, precision manufacturing, and hard-earned racing experience, delivering the authoritative control your K20’s valvetrain demands to perform flawlessly under fire.
