BC0095U – Honda C30A/C32B NSX Stroker Kit – 84mm Stroke/ProH2k Rods (5.984″) – Unbalanced

Engineering Maximum Displacement for the Acura/Honda NSX Powerplant

The quest for naturally aspirated horsepower is a pursuit of precision, where displacement is the ultimate currency. For the revered Honda/Acura NSX and its legendary J-series V6 engines—the C30A and C32B—the BC0095U Stroker Kit represents the definitive, no-compromise solution for displacement expansion. Engineered by Brian Crower, this isn’t merely a collection of parts; it’s a cohesive, performance-optimized system designed to transform your 3.0L or 3.2L engine into a 3.5L+ torque monster while preserving the high-revving, linear power delivery that defines the NSX experience. By integrating an aggressive 84mm stroke crankshaft with the purpose-matched ProH2k connecting rods (5.984″), this kit unlocks the latent potential within your engine block, offering a substantial increase in cylinder pressure and volumetric efficiency. This is the foundation for significant, reliable horsepower gains, whether your goal is a streetable yet potent daily driver or a track-focused NA build that demands every last ounce of performance.

The Physics of the Stroke: Understanding Displacement Gain

Displacement is calculated as the volume swept by all pistons within their cylinders. The formula, (Bore² × Stroke × Cylinders × 0.7854), reveals that stroke length is a primary and highly effective variable. The factory C30A utilizes a 78mm stroke, while the C32B uses a 81mm stroke. The BC0095U kit’s 84mm forged crankshaft represents a substantial increase over both, dramatically altering the engine’s displacement profile. Paired with the appropriate piston and cylinder bore diameter (typically 93mm for a C30A, resulting in a 3.5L capacity), this longer stroke increases the engine’s swept volume per revolution. This directly translates to greater air/fuel mixture ingestion, higher cylinder pressures on the compression stroke, and a more powerful combustion event. The result is a broad, substantial increase in torque across the entire rev range, particularly in the mid-range where it’s most usable, without sacrificing the engine’s ability to breathe at high RPM—provided the valvetrain and induction systems are commensurately upgraded. For a deeper dive into stroker motor theory and the trade-offs of rod ratio, reputable technical resources like Engine Labs provide an excellent foundation.

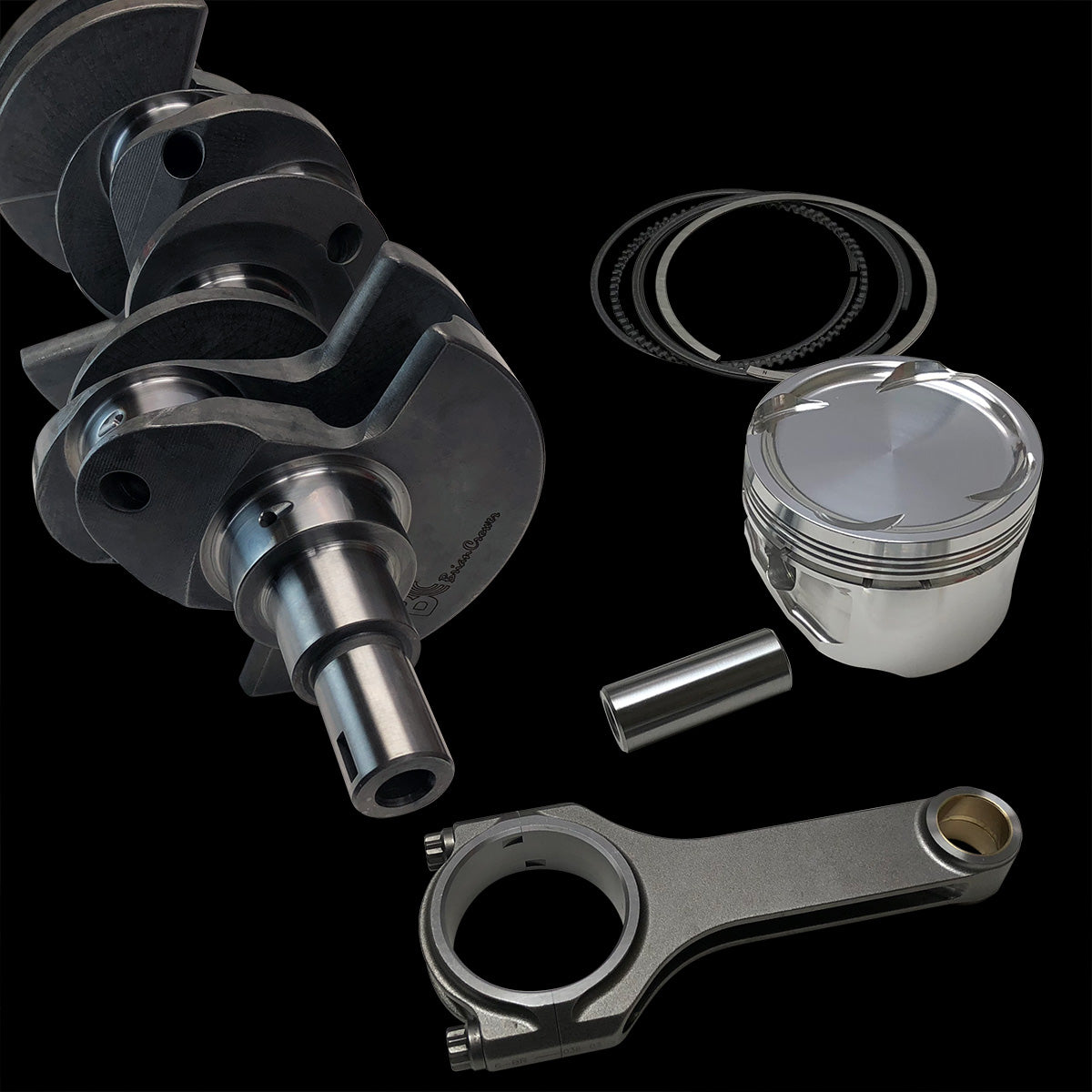

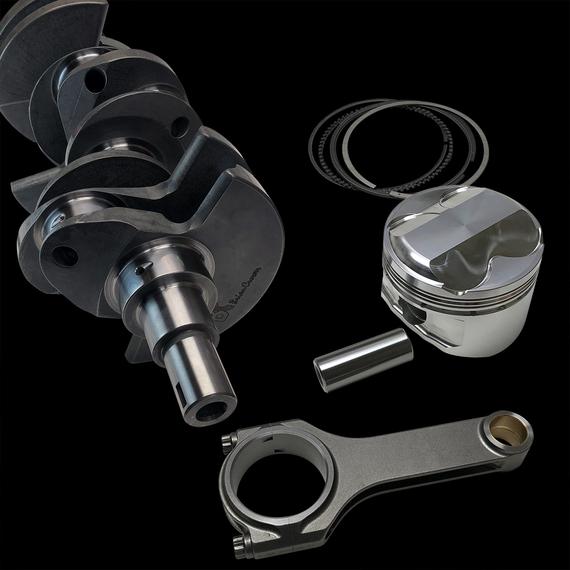

Component Breakdown: A Synergy of Forged Performance

Every component in the BC0095U stroker kit is selected and manufactured to work in perfect harmony under extreme stress, ensuring reliability at sustained high RPM and elevated power levels.

Forged 4340 Steel Crankshaft (84mm Stroke): The heart of the system. Machined from a premium 4340 chromoly steel billet, this crankshaft undergoes a rigorous forging process that aligns the metal’s grain structure for ultimate tensile strength and fatigue resistance. The 84mm stroke is precisely ground and micro-polished to minimize friction and ensure perfect bearing contact. It is supplied unbalanced, allowing your machinist to dynamically balance the entire rotating assembly—crankshaft, rods, pistons, and flywheel/clutch—to your specific components, which is critical for smooth operation at the NSX engine’s high rotational speeds.

Pro Series H2k Billet Connecting Rods (5.984″ Center-to-Center): These are not merely “longer rods.” The ProH2k rods are CNC-machined from a 4340 steel billet, offering superior strength and consistency compared to forged or powdered metal counterparts. The specific 5.984″ length is calculated to maintain an optimal rod ratio (rod length divided by stroke) with the 84mm stroke crankshaft and compatible pistons. A favorable rod ratio reduces piston side-loading and angularity, decreasing friction and wear on the cylinder walls, which contributes to longevity and high-RPM stability. They feature ARP 2000 cap screws as standard, the industry benchmark for fastener strength and clamp load reliability.

Compatible Pistons & Bearings: Note that the BC0095U is typically the rotating assembly core (crank & rods). It is designed to be paired with Brian Crower or other premium forged pistons (sold separately) with the correct compression height and ring package for your desired compression ratio and bore size. The kit’s design necessitates the use of performance main and rod bearings (such as ACL Race Series or similar) sized for the new crankshaft journals.

Tangible Benefits of the BC0095U Stroker Solution

• Substantial Displacement Increase: Achieve approximately 3.5L+ of total displacement (dependent on final bore size), providing a foundational gain of 30-50+ horsepower and a dramatic improvement in low-end and mid-range torque when combined with supporting mods.
• Optimized Rotating Assembly Dynamics: The engineered pairing of the 84mm stroke crank with 5.984″ ProH2k rods seeks to preserve a functional rod ratio, promoting smoother piston motion, reduced parasitic friction, and enhanced high-RPM capability.
• Unmatched Strength for Forced Induction or High-Compression NA: The fully forged 4340 steel rotating assembly is built to withstand the immense pressures of turbocharging, supercharging, or high-revving, high-compression naturally aspirated setups far beyond the limits of OEM components.
• Foundation for Maximum NA Power: For purists, this kit is the essential first step in building an ultimate, reliable, high-output naturally aspirated C30A/C32B, enabling larger camshafts and improved airflow to be fully exploited.
• Professional-Grade Build Flexibility: Supplied unbalanced for a custom dynamic balance, and requiring matched pistons, this kit is designed for experienced builders seeking a precision-tailored engine assembly for competition or extreme performance.

Vehicle Fitment & Application Notes

The BC0095U Stroker Kit is engineered specifically for the longitudinal, mid-mounted V6 engines found in the first-generation Acura/Honda NSX. Correct identification of your engine code is crucial.

Primary Application:

• 1991-2005 Acura NSX / Honda NSX equipped with the C30A (3.0L) or C32B (3.2L) engine.

Critical Installation Requirements: This is a professional-level engine building component. Installation requires complete engine disassembly, machining, and reassembly by a qualified technician. Key steps include:

• Complete engine tear-down and thorough cleaning.
• Precision machining of the engine block to the target bore size (e.g., 93mm or larger).
• Line honing of the main bearing bores may be required to ensure perfect alignment with the new crankshaft.
• Dynamic balancing of the entire rotating assembly (BC0095U crank & rods, plus your chosen pistons, pins, rings, flywheel, and damper/pulley).
• Selection and fitting of appropriate forged pistons, performance bearings, and a comprehensive gasket set.
• Post-assembly, engine management tuning (essential) is required to properly calibrate air/fuel ratios and ignition timing for the new displacement and compression ratio.

Technical Specifications at a Glance
