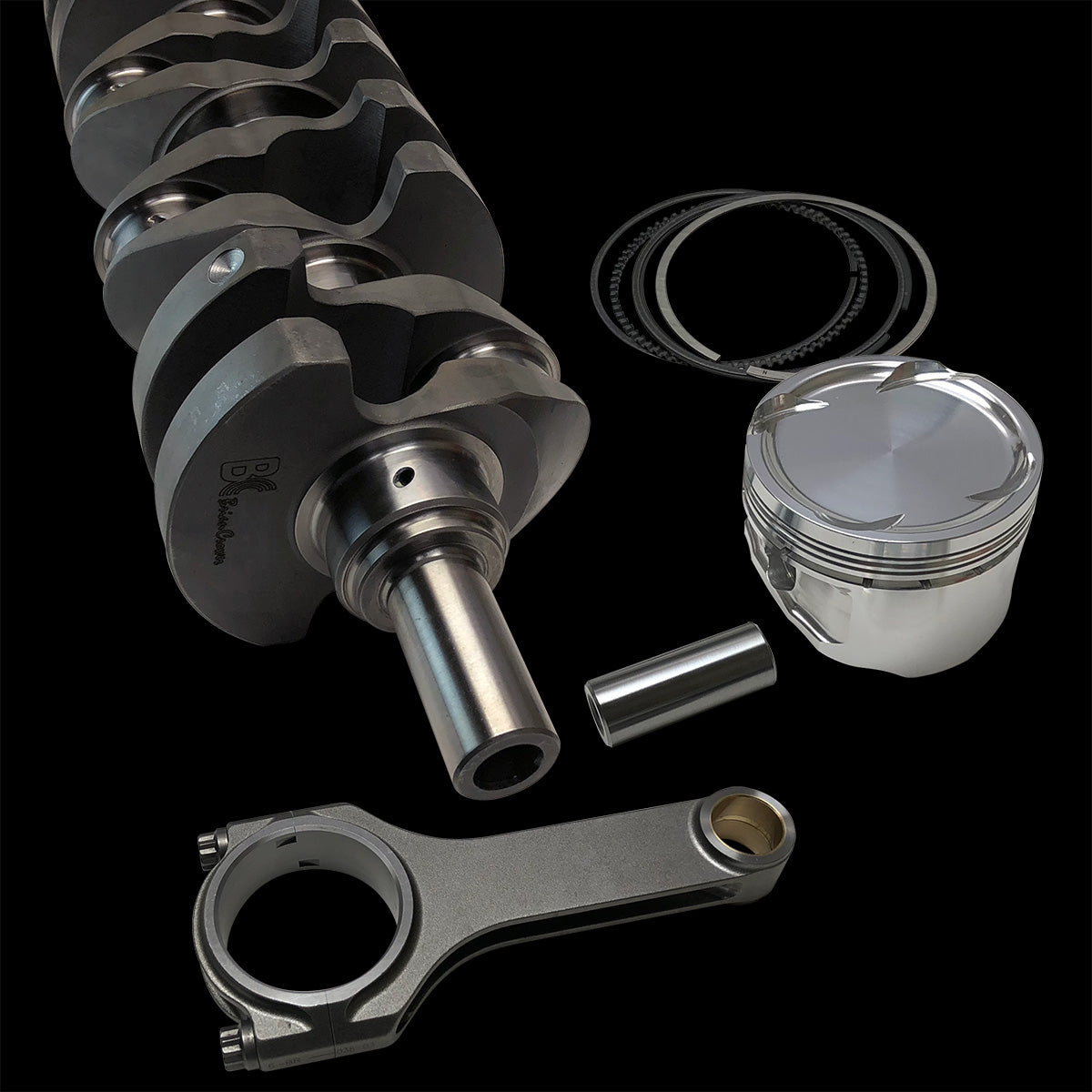

BC9331CP – Can-Am X3 Short Block Package (BC6934 MOAR Rods & CP 75mm Pistons, 20mm Pin) 10.5:1

For the Can-Am Maverick X3 enthusiast demanding uncompromising reliability at power levels exceeding 500 wheel horsepower, the assembly of core rotating components is the single most critical determinant of engine longevity and performance. The BC9331CP Short Block Package represents a definitive solution, moving beyond mere parts selection to deliver a fully engineered system. This package synergistically pairs the legendary strength of Brian Crower’s BC6934 MOAR (More On All Rods) billet connecting rods with the precision and thermal stability of CP-Carrillo’s forged 75mm pistons, featuring a robust 20mm piston pin. Pre-configured for a 10.5:1 compression ratio, this assembly is the calculated foundation for forced induction dominance or extreme naturally aspirated builds, transforming the stock Rotax ACE 900 twin-turbo engine from a potential liability into a bastion of strength.

Engineering for Extreme Duty: The MOAR & CP Synergy

The philosophy behind the BC9331CP is not simply about adding stronger parts; it’s about addressing the specific failure modes inherent in high-stress, high-horsepower Can-Am X3 applications. The stock powdered-metal rods and cast pistons become the primary points of failure well before the 500WHP threshold, often succumbing to bending, fastener stretch, or catastrophic fatigue. This package provides a systematic upgrade path that mitigates these risks through material science and precision manufacturing.

The BC6934 MOAR Billet Rod: A Foundation of Unyielding Strength

At the heart of this package are the BC6934 MOAR connecting rods. Machined from a single billet of 4340 chromoly steel, they eliminate the grain flow inconsistencies and potential voids found in forged or cast pieces. The “MOAR” designation is a direct reference to their increased beam and big-end dimensions, providing a significant boost in cross-sectional area and rigidity compared to standard aftermarket rods. This design specifically counters the bending forces and harmonic distortions experienced at elevated RPM and cylinder pressures. Finished with ARP 2000 cap screws—the industry benchmark for rod fasteners—the clamping force and fatigue resistance are exponentially increased, securing the rod bearings under conditions that would cause stock-style fasteners to yield.

Precision Combustion & Thermal Management with CP Pistons

Complementing the immense bottom-end strength are the CP-Carrillo 75mm forged pistons. Forged from 2618 aluminum alloy, these pistons are engineered for durability in high-heat, high-boost environments where thermal expansion and detonation are constant threats. The 2618 alloy maintains superior tensile strength at elevated temperatures compared to the 4032 alloy often used in milder builds, making it the clear choice for turbocharged applications targeting serious power.

• Unmatched Rotating Assembly Reliability: Eliminates the stock engine’s weakest links—powdered metal rods and cast pistons—providing a safety margin for 500WHP and beyond.
• Optimized for Boost or High RPM: The 10.5:1 static compression ratio is an ideal balance, offering strong off-boost response for trail manners while remaining perfectly safe for aggressive turbo tuning with proper fuel and management.
• Reduced Reciprocating Mass & Friction: The precision-forged CP pistons and balanced MOAR rods contribute to a smoother, freer-revving engine, improving throttle response and reducing parasitic loss.
• 20mm Piston Pin Upgrade: The larger 20mm wrist pin (up from the stock 19mm) dramatically increases shear strength and bearing area, a critical upgrade for preventing pin distortion or failure under high cylinder pressure.
• Complete Package Compatibility: Every component is precision-matched and verified for compatibility within the Rotax ACE 900 block, ensuring correct clearances, pin fit, and ring end-gap for immediate installation.

Technical Specifications & Build Details

The BC9331CP is supplied as a complete short block rotating assembly kit. Each component is meticulously selected and inspected to ensure it meets the exacting standards required for a professional-grade performance build. Critical machining and balancing steps are assumed to be performed by the engine builder, as final clearances must be set based on the specific block and crankshaft in use.

Vehicle Fitment & Application Notes

The BC9331CP Short Block Package is engineered specifically for the Rotax ACE 900 twin-turbo engine platform found in the following vehicles:

Primary Application: Can-Am Maverick X3 (all models equipped with the 900 Turbo RC engine, 2017-2023+). This includes the Maverick X3 DS Turbo, X3 Max Turbo, and their various RR and X RS performance variants.

Critical Installation Considerations: This is a short block package, not a complete engine. Installation requires professional machining and assembly by a qualified engine builder. Essential steps include:
– Verifying block bore condition and performing honing to achieve proper piston-to-wall clearance.
– Having the crankshaft professionally inspected and balanced, along with the entire rotating assembly (rods, pistons, pins).
– Setting piston ring end-gap specific to your intended application (boost level, fuel type).
– Utilizing appropriate main and rod bearings sized to your crankshaft journal dimensions.

For a deeper technical understanding of the advantages offered by billet connecting rods in high-performance applications, refer to this authoritative resource on connecting rod manufacturing and technology at EngineLabs.

The Ultimate Foundation for Your X3 Build

Investing in the BC9331CP package is a strategic decision to build not just for peak horsepower numbers, but for operational certainty. It addresses the fundamental mechanical limitations of the stock Rotax engine with components born from professional motorsport heritage. Whether your goal is a relentless dune machine, a high-RPM naturally aspirated screamer, or a turbocharged powerhouse pushing the boundaries of the platform, this short block assembly provides the resilient, precision-machined core required to realize that vision with confidence. It transforms the engine from a component you hope survives into the most reliable part of your entire high-performance Can-Am X3.
