BC0329LW – Toyota B58B30 Stroker Kit – 100mm Stroke/MOAR Connecting Rods/Custom Pistons

BC0329LW: Engineering Dominance for the Toyota B58B30 – The Definitive 100mm Stroker Kit

For the engineer, builder, or tuner demanding absolute mechanical supremacy from the Toyota B58B30 platform, incremental upgrades are insufficient. True performance is forged in displacement, leverage, and structural integrity. The Brian Crower BC0329LW Stroker Kit is not an assortment of parts; it is a coherent, system-engineered solution designed to transform the robust 3.0-liter B58 into a monumental 3.2-liter force. By integrating a precision-machined 100mm stroke billet crankshaft, patented MOAR connecting rods, and application-specific custom pistons, this kit redefines the thermodynamic and mechanical boundaries of the engine. It is the foundational upgrade for builds targeting reliable power figures far beyond the limits of the stock rotating assembly, whether for elite street performance, time attack, or dedicated drag racing. This technical treatise details the uncompromising engineering embedded within every component.

Design Philosophy: The Science of Leverage and Displacement

The core objective of a stroker kit is to increase engine displacement by altering the crankshaft’s stroke—the distance the piston travels in the cylinder. The B58B30 stroker kit with a 100mm stroke achieves this masterfully. The increased stroke provides a longer lever arm, generating greater torque for a given cylinder pressure. This translates to a broader, flatter torque curve and enhanced off-boost responsiveness, which is critical for forced induction applications. Crucially, Brian Crower’s approach is holistic. The crankshaft, rods, and pistons are designed as a single, balanced system. The increased stroke dictates specific rod geometry and piston pin height; these are not off-the-shelf components but bespoke elements engineered to work in concert. This systems engineering ensures optimal piston kinematics, minimizing side-loading and friction for durability and efficiency. For a foundational understanding of displacement increase principles, consider this resource on engine building fundamentals from Engine Builder Magazine.

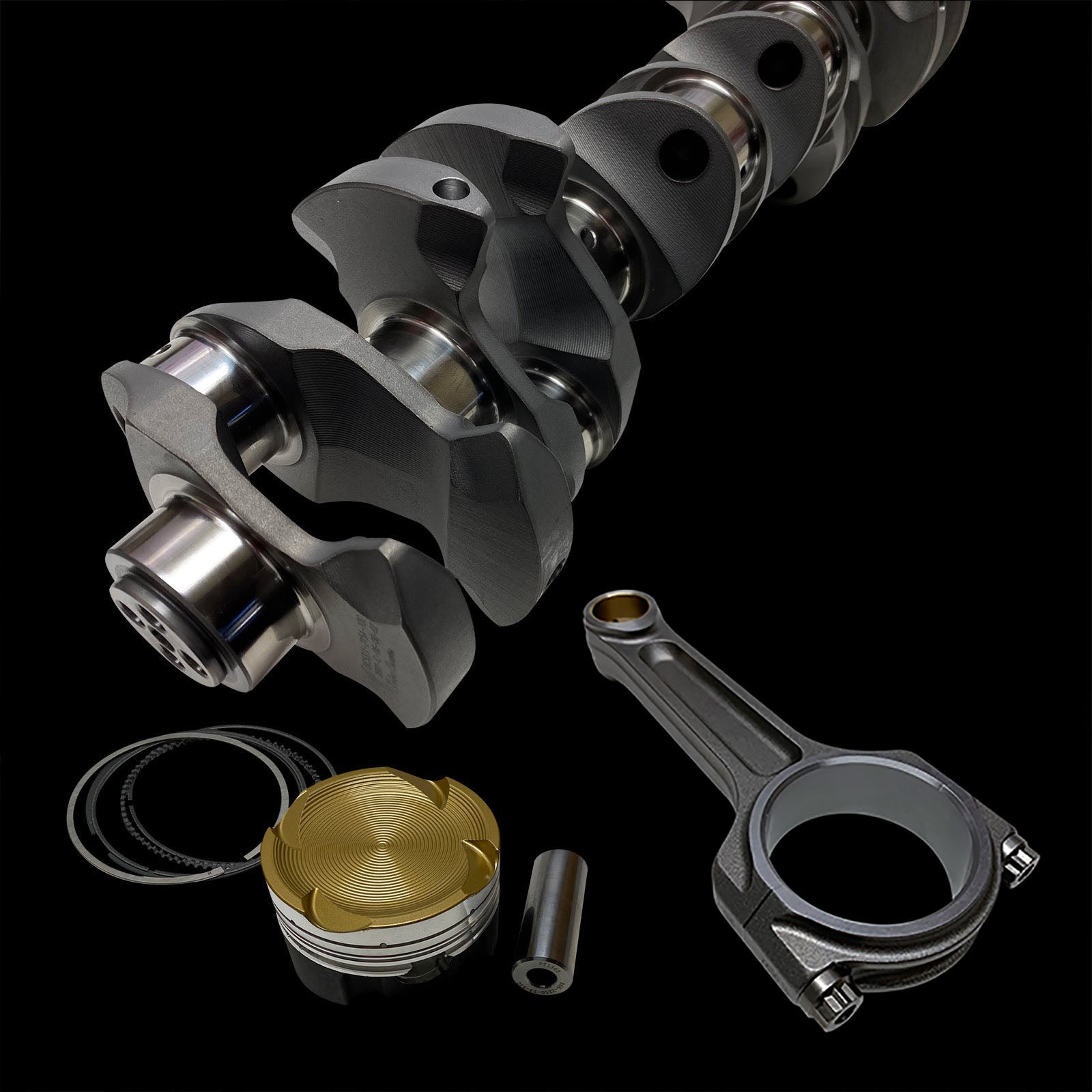

Component Breakdown: The Anatomy of Strength

Each element of the BC0329LW kit is selected and manufactured to a standard that meets or exceeds the demands of severe duty. The synergy between these components is what separates a true performance kit from a collection of parts.

• 100mm Stroke Billet Steel Crankshaft: The cornerstone of the kit. Machined from premium 4340 chromoly steel billet, this crankshaft is significantly stronger than the factory cast unit. The 100mm stroke (increased from the stock ~94mm) is the source of the displacement gain. Each crank is individually balanced, with micropolished journals and radii to eliminate stress risers. Keyways and oil passages are precision machined to ensure perfect timing alignment and optimal oil flow to the main and rod bearings.
• MOAR Connecting Rods: An acronym for “More Overall Area Resilience,” MOAR rods represent Brian Crower’s patented design. These 4340 chromoly steel H-beam rods feature a broader, more robust beam design that dramatically increases the cross-sectional area and moment of inertia. This design resists buckling and stretching under extreme cylinder pressures far more effectively than traditional H-beam or I-beam designs. They are furnished with ARP 2000 cap screws as standard, providing exceptional clamp force and fatigue resistance.
• Custom Forged Pistons: To accommodate the altered stroke and rod length, the kit includes a set of purpose-built pistons. Typically forged from 2618 aluminum alloy, these pistons are designed for high-boost, high-RPM applications. The alloy offers superior tensile and fatigue strength at elevated temperatures compared to 4032 forgings, albeit with slightly greater thermal expansion. Piston features include a designed compression ratio (often specified by the builder, commonly in the 9.0:1 to 10.5:1 range for forced induction), valve reliefs cut for aggressive camshaft profiles, and advanced skirt coatings to reduce friction and wear. Ring lands are reinforced to withstand detonation.

Vehicle Fitment & Application Notes

The BC0329LW Stroker Kit is engineered explicitly for the Toyota B58B30 engine code. This engine is found in a range of modern performance vehicles. Proper fitment requires verification of the engine code and an understanding that this is a significant internal modification. Professional installation and engine management tuning are absolute prerequisites.

• Toyota Supra A90 (2020+) – Equipped with the B58B30 engine.
• BMW G29 Z4 M40i – Sharing the B58B30 powerplant.
• Specific BMW models (B58 TU variants must be verified) – Includes the F-series and G-series vehicles such as the 340i, 440i, M240i, and 740i. Critical Note: The builder must confirm the specific engine sub-code (B58B30M0, B58B30O1, etc.) and consult with Brian Crower or their engine builder regarding potential nuances in oil passages, crankshaft position sensor wheels, or front crankshaft hub design. The B58 Technical Update (TU) engines may have specific compatibility requirements.

Technical Specifications: The Data of Performance

Installation Imperatives & System Synergy

Installing the BC0329LW kit is a blueprint-level engine rebuild. It demands meticulous machining work: the block must be align-bored/honed, the cylinders must be measured and potentially bored/honed to the exact piston specifications with the correct clearance for the 2618 alloy, and the entire rotating assembly must be balanced. The factory engine management system must be recalibrated by a proficient tuner to account for the changed displacement, dynamic compression, and airflow characteristics. This kit is the core of a larger system. To fully realize its potential, builders should pair it with upgraded head studs, a high-flow fuel system, reinforced drivetrain components, and a turbocharger or supercharger system capable of moving the increased air volume. The Brian Crower stroker kit provides the indestructible foundation; the resulting power ceiling is defined by the supporting architecture and the skill of the builder.
