BC0361 – Toyota 4AGE Stroker Kit – 83mm Stroke/ProH2K Rods

For the dedicated Toyota 4AGE builder seeking the definitive step beyond bolt-ons and cams, the Brian Crower BC0361 Stroker Kit represents the calculated, precision-engineered path to serious displacement and relentless performance. This isn’t merely an assortment of parts; it’s a systematically engineered solution designed to transform the legendary 4A-GE from a high-revving 1.6L powerhouse into a torque-rich 1.8L monster, without sacrificing the durability and responsiveness that made the engine iconic. The core of this transformation lies in its meticulously matched 83mm stroker crankshaft and proprietary ProH2K connecting rods, a combination engineered to deliver a substantial increase in displacement while fortifying the rotating assembly for sustained high-RPM operation. This kit is the cornerstone for builds targeting forced induction, aggressive N/A tuning, or simply unlocking the latent torque potential of the 4A platform, providing a foundation that is as robust as it is potent.

Engineering the Stroke: The 83mm Crankshaft

The centerpiece of the BC0361 kit is the 4340 chromoly steel stroker crankshaft, precision-machined to extend the stroke to 83mm. This critical increase, from the factory 77mm or 81mm stroke, is the primary factor in achieving the displacement jump to approximately 1.8 liters (exact final displacement depends on final overbore). Brian Crower manufactures this component from premium-grade 4340 chromoly steel billets, which are then heat-treated and nitride hardened for exceptional core toughness and superior journal surface hardness. This process ensures the crank can withstand the tremendous loads generated by increased cylinder pressure, whether from higher compression, forced induction, or extreme rpm. The crankshaft is fully counterweighted and dynamically balanced to exacting standards, minimizing harmonic vibrations—a crucial consideration when extending stroke and raising the redline. This results in a smoother, more stable rotating assembly, reducing bearing wear and increasing overall engine longevity under stress.

The ProH2K Rod Advantage: Strength Meets Lightweight Design

Paired with the aggressive stroke is a set of Brian Crower’s renowned Pro Series “ProH2K” connecting rods. These are not simply rebranded H-beam rods; they represent a specific engineering philosophy aimed at the high-performance street and track environment. Forged from 4340 chromoly steel, the ProH2K design utilizes an optimized H-beam profile that strategically places material to handle immense compressive and tensile loads from the increased stroke and piston speed, while carefully machining away unnecessary mass. The “H2K” designation hints at their capability in 2,000+ horsepower applications, underscoring the immense safety margin built into this 4AGE kit. Features include ARP 2000 cap screws as standard, which provide superior clamp load and fatigue resistance compared to lesser fasteners. The rod’s precision machining ensures perfect big-end roundness and consistent center-to-center length, which is critical for maintaining uniform deck height and compression across all cylinders.

Complete System Integration & Benefits

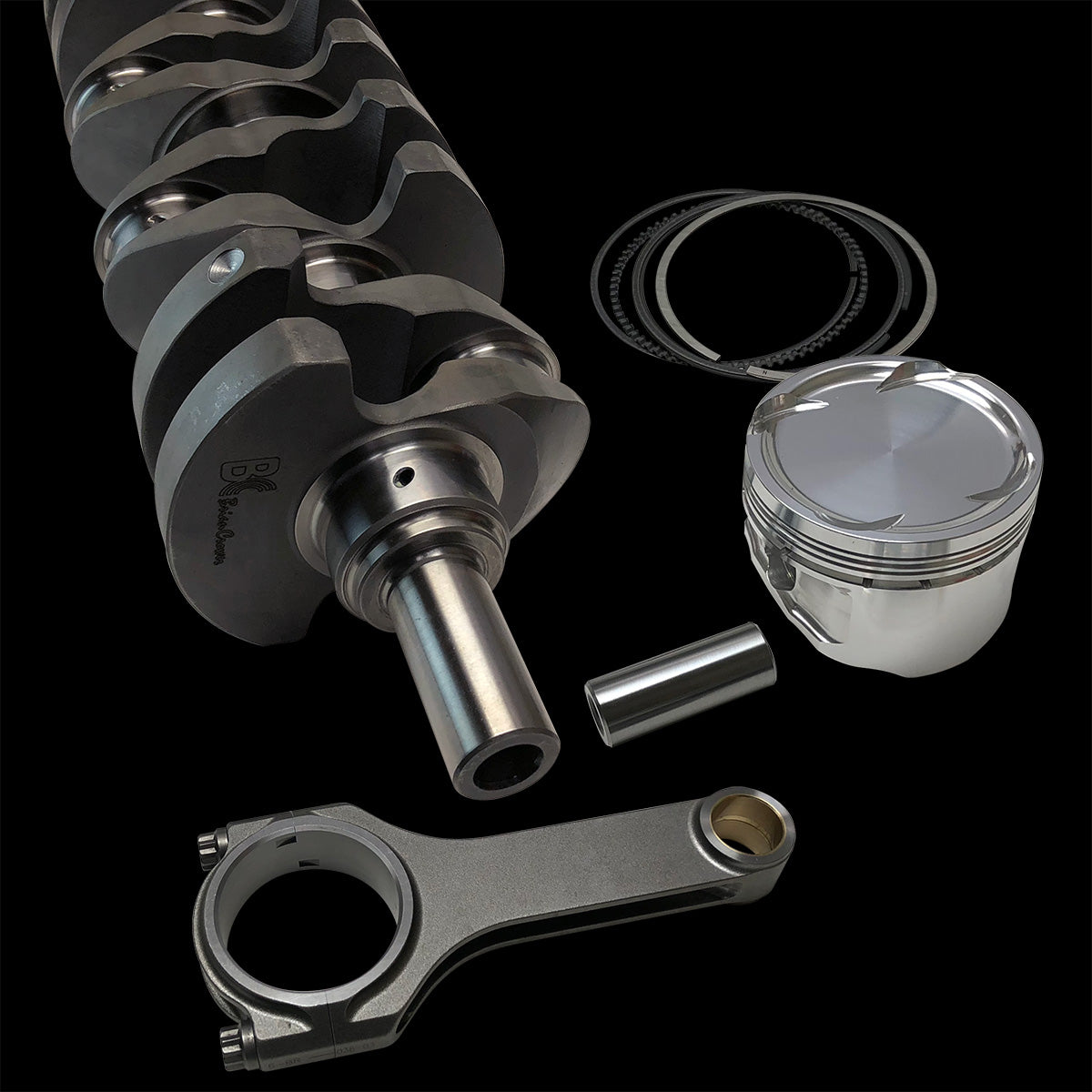

The BC0361 kit is engineered as a complete, balanced system. It includes the forged 83mm stroker crank, a set of ProH2K connecting rods, and a set of forged aluminum pistons with pins and locks. The pistons are designed with the correct compression height to work seamlessly with the longer stroke and rod combination, and they typically feature valve reliefs compatible with popular performance camshafts. Using a complete kit from a single manufacturer like Brian Crower guarantees component compatibility, ensuring proper piston-to-valve and piston-to-deck clearances when installed correctly.

• Substantial Displacement Increase: Achieve a reliable ~1.8L displacement, providing a significant boost in torque and horsepower throughout the powerband, especially in the mid-range where the 4A-GE often benefits most.
• Unmatched Rotating Assembly Strength: The 4340 chromoly steel crank and ProH2K rods create an incredibly robust foundation capable of supporting high-boost forced induction, high-RPM N/A applications, and sustained track abuse.
• Optimized Weight & Balance: The lightweight forged pistons and carefully balanced ProH2K rods reduce reciprocating mass, improving throttle response and reducing the stress on the crankshaft bearings.
• Extended RPM Potential: By fortifying the weakest link in the stock rotating assembly, this kit safely raises the engine’s operational ceiling, allowing you to exploit more aggressive cam profiles and tuning.
• Foundational Upgrade for Major Power: This stroker kit is the essential first step for builds aiming for 300+ horsepower, transforming the 4A-GE’s architecture to handle significant power increases reliably.

Technical Specifications & Vehicle Fitment

The BC0361 kit is designed for a broad range of 4A-GE engines, but proper identification of your engine’s generation and specific block casting is essential. The following technical table outlines the core specifications, while the fitment guide details common applications.

Technical Specifications Table

Vehicle Fitment Guide

Primary Application: This BC0361 stroker kit is engineered for the Toyota 4A-GE 16-valve engine family. It is critical to verify your engine’s specific generation and block casting, as differences in main journal sizing, oil squirters, and block height exist. The kit is generally compatible with both early (large port) and late (small port) 4A-GE blocks, provided the correct main bearing sizes are specified during purchase. Always consult with your machine shop or Brian Crower directly for confirmation based on your engine’s serial number and physical characteristics. Common vehicle platforms include:

• Toyota Corolla (AE86, AE92, AE101)
• Toyota MR2 (AW11, SW20 – naturally aspirated applications)
• Toyota Celica (ST162, ST184 with 4A-GE)
• Various rear-wheel-drive conversion and kit car applications utilizing the 4A-GE.

Note: Installation requires complete engine disassembly, professional machining (likely boring/honing of cylinders, possible block decking, and absolutely mandatory balancing of the entire rotating assembly), and reassembly by a qualified engine builder. Clearance checks for rod-to-block, piston-to-valve, and piston-to-deck are non-negotiable steps.

The Final Build Foundation: More Than Just Parts

Selecting the BC0361 Stroker Kit is a commitment to building a superior 4A-GE engine. It addresses the fundamental limitation of the platform—displacement—through metallurgical science and precision engineering, rather than brute force. The synergy between the 83mm stroke crank and ProH2K rods creates a rotating assembly that is both powerful and predictable, the absolute bedrock for a performance engine. When paired with complementary upgrades like performance cylinder heads, camshafts, and engine management, this kit unleashes the full, modernized potential of the classic twin-cam. For comprehensive insights into planning a 4A-GE build that incorporates a stroker kit, reviewing foundational engineering principles is invaluable. A resource such as this technical article on engine building fundamentals from Engine Builder Magazine provides critical context on clearance management, balancing, and assembly techniques that are directly applicable to installing this high-performance component set. The BC0361 isn’t just an upgrade; it’s a transformation, redefining the capabilities of Toyota’s most celebrated four-cylinder.
