Engineering Dominance: The BC0369U 1GRFE Stroker Kit Defined
For the builder demanding absolute mechanical superiority from the Toyota 1GRFE V6, the Brian Crower BC0369U Stroker Kit represents the definitive, no-compromise solution for displacement and structural integrity. This isn’t a simple parts collection; it’s a precision-engineered system designed to transform the robust 4.0L 1GRFE into a monstrous 4.66L torque generator, capable of withstanding the extreme pressures of forced induction and high-RPM operation. At its core, the BC0369U utilizes a massive 103mm stroker crankshaft coupled with the legendary strength of Pro Series H2K connecting rods and custom forged pistons. This combination doesn’t just add cubic inches—it re-engineers the engine’s kinematic profile for optimized volumetric efficiency and piston stability. Every component is manufactured to exacting tolerances from aerospace-grade materials, ensuring that when you’re building for four-digit horsepower goals or relentless off-road torque, the foundation is unshakable. This kit is the mechanical answer for Land Cruiser, Tacoma, Tundra, and 4Runner enthusiasts who view “stock” as a starting point and “reliability” as a function of over-engineering.
Kinematic Re-engineering: The 103mm Stroke & ProH2K Rod Advantage

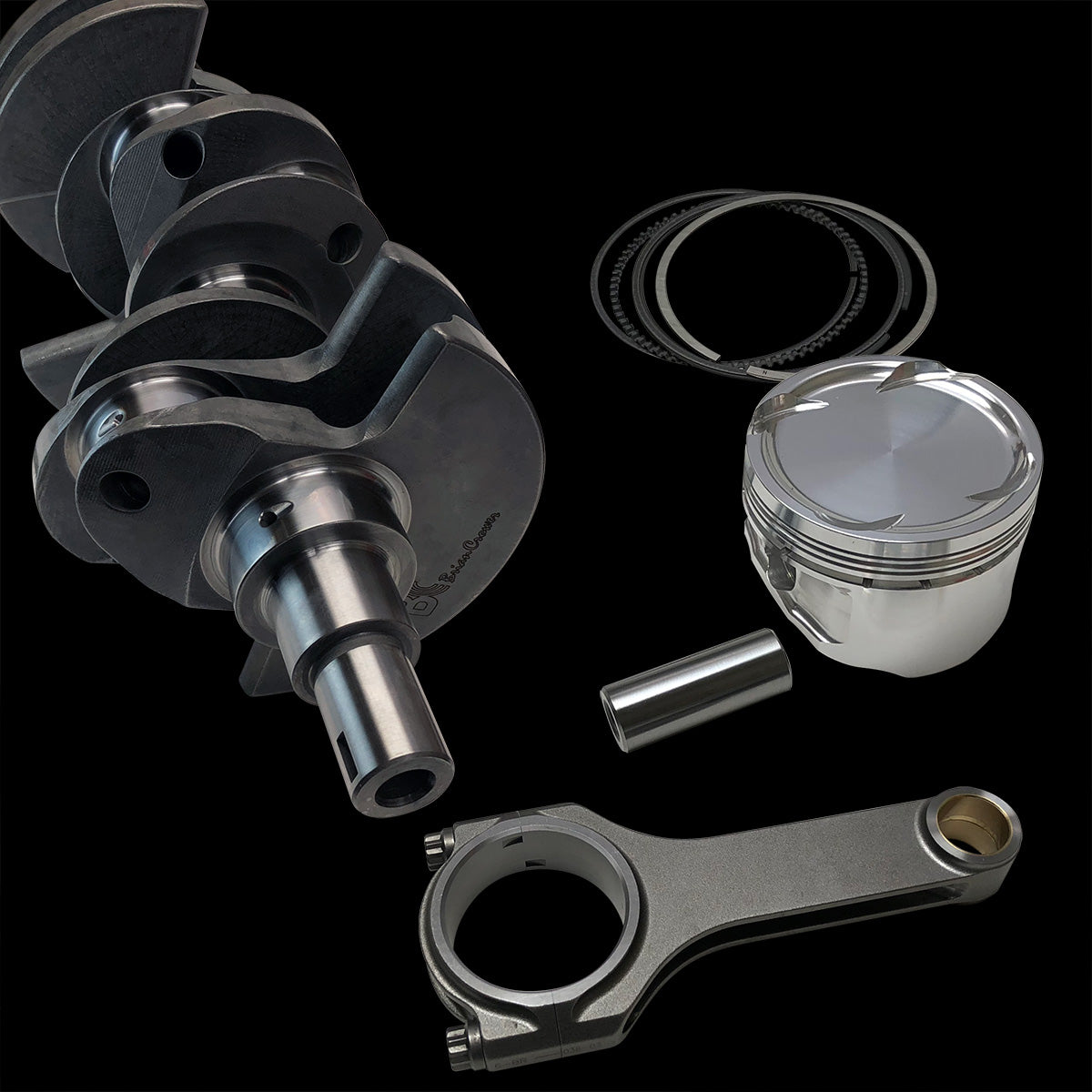

The principle behind the BC0369U’s performance gain is rooted in fundamental engine kinematics. By increasing the stroke from the factory 95mm to a commanding 103mm, the crankshaft forces each piston to travel a greater distance within the cylinder bore. This directly increases the swept volume of each combustion chamber, yielding a significant jump in total engine displacement to approximately 4.66 liters. However, a long-stroke configuration introduces greater piston acceleration and increased rod angularity, which places immense stress on the rotating assembly. This is where Brian Crower’s Pro Series H2K Connecting Rods become non-negotiable. Machined from 4340 chromoly steel and utilizing a 1700 MPa fastening system, these rods are engineered to handle the increased tensile and compressive loads without deflection. Their “H2K” designation refers to a proprietary hardening process that provides an unparalleled combination of core ductility and surface hardness, effectively eliminating the risk of rod stretch or bolt failure under detonation. The rods are paired with a 4340 chromoly steel crankshaft, precision counterweighted and nitrided for maximum fatigue strength and wear resistance, completing a rotating assembly that is dynamically superior to the OEM configuration in every measurable way.
Component Breakdown: Forged Pistons, Rings, and Critical Specifications
A stroker kit is only as strong as its most stressed component, which is why the BC0369U includes custom 4032 aluminum forged pistons. These are not shelf pistons; they are specifically designed for the increased deck height required by the 103mm stroke and ProH2K rod combination. The 4032 alloy offers a lower thermal expansion rate than 2618 alloy, allowing for tighter piston-to-wall clearances ideal for street-driven or moderate-boost applications, resulting in quieter operation and reduced oil consumption. Each piston features a CNC-machined dome or dish (specified at time of order to match your target compression ratio), valve reliefs optimized for aggressive camshaft profiles, and a hard-anodized crown to resist detonation damage. The kit is completed with a premium ductile iron plasma-moly top ring and Napier second ring set, ensuring optimal seal and oil control. For a deeper dive into the metallurgical and design principles behind building a forced-induction 1GRFE, consider this resource on the science of boosting the Toyota 1GR-FE.
- Massive Displacement Gain: Achieve a true 4.66L displacement, providing a foundational increase in torque and horsepower across the entire RPM band.
- Unmatched Rotating Assembly Strength: The ProH2K rod and 4340 crankshaft combination is engineered to survive well beyond 1,000+ horsepower thresholds and severe shock loads.
- Optimized For Forced Induction: The entire kit is designed with boosted applications in mind, from the forged piston material to the high-clamp rod bolts.
- Precision Fitment: Every component is machined to blueprint specifications, ensuring proper clearances and balance for a smooth, reliable engine assembly.
- Direct OEM Compatibility: The kit utilizes the stock main and rod bearing sizes, simplifying the build process and maintaining oiling system integrity.
Vehicle Fitment & Application Notes
Vehicle Fitment: The BC0369U Stroker Kit is engineered specifically for the Toyota 1GRFE V6 engine (4.0L). This engine is found in a wide range of popular Toyota trucks and SUVs. Critical application notes: This is an unbalanced rotating assembly; the crankshaft, pistons, and rods must be balanced as a complete set by a professional machinist to your specific flywheel/flexplate and harmonic damper. Valve clearance must always be checked with clay during assembly, especially when using aftermarket camshafts. Not recommended for use with factory engine management without proper tuning.
- Toyota Tacoma (2005-2015 with 1GRFE)
- Toyota Tundra (2005-2013 with 1GRFE)
- Toyota 4Runner (2003-2022 with 1GRFE)
- Toyota FJ Cruiser (2007-2014)
- Toyota Land Cruiser / Lexus LX570 (2008-2012 with 1GRFE)
- Toyota Sequoia (2008-2012 with 1GRFE)
Technical Specifications: BC0369U Stroker Kit
| Component | Material & Specification | Part Number / Notes |
|---|---|---|
| Stroker Crankshaft | 4340 Chromoly Steel, Nitrided, 103mm Stroke | BC-0369U-CRK |
| Pro Series Connecting Rods | 4340 Chromoly Steel, H2K Process, 1700 MPa Bolts | BC-0369U-ROD |
| Forged Pistons | 4032 Aluminum, CNC-Machined, Custom Compression Height | BC-0369U-PST (Specify CR) |
| Piston Rings | Ductile Iron Plasma-Moly Top, Napier 2nd, Standard Tension Oil | BC-0369U-RNG |
| Wrist Pins | DLC-Coated, Precision Fit | BC-0369U-PIN |
| Rod Bearings | Standard Size, Performance Alloy (Not Included – Specify during purchase) | – |
| Final Displacement | ~4.66 Liters (Approx. 4660cc) | Requires professional balancing |
