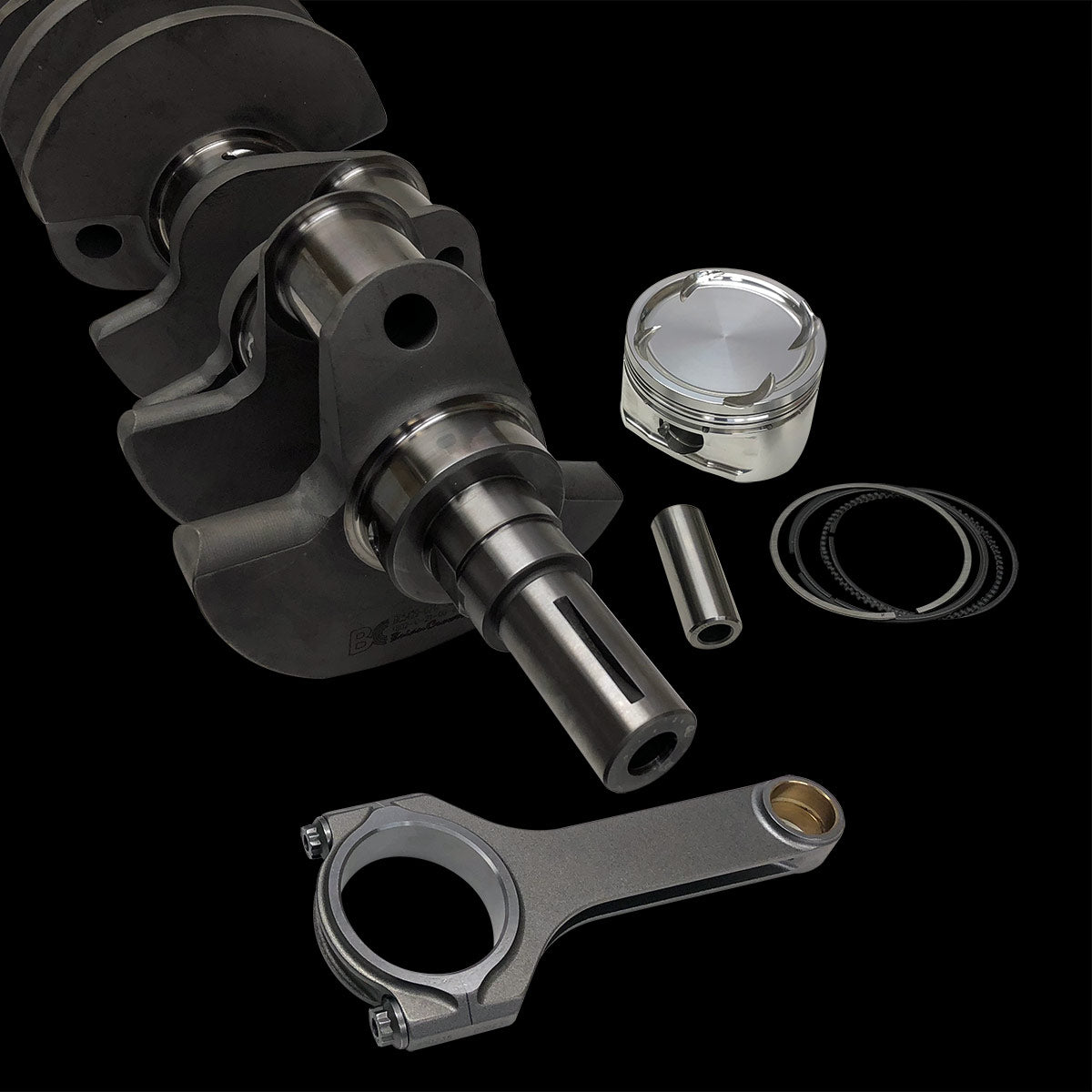

For the engine builder who views compromise as the enemy of horsepower, the Brian Crower BC0428 Stroker Kit represents the definitive solution for radically transforming the Ford Coyote platform. This is not merely an assortment of parts; it is a precision-engineered displacement multiplication system, designed from the billet up to extract maximum cubic inches and reliable torque from the modern modular V8. Centered on a formidable 3.750″ stroke 4340 billet crankshaft and paired with legendary ProHD H-beam connecting rods, the BC0428 kit is the calculated choice for forced-induction monsters, all-motor draggers, and road course weapons where ultimate bottom-end integrity is non-negotiable. Every component undergoes relentless scrutiny and proprietary processing, ensuring that when you commit to a stroker build, the foundation is unshakeable. This kit delivers the transformative increase in displacement and the robust, over-engineered strength required to harness and contain the explosive power it enables.
Engineering the Foundation: A Deep Dive into the BC0428 Components
The BC0428’s dominance is rooted in the metallurgical and machining excellence of its core components. This is a system where each piece is designed to work in harmonic overkill with the others.
The 4340 Billet Crankshaft: The Heart of the Stroke
The cornerstone of the kit is the 3.750″ stroke crankshaft, machined from a single forging of premium 4340 chromoly steel. Unlike cast or even lesser forged units, the billet process allows for grain flow optimization in the most critical stress areas—the fillet radii of the main and rod journals. Brian Crower subjects this crank to a proprietary heat-treating and micro-polishing regimen, achieving a Rockwell hardness (Rc) rating that resists flex and wear while the mirror-like journal finish drastically reduces friction and enhances oil film strength. The crank is meticulously balanced as a bare component, providing a perfect starting point for zero-balanced or external balanced assembly setups, and includes all necessary oil galley plugs installed.
ProHD H-Beam Connecting Rods: The Unbreakable Link
Connecting the increased stroke to the piston is the responsibility of the ProHD 5.933″ H-beam rods. Constructed from 4340 chromoly steel, their H-beam design provides the optimal balance of rigidity and weight, efficiently handling both compressive and tensile loads from high cylinder pressure and extreme RPM. The use of 7/16-inch diameter ARP2000 or 8740 chromoly fasteners (kit dependent) is a critical upgrade, offering significantly greater clamp load and fatigue resistance than the standard 3/8″ bolts, virtually eliminating rod bolt stretch as a failure point. Each rod is weight-matched, shot-peened for surface stress relief, and features precision-bored bushed pin ends for flawless piston alignment and durability.
Performance Advantages and Build Benefits
Installing the BC0428 Stroker Kit is a strategic power move that recalibrates the entire performance envelope of your Coyote engine.
- Substantial Displacement Increase: Coupled with the appropriate bore size and piston selection, the 3.750″ stroke typically elevates a 5.0L Coyote to approximately 5.3L, providing a significant boost in torque and horsepower across the entire RPM band.
- Unmatched Bottom-End Durability: The combination of a 4340 billet crank and ProHD rods creates a rotating assembly capable of supporting well beyond 1,500 horsepower, making it ideal for high-boost, high-nitrous, or high-RPM NA applications.
- Enhanced Engine Efficiency: The increased stroke improves cylinder filling and combustion leverage, often leading to a broader, flatter torque curve. This translates to more responsive street manners and reduced need for extreme gearing in competition.
- Superior Friction Management: Micro-polished crank journals and precision-fit rods minimize parasitic drag, freeing up horsepower that would otherwise be lost to friction and converting more fuel into usable power.
- Foundation for Maximum Power: This kit is the essential first step for builds aiming for four-digit horsepower figures. It provides the mechanical confidence to aggressively tune forced induction or high-compression setups without fear of catastrophic rotating assembly failure.
Vehicle Fitment and Application Notes
Primary Application: The BC0428 kit is engineered for the Ford “Coyote” 5.0L DOHC V8 platform (2011-2023). Specific fitment must be verified based on year and vehicle model due to variations in engine front covers, balancers, and sensor triggers.
Critical Build Considerations: This is a professional-grade component set requiring expert installation. The increased stroke will necessitate the use of stroker-specific pistons with a compressed height and valve reliefs designed for the 5.933″ rod length and 3.750″ stroke. Block clearancing, particularly on the cylinder walls and pan rail for rod clearance, is almost always required. A thorough review of piston-to-valve clearance is mandatory, especially with aggressive camshafts. It is highly recommended to consult with your piston manufacturer and machine shop during the planning phase. For an in-depth technical discussion on Coyote stroker geometry and clearancing, refer to this authoritative resource on building stroker Coyote short blocks.
Complete Technical Specifications
| Component | Specification | Material & Details |
|---|---|---|
| Crankshaft | Stroke: 3.750″ Main Journal: 2.992″ Rod Journal: 2.323″ Journal Width: As OEM |
4340 Chromoly Steel Billet Heat-Treated & Micro-Polished Internal or External Balance (Specify) |
| Connecting Rods | Center-to-Center: 5.933″ Big End Bore: 2.323″ Pin Bore: 1.888″ Fastener Size: 7/16″ |
4340 Chromoly Steel ProHD H-Beam Weight-Matched & Shot-Peened ARP 2000 or 8740 Fasteners Included Bushed Small End |
| Kit Contents | Billet Crankshaft (1), ProHD Connecting Rods (8), ARP Rod Bolts/Nuts (16), Main & Rod Bearings (Set – Specify size), Instruction Sheet. | |
| Required for Completion | Stroker Pistons & Rings, Appropriate Harmonic Balancer & Flywheel/Flexplate for balance scheme, Full Gasket Set, Professional Machining & Assembly. | |
