BC0900D – Polaris XP Turbo (16-up) / XP 1000 (14-up) Dual Spring/Steel Retainer/Seat Kit

Introducing the BC0900D: The Definitive Valvetrain Upgrade for Forced-Induction and High-Output Polaris Engines

For the serious Polaris RZR XP Turbo or XP 1000 builder, the factory valvetrain represents a critical, yet often underestimated, performance boundary. The BC0900D Dual Spring, Steel Retainer, and Seat Kit is not merely an accessory; it is a fundamental engineering solution designed to transform a potential failure point into a bastion of reliability under extreme conditions. Engineered specifically for the punishing environments where these high-horsepower engines operate—from desert dunes to high-RPM trail runs—this kit addresses the core metallurgical and physical limitations of the stock components. By replacing the OEM single spring and powdered metal retainers with a precision-matched dual spring system and forged steel hardware, the BC0900D ensures absolute valve control, eliminates float, and provides the necessary margin of safety for modified engines, turbocharged applications, and sustained high-RPM operation. This is the essential upgrade for anyone pushing beyond stock limits, where valvetrain stability is the non-negotiable foundation of horsepower and durability.

Understanding Valvetrain Dynamics: Why the Stock System Falls Short

The valvetrain is a kinetic orchestra where timing, force, and mass must be in perfect harmony. In the high-compression, forced-induction environment of the Polaris XP Turbo and the high-revving nature of the XP 1000, the stock components are operating at their design limit.

The Critical Failure Points of OEM Components

The factory single spring and lightweight retainer are optimized for cost, noise, and fuel economy within a strictly defined stock power and RPM band. Under increased cylinder pressure from tuning or boost, and at elevated RPM, several catastrophic failure modes emerge. Valve float occurs when the spring cannot overcome the inertia of the valve assembly fast enough to follow the cam lobe profile, causing the valve to momentarily “float” off the seat. This leads to lost power, erratic timing, and, ultimately, piston-to-valve contact. The OEM powdered metal retainers, while light, lack the ultimate tensile strength needed for high-stress applications and can fatigue and split. Furthermore, the single spring design offers a narrow, fixed pressure curve, lacking the progressive damping of a dual-spring setup to manage harmonics and resist surge. The BC0900D kit is the calculated response to each of these engineering shortcomings.

Engineering Breakdown: The BC0900D Component-By-Component Advantage

Every element in the BC0900D kit is the result of targeted metallurgy and precision manufacturing, creating a system where the whole is significantly greater than the sum of its parts.

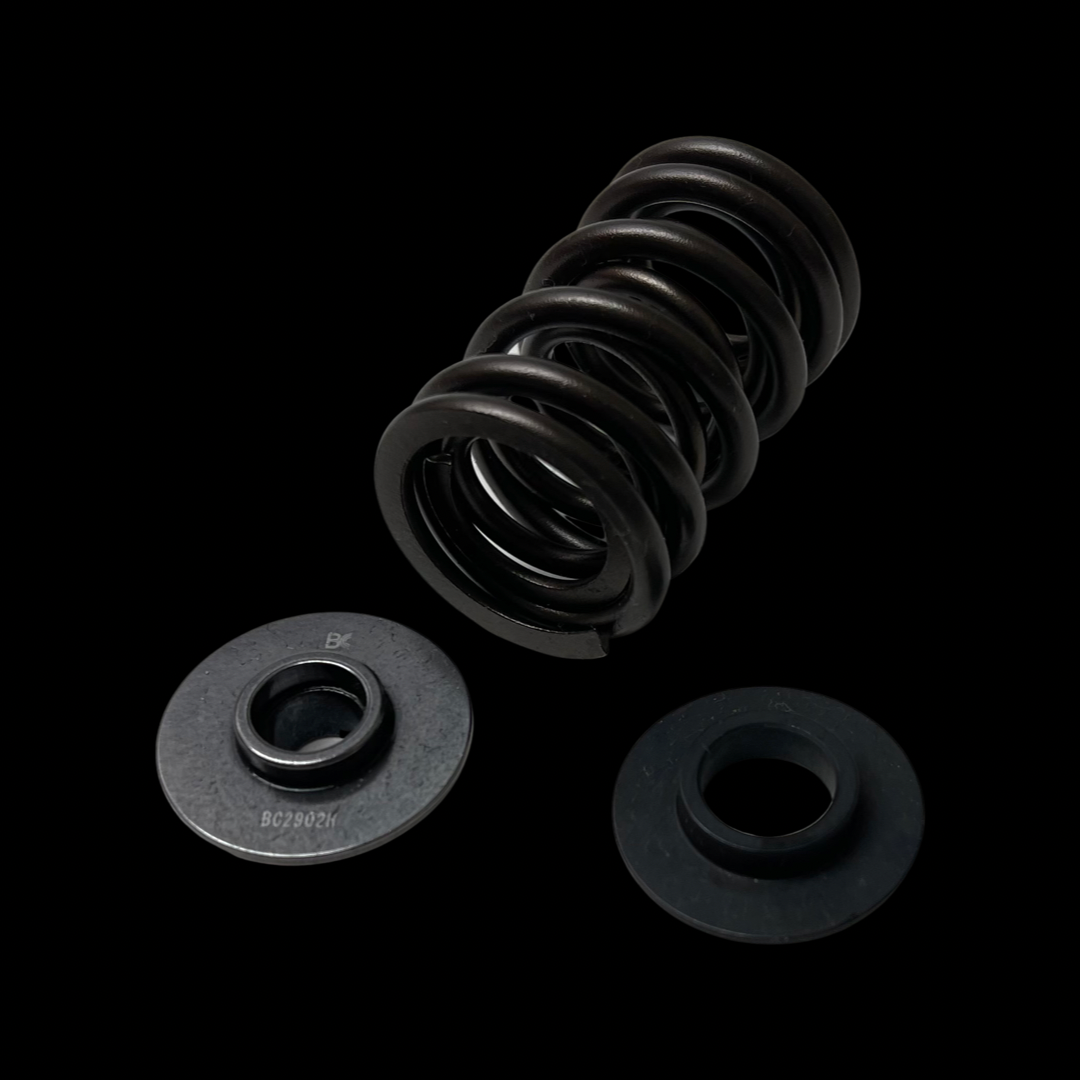

Dual Spring Design for Harmonic Control and Consistent Pressure

The core of the kit is its concentric dual spring design. The inner and outer springs are wound with opposite handedness to prevent harmonic resonance—a phenomenon where spring oscillations can lead to a complete loss of pressure at specific RPM ranges (surge). This design provides a significantly stiffer and more linear pressure curve across the entire lift profile, ensuring the valve follows the most aggressive cam lobes without separation. The springs are manufactured from high-chromium, silicon-alloy valve spring wire, heat-treated and shot-peened for maximum fatigue resistance and consistent load retention over thousands of operating hours.

Forged Chrome Moly Steel Retainers & Machined Seats

Replacing the sintered metal OEM retainers, the BC0900D features precision-machined retainers forged from 4140 chrome moly steel. This material offers an exceptional strength-to-weight ratio, resisting deformation and fatigue cracking under high cyclic loads. The matching machined steel seats provide a stable, wear-resistant platform for the spring, ensuring perfect alignment and consistent load distribution. This combination eliminates the flex and wear inherent in the stock setup, maintaining correct installed height and spring pressure for the life of the components. For a deeper dive into the science of valve spring dynamics and harmonics in performance engines, refer to this authoritative resource on valve spring fundamentals from Engine Builder Magazine.

• Eliminates Valve Float: Provides the high seat and open pressure required to maintain valve control at extended RPM ranges and under boost.
• Prevents Catastrophic Failure: The forged steel retainers resist splitting, and the dual springs prevent surge, guarding against dropped valves and engine destruction.
• Enables Advanced Performance Modifications: A mandatory supporting mod for increased boost, aggressive camshafts, and ported heads by ensuring the valvetrain can handle the increased demands.
• Reduces Valvetrain Wear: Superior damping characteristics reduce shock loading on the valve tip, rocker arm, and cam lobe, extending the life of the entire valvetrain assembly.
• Maintains Consistent Power Delivery: By ensuring precise valve timing at all engine speeds, power curves become smoother and more repeatable.

Vehicle Fitment: Precision Application for Polaris XP Platforms

The BC0900D is engineered for a specific range of models where the ProStar 1000 engine architecture is utilized. Correct fitment is critical.

Primary Application: Polaris RZR XP Turbo (All models, 2016 and newer). Secondary Application: Polaris RZR XP 1000 / XP 4 1000 (All models, 2014 and newer). This includes all sub-models and trim levels within these year ranges (e.g., XP Turbo S, Dynamix editions, Trail models). It is crucial to verify your specific engine model year before purchase. This kit is designed for the stock valve diameter and installed height; when used with aftermarket valves or machined heads, verification of clearances and spring pressure is required.

Technical Specifications

Installation and Break-in Protocol

Installation of the BC0900D kit requires specialized tools—including a valve spring compressor, micrometer, and pressure gauge—and a thorough understanding of engine head service. Critical steps include: verifying and potentially machining the spring seats for perfect perpendicularity, measuring and setting the exact installed height with shims as required, and checking for coil bind clearance with the intended camshaft lift. Post-installation, a proper break-in is essential: initial start-up should be at 2000-2500 RPM for 20 minutes with no load to allow the components to mate and settle. Follow this with several heat cycles under varying, moderate load before subjecting the engine to full-throttle or high-RPM operation. This procedure seats the components and stabilizes the spring pressures, ensuring long-term performance and reliability.
