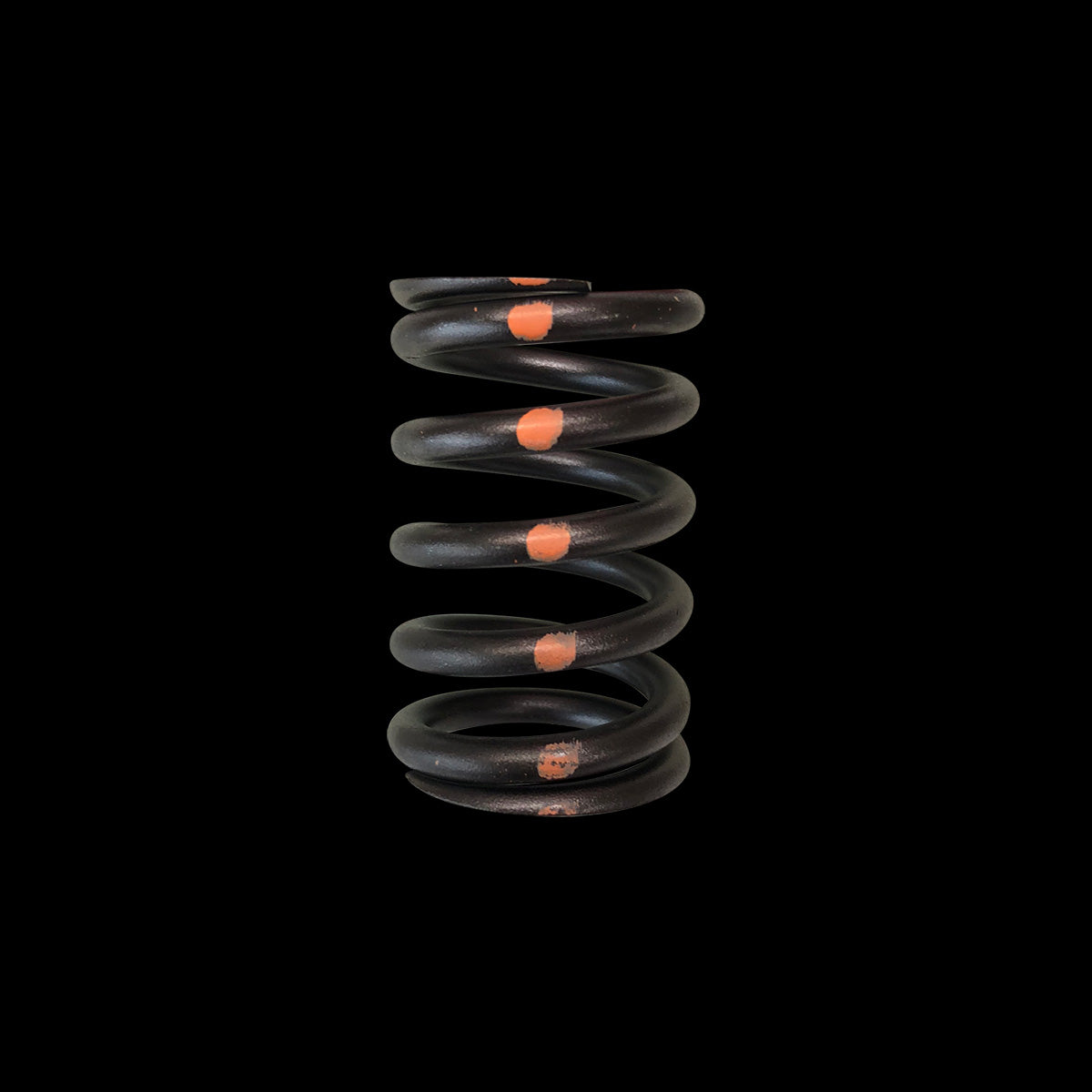

BC1360-1 – Valve Spring – Single (Toyota 1FZFE) – 1 only

Engineering Dominance for the 1FZ-FE: The Brian Crower BC1360-1 Single Valve Spring

In the realm of high-performance engine building, the valvetrain is the critical nexus between rotational force and volumetric efficiency. For the legendary Toyota 1FZ-FE engine—the robust, cast-iron heart of the Land Cruiser FZJ80 and Supra A80—the stock valvetrain components are engineered for decades of reliable, low-stress service. However, for builders seeking to unlock the true potential of this iconic inline-six through increased RPM, forced induction, or aggressive camshaft profiles, the factory valve springs represent a definitive ceiling. The Brian Crower BC1360-1 Single Valve Spring is not merely a replacement; it is a purpose-built, metallurgically advanced component designed to shatter that ceiling. Engineered to provide the precise seat pressure and controlled harmonic damping required for radical camshafts and elevated redlines, this spring is the foundational upgrade for any serious 1FZ-FE performance or reliability build. It transforms the valvetrain from a system of potential limitation into one of absolute control.

Technical Specifications & Dimensional Analysis

Precision is paramount. The BC1360-1 is defined by its exacting specifications, which are the direct result of computational analysis and real-world testing. Below are the critical dimensions and performance metrics that distinguish this component from an OEM-style part.

Core Performance Benefits & Material Science

The superiority of the BC1360-1 is not accidental; it is engineered through advanced material selection and manufacturing processes. These benefits translate directly into measurable performance and reliability gains for your 1FZ-FE.

• Elimination of Valve Float: The primary failure mode of a stock valvetrain at elevated RPM is valve float, where the spring cannot overcome the inertia of the valve, rocker, and retainer assembly. The BC1360-1’s increased seat and open pressure provide the necessary force to keep the valvetrain in positive contact with the cam lobe, enabling safe operation beyond 7,000 RPM with compatible components.
• Harmonic Damping & Stability: Valve springs do not operate at a single frequency. At certain RPM ranges, they can experience resonant harmonics that lead to spring surge and catastrophic failure. Brian Crower’s design and material processing mitigate these harmonics, providing a stable, predictable pressure curve across the entire operational RPM band. For a deeper dive into valvetrain dynamics, resources like EngineLabs’ technical primer on valve springs offer valuable context.
• Enhanced Durability Under Stress: The use of SAE 9254 Chrome Silicon alloy wire, followed by precision heat-treating and shot-peening, creates a spring that resists the twin enemies of performance engines: heat fatigue and constant stress cycling. This is critical for turbocharged or supercharged applications where under-hood temperatures are extreme.
• Support for Aggressive Camshaft Profiles: High-lift, fast-ramp camshafts demand springs that can handle rapid acceleration and deceleration of the valve. The controlled stiffness and pressure curve of the BC1360-1 ensure the valve motion precisely mirrors the cam lobe profile, maximizing lift and duration for increased airflow.
• Foundation for Forced Induction & Nitrous: Boosted applications create immense pressure in the combustion chamber trying to force the intake valve open (during intake) or the exhaust valve closed (during compression). The high seat pressure of this spring acts as a seal, combating this “blow-by” and ensuring the valve train’s timing is not compromised by cylinder pressure.

Precision Vehicle Fitment & Application Notes

Primary Vehicle Fitment: This spring is engineered specifically for the Toyota 1FZ-FE engine. This 4.5L DOHC inline-6 engine was used globally in the following key platforms:

• Toyota Land Cruiser (FZJ80, HDJ80, HZJ80) – 1993-1997
• Toyota Land Cruiser (FZJ105) – 1998-2007 (markets outside North America)
• Toyota Supra (JZA80) – 1993-1998 (Non-turbo models; turbo models use different springs and require validation for compatibility with turbo-specific components).
• Various Toyota Coaster buses and other commercial vehicles equipped with the 1FZ-FE.

Critical Installation Protocol: Installing performance valve springs is a precision operation. It is mandatory to check and set the installed height for each spring location using precision shims. Installed height directly determines seat pressure. Furthermore, these springs are designed for use with compatible performance titanium retainers and hardened steel locks (such as Brian Crower’s matching sets). Using stock or underspec retainers with the increased spring pressure is a recipe for failure. Always perform a thorough valve job, inspect all valve guides for wear, and ensure the valve seal clearance is adequate for the increased lift before assembly.

Strategic Integration into a Performance Build

The BC1360-1 is rarely a standalone modification. Its true value is realized as part of a synergistic valvetrain system. For a comprehensive upgrade, it should be paired with Brian Crower’s corresponding Stage 2 or Stage 3 camshafts for the 1FZ-FE, which are ground to optimize lift and duration within the safe control range of these springs. Additionally, upgrading to lightweight titanium retainers reduces the moving mass of the valvetrain, allowing the spring to work more efficiently and further raising the practical RPM limit. For forced induction builds, this spring is the essential companion to head studs and a head gasket upgrade, ensuring the valvetrain can withstand the increased cylinder pressures without losing control. It is the critical link that allows other performance modifications to achieve their full potential.

The Definitive Upgrade for the 1FZ-FE Purist

For the engineer, the restorer, or the performance enthusiast committed to the Toyota 1FZ-FE platform, the Brian Crower BC1360-1 Single Valve Spring represents a calculated investment in capability and longevity. It transcends the category of a simple “replacement part” to become a core enabling technology. Whether the goal is to build a high-revving, naturally aspirated track engine, a torquey and reliable turbo-duned overlanding powerhouse, or simply to future-proof a vintage Land Cruiser with modern metallurgy, this component provides the necessary margin of safety and control. It answers the fundamental question posed by any performance increase: “Is the valvetrain up to the task?” With the BC1360-1 installed, the answer is a resounding, technically substantiated yes.
