BC3045S-8: Brian Crower 31mm (+1mm) Stainless Steel Exhaust Valves for Honda/Acura K20A/A2/Z3

In the realm of high-performance Honda K-series engine builds, the valve train is not merely a component system; it is the critical interface between combustion energy and mechanical rotation. Compromise here is not an option. For tuners and builders targeting elevated RPM limits, forced induction applications, or simply demanding absolute reliability from a spirited NA setup, the stock valvetrain reveals its limitations. The Brian Crower BC3045S-8 exhaust valve set addresses these limitations with uncompromising engineering. This set of eight 31mm (+1mm oversize) stainless steel valves is designed explicitly for the K20A, K20A2, and K20Z3 platforms, representing a direct upgrade that enhances flow, durability, and thermal management. This is not a generic parts-bin component but a precision-calculated upgrade for those who understand that power is made in the details of airflow and material science.

Engineering Superiority: Material and Design Philosophy

Brian Crower’s approach to the BC3045S-8 valves is rooted in a deep understanding of the stresses inherent in a high-output, high-revving four-cylinder engine. The K20’s design is legendary for its rev-happy nature, but pushing its boundaries requires components that exceed OEM parameters.

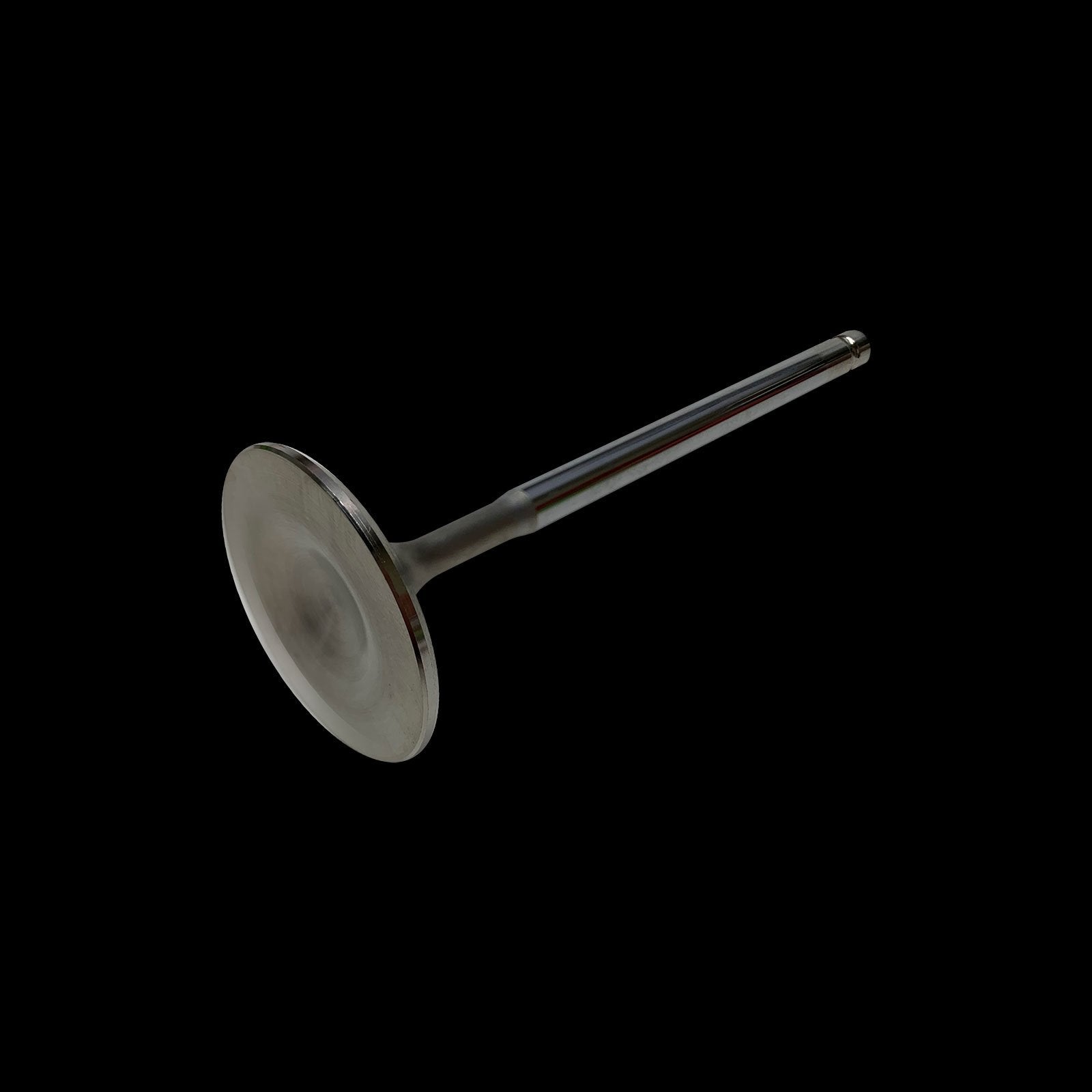

Precision Forged 21-4N Stainless Steel

The valves are forged from 21-4N austenitic stainless steel, a material selected for its exceptional high-temperature strength and corrosion resistance. Unlike cheaper alternatives, 21-4N retains its tensile strength and resists elongation under the extreme thermal cycling of exhaust port environments, where temperatures can consistently exceed 1400°F. This material choice directly combats valve float and stem growth, common failure points in stressed engines. The forging process aligns the metal’s grain structure, creating a part that is denser, stronger, and more fatigue-resistant than a cast or machined-from-bar-stock equivalent.

Optimized +1mm Oversize for Managed Flow Gains

The 31mm head diameter (a +1mm increase over stock) is a calculated upgrade. This specific oversize provides a meaningful increase in exhaust flow capacity—critical for expelling combustion gases efficiently, especially in turbocharged or high-compression applications—without necessitating extensive, costly cylinder head machining that could compromise port wall integrity or combustion chamber geometry. It is the ideal balance between performance gain and practical installation. The backside of the valve head is meticulously machined and polished to reduce exhaust gas turbulence as it exits the chamber, contributing to smoother scavenging.

Performance Benefits and Application Scope

Installing the BC3045S-8 valve set transforms a critical weakness into a pronounced strength. The benefits are measurable and directly impact engine performance, reliability, and tunability.

• Increased Exhaust Flow: The 31mm diameter and refined profile allow the engine to expel spent gases more efficiently, reducing pumping losses and minimizing exhaust gas residual in the cylinder. This leads to a cleaner intake charge for the next combustion cycle.
• Enhanced High-RPM Stability: The superior strength-to-weight ratio of the forged 21-4N steel, combined with a precision-machined stem, reduces the valvetrain’s reciprocating mass. This allows for more aggressive cam profiles and higher, stable RPM limits without the risk of valve float induced by inertia.
• Superior Thermal and Fatigue Resistance: The exhaust valve is the hottest component in the combustion chamber. 21-4N steel’s resilience directly prevents valve face guttering, stem scoring, and head warping, which are primary causes of catastrophic engine failure in tuned applications.
• Direct Fit for Performance Headwork: These valves are the perfect companion for a ported and polished cylinder head. They are often used in conjunction with Brian Crower’s matched valve springs, retainers, and camshafts to create a completely synergistic, balanced valvetrain system.
• Foundation for Forced Induction: For turbo or supercharger builds, the exhaust valves are under even greater thermal and pressure stress. The BC3045S-8 provides the necessary margin of safety to contain the increased energy of boosted exhaust gases reliably.

Detailed Vehicle and Engine Fitment

The BC3045S-8 is engineered for a specific family of engines. Precision fitment is paramount for proper seal, alignment, and performance. This set is designed as a direct replacement and upgrade for the following applications:

Primary Engine Applications:

• Honda K20A (JDM Integra Type R DC5, Civic Type R EP3)
• Honda K20A2 (USDM RSX Type R, Acura RSX Type S 2002-2006)
• Honda K20Z3 (USDM Acura RSX Type S 2005-2006, Civic Si 2006-2011)

Critical Installation Note: Utilizing the +1mm oversize valves requires machining the cylinder head’s exhaust valve seats to match the new 31mm diameter. This is not a “drop-in” component. Professional installation, including a professional multi-angle valve job, precision measurement of installed height, and appropriate shimming, is absolutely mandatory to ensure proper sealing and valve train geometry. Always pair with compatible performance valve springs and retainers.

Technical Specifications and Dimensions

The following table details the exact specifications of the BC3045S-8 valve set. These dimensions are critical for machinists and engine builders performing the installation and valve job.

Installation Considerations and System Synergy

Upgrading to the BC3045S-8 valves is a serious undertaking that should only be performed as part of a comprehensive cylinder head service or engine build. The valve seats must be expertly cut to the new diameter with a proper 45-degree seat angle, typically accompanied by top and bottom cuts (e.g., 30° and 60°) to optimize flow. The installed height of each valve, after the valve job, must be meticulously measured using a dial indicator and height micrometer. This measurement dictates the required valve spring shim thickness to achieve the correct spring pressure and retainer-to-seal clearance. Never reuse old, fatigued OEM valve springs with these performance valves. They must be matched with springs designed for the increased lift and RPM potential, such as the Brian Crower BC0100 or equivalent. For a deeper dive into the physics of valvetrain dynamics and why component matching is non-negotiable, consult this authoritative resource on high-performance valvetrain fundamentals from EngineLabs.

The Brian Crower BC3045S-8 exhaust valve set is the definitive choice for the discerning K20 builder. It provides a tangible upgrade in material, design, and performance over the stock component, forming the foundation of a valvetrain capable of supporting significant power increases and relentless reliability. This is precision engineering for measurable results.
