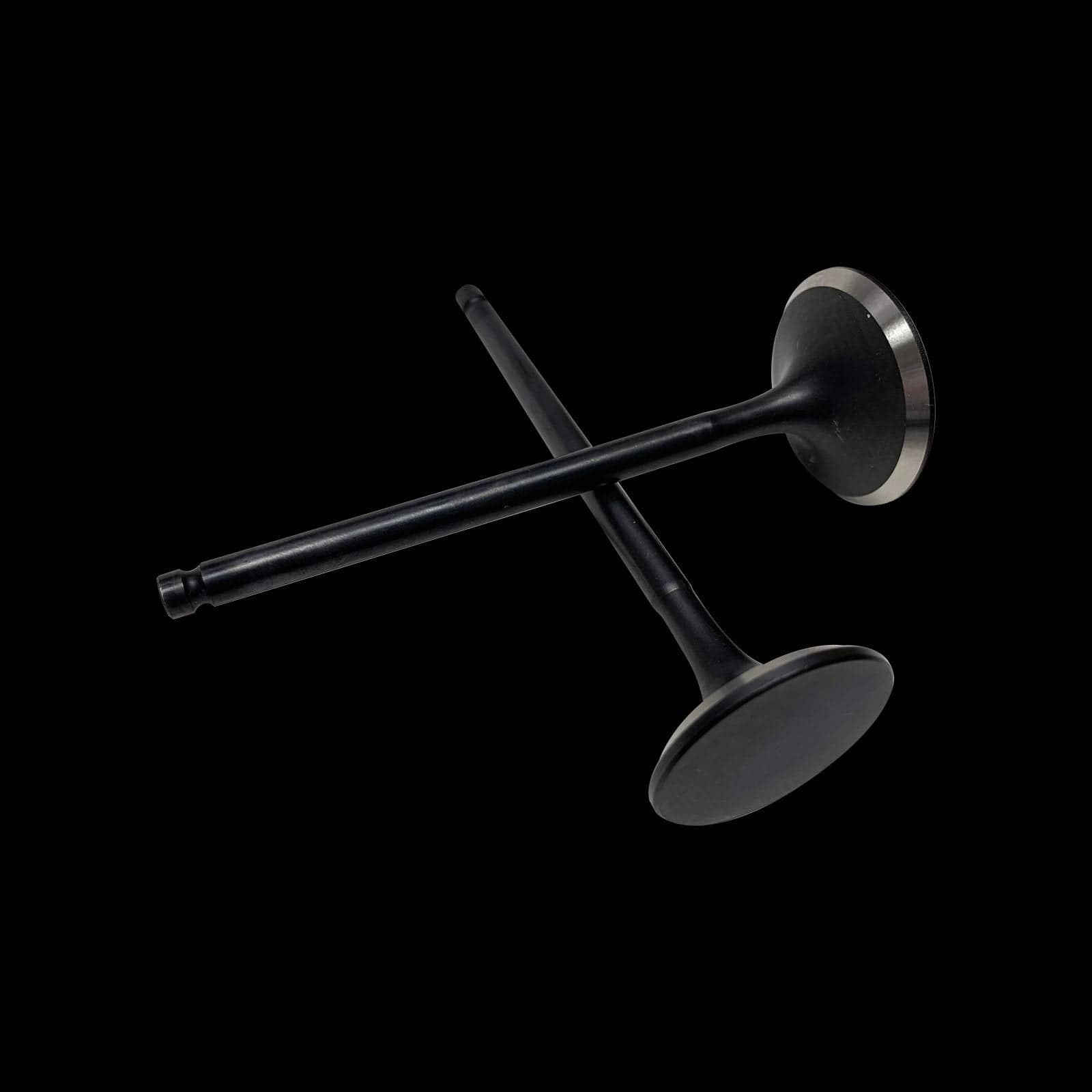

BC3064S-8 – Honda F20C/F22C Intake Valves (37mm / +1mm) – set/8

For the dedicated builder seeking to extract every last ounce of performance from the legendary Honda F20C and F22C powerplants, valve selection is a critical path decision. It sits at the crossroads of airflow, durability, and rpm potential. The Brian Crower BC3064S-8 intake valve set is not a mere replacement part; it is a calculated upgrade engineered for one purpose: to support and realize significant power gains in both naturally aspirated and forced-induction applications. This set of eight 37mm (+1mm oversize) intake valves represents a fundamental re-engineering of a key component, utilizing advanced materials and precision manufacturing to handle the extreme environments of high-output builds. Where the stock valvetrain begins to falter, the BC3064S-8 valves establish a new regime of reliability and flow, enabling the engine to breathe deeper and rev higher with unwavering stability.

Engineering for Extreme Duty: Material and Design Philosophy

The factory intake valves in the S2000’s F20C/F22C engines are competent but designed within the constraints of mass production and a broad reliability window. The BC3064S-8 valves are engineered for a singular performance window. They are crafted from high-strength, heat-treated stainless steel (typically EV8+ or equivalent), a material chosen for its optimal balance of tensile strength, thermal fatigue resistance, and corrosion resistance. This is crucial for intake valves, which, while cooler than exhaust valves, still face significant thermal cycling and mechanical stress, especially under boost or sustained high RPM. The stem is precision-machined to exacting tolerances, ensuring perfect alignment within the guide and consistent seal with the valve seat. The +1mm oversize head diameter (37mm vs. stock 36mm) is a calculated increase that provides a measurable gain in intake port airflow without necessitating extensive, costly port reshaping, making it an efficient upgrade for displacement increases or headwork packages.

Precision Machining and Flow-Optimized Profile

Beyond the raw material, the valve’s geometry is optimized for performance. The backside of the valve head is often machined with a specific profile—sometimes referred to as a “back-cut” or underhead radius—to improve flow as the valve lifts. This reduction in material minimizes turbulence and helps air adhere to the contour of the valve and seat, promoting a smoother, higher-velocity charge entry into the combustion chamber. The margin (the flat surface on the edge of the valve head) is consistently machined to the correct width to ensure proper heat dissipation and sealing interface longevity. Every BC3064S-8 valve is a matched component, with weight variances held to an absolute minimum. This weight matching is non-negotiable for valvetrain stability at the 8,000+ RPM levels these engines routinely see, preventing harmonic imbalances that can lead to premature spring fatigue, lost revs, or catastrophic failure.

Performance Benefits and Application Synergy

Installing the BC3064S-8 valve set is a foundational modification that unlocks potential in other areas of your build. Its benefits are systematic.

• Increased Airflow Capacity: The primary function. The +1mm larger valve head diameter increases the available curtain area for airflow, directly supporting power gains from bolt-ons, camshafts, increased displacement, or forced induction by reducing intake restriction.
• Enhanced High-RPM Stability: The use of high-grade stainless steel and precise weight matching results in a valve that is strong yet consistent. This allows the valvetrain—especially the springs and retainers—to operate with less erratic stress, supporting safer operation at and beyond the factory redline.
• Superior Thermal and Mechanical Fatigue Resistance: The upgraded material specification directly translates to a longer service life under high-stress conditions. These valves are far less prone to stretching, cupping, or micro-fracturing than stock valves when subjected to the heat and pressure of aggressive tuning.
• Optimized for Supporting Modifications: These valves are the perfect companion to Brian Crower or other performance camshafts, stiffer valve springs, and ported cylinder heads. They ensure the head can fully utilize the increased lift and duration of aggressive cams and manage the increased flow from porting.
• Foundational for Forced Induction: For turbo or supercharger applications, a stronger, more heat-resistant intake valve is insurance. It helps maintain a reliable seal against dramatically increased cylinder pressures and manages the higher inlet temperatures associated with compressed intake charges.

Technical Specifications and Compatibility

The following table details the precise specifications of the BC3064S-8 valve set, providing the hard data necessary for proper build planning and clear differentiation from the stock component.

Critical Installation Notes: Machining and Valve Train Matching

Professional head machining is mandatory. The installation of +1mm oversize valves is not a drop-in procedure. The cylinder head’s valve seats must be professionally cut or recut to the exact 37mm specification to ensure a perfect seal and proper heat transfer. This operation should always be performed by a skilled machinist with experience in performance Honda heads. Furthermore, these valves demand a matched valvetrain. It is highly recommended, and often required, to upgrade to corresponding performance valve springs and titanium retainers (such as the Brian Crower BC0200 kit) that are designed to control the marginally increased mass and operate at higher stress levels. The stock F20C/F22C valve springs, while robust, are not rated for the long-term durability of a built engine with aftermarket valves and cams. For a deep dive into the dynamics of high-RPM Honda valvetrains, consider reading this technical resource on valvetrain geometry and stability from Engine Builder Magazine.

Vehicle Fitment and Target Applications

The BC3064S-8 valves are designed as a direct fit for the specific cylinder heads used on the following engines. They are the cornerstone upgrade for any serious performance build on these platforms.

Primary Application:

• Honda S2000 (AP1, AP2): 2000-2009 models equipped with the F20C (2.0L) or F22C1 (2.2L) engines.

Engine Fitment:

• Honda F20C engine (2.0L DOHC VTEC) – All years.
• Honda F22C1 engine (2.2L DOHC VTEC) – All years.

Build Type Fitment:

• High-Revving Naturally Aspirated Builds (e.g., camshaft, header, tune).
• Stroker and Increased Displacement Builds (e.g., 2.2L, 2.4L).
• Turbocharger or Supercharger Forced-Induction Systems.
• Road Racing, Time Attack, and High-Performance Street Applications.
