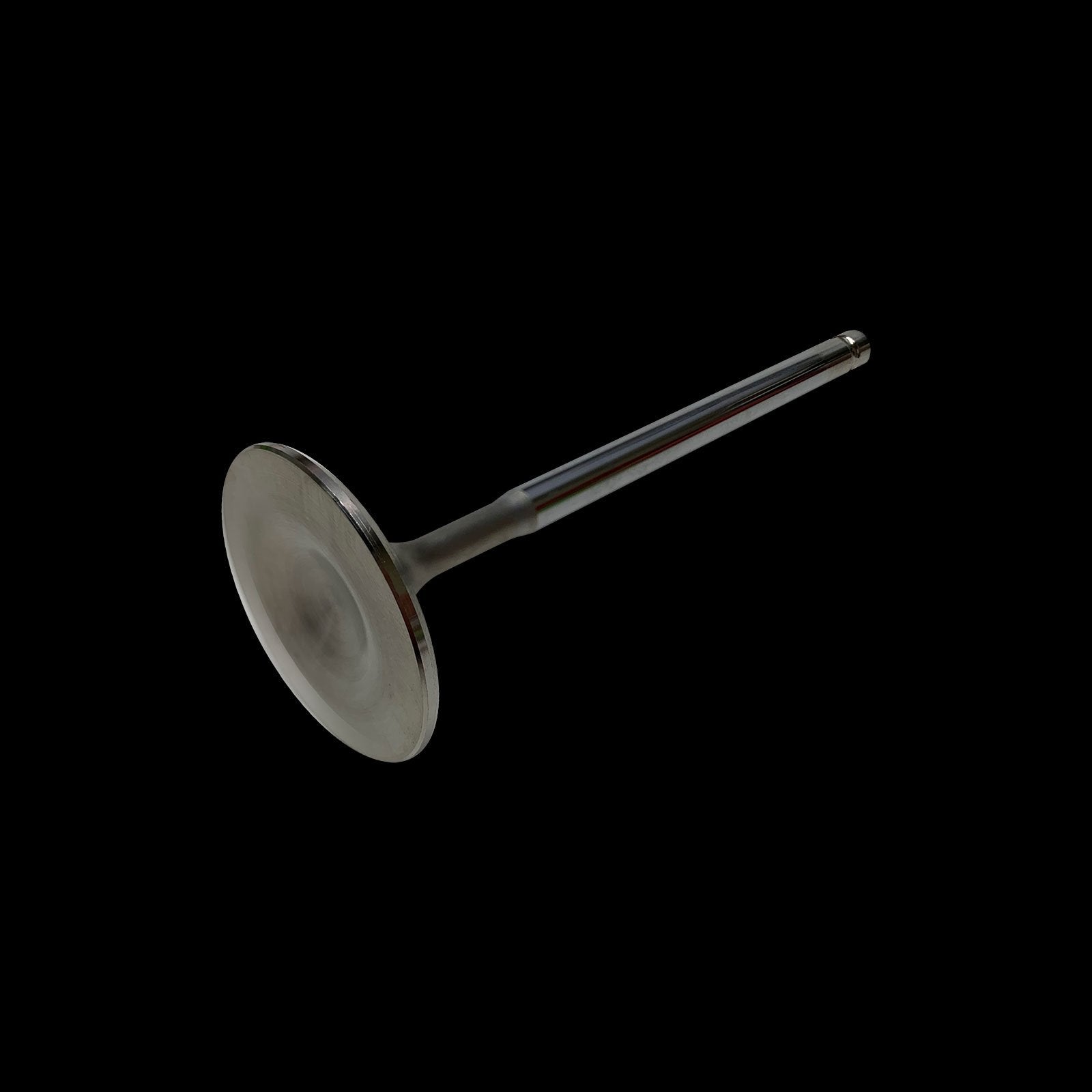

BC3359-1 – Individual Toyota 1FZFE Exhaust Valves (33.5mm / +1.5mm) – 1 only valve

In the realm of high-output, durable Toyota 1FZFE engine builds—spanning the iconic 80-Series Land Cruiser, LX450, and potent off-road or endurance racing applications—the exhaust valve represents a critical thermal and mechanical bottleneck. The Brian Crower BC3359-1 is not a mere replacement part; it is a precisely engineered upgrade designed to resolve the inherent limitations of the stock component. Engineered for the mechanic, builder, or enthusiast who demands uncompromising reliability and seeks to unlock latent airflow potential, this individual 33.5mm stainless steel exhaust valve provides a substantial +1.5mm oversized intake to the exhaust port. This singular component is the cornerstone for rectifying flow deficiencies, managing extreme thermal loads in forced induction or high-RPM applications, and constructing a valvetrain that matches the ambition of a performance-built 1FZFE. When selected as part of a valvetrain system or used to replace a single failed valve, the BC3359-1 delivers laboratory-grade materials science and race-proven geometry directly to your engine block.

Engineering Analysis: The +1.5mm Oversized Advantage

The stock Toyota 1FZFE exhaust valve is robust for OEM purposes but becomes a flow restriction when engine volumetric efficiency demands increase. The Brian Crower BC3359-1 addresses this with a calculated 33.5mm head diameter, representing a precise +1.5mm increase over stock. This modification is not arbitrary. This specific oversize provides the maximum effective flow area gain without compromising valve-to-valve or valve-to-piston clearance in a standard, unmodified 1FZFE combustion chamber when installed with matching valve seats. The area of a circle increases with the square of the radius; this seemingly minor 1.5mm increase yields a significant ~9% increase in theoretical flow area at the valve seat. This translates directly to reduced exhaust backpressure, more efficient cylinder scavenging, and a tangible reduction in exhaust gas temperature (EGT)—a critical factor for turbocharged or supercharged applications where thermal management is paramount. The valve’s backside profile is meticulously machined to promote flow transition from the port into the seat, minimizing turbulence and maximizing the efficiency of exhaust gas evacuation.

Material Science: 21-4N Stainless Steel Forged Performance

The defining characteristic of the BC3359-1, beyond its dimensions, is its construction from premium EV1+ Grade 21-4N heat-resistant stainless steel. This alloy is the benchmark for high-performance exhaust valves, selected for its exceptional suite of properties under duress. Unlike standard stainless or the material used in OEM valves, 21-4N maintains superior tensile strength and resistance to creep at sustained temperatures exceeding 1400°F (760°C), common in the exhaust port of a worked engine. Its high nickel and chromium content forms a stable oxide layer, providing outstanding corrosion resistance against lead-free fuel additives and combustion byproducts. Most critically, this material offers exceptional wear resistance at the valve stem and tip, crucial for longevity when paired with high-lift camshafts and stiff valve springs. Each BC3359-1 valve is CNC-machined to exacting tolerances from a forged blank, ensuring grain structure follows the valve’s form for maximum strength and consistency. This material choice, as explored in depth by industry resources such as Engine Builder Magazine’s analysis of stainless valve alloys, is what separates a durable upgrade from a potential point of failure.

Precision Machining and Critical Tolerances

Brian Crower’s manufacturing process ensures every BC3359-1 valve is a plug-and-play component for the serious builder. The stem diameter is held to a microscopic tolerance, ensuring perfect fit within standard or aftermarket valve guides without binding or excessive clearance. The locking groove is machined with a sharp, clean undercut to provide a positive seat for split locks, eliminating the risk of valve float-induced lock failure. The tip is hardened and precision-ground to a mirror finish, minimizing friction and wear with the rocker arm or follower. This level of finish across all critical surfaces ensures immediate compatibility and long-term stability within the complex kinematic environment of the 1FZFE valve train.

Performance Benefits & Application Scope

Integrating the BC3359-1 valve into a 1FZFE build delivers a cascade of performance and reliability improvements. It is the essential enabling component for airflow-focused cylinder head work.

• Increased Exhaust Flow Volume: The +1.5mm oversize directly reduces exhaust restriction, supporting higher horsepower and torque output, particularly in the mid-to-upper RPM range.
• Enhanced Thermal Management: Improved scavenging lowers cylinder temperatures and reduces EGTs, decreasing thermal stress on pistons, rings, and the cylinder head itself.
• Superior Material Durability: The 21-4N stainless steel construction offers vastly improved resistance to elongation, pitting, and stem wear compared to OEM valves, especially under boost or sustained high load.
• Foundation for Forced Induction: This valve is considered a mandatory upgrade for any turbocharged or supercharged 1FZFE application, providing the necessary margin of safety against valve failure.
• Precision Fitment: CNC machining guarantees dimensional accuracy for a perfect fit with valve guides, seals, and seats, ensuring proper sealing and oil control from first startup.
• Ideal for Rebuilds & Single Replacement: Sold as an individual valve, it allows for targeted upgrades or the precise replacement of a failed component without requiring a full, costly set.

Vehicle Fitment & Compatibility Notes

The Brian Crower BC3359-1 is engineered specifically for the Toyota 1FZ-FE 4.5L inline-six engine. Direct application requires matching the valve to appropriately cut +1.5mm oversized valve seats in the cylinder head. It is compatible with all OEM and aftermarket valve springs, retainers, and locks designed for the 1FZFE, provided the installed height and spring pressure are correctly specified for the application.

Primary Vehicle Applications Include:

• Toyota Land Cruiser (FJ80 / HDJ80) – 1990-1997
• Lexus LX450 – 1996-1997
• Toyota Land Cruiser (FZJ80) – 1993-1997 (U.S. Market)
• Various industrial and marine applications utilizing the 1FZFE engine block.

Critical Installation Requirement: Installation of an oversized valve mandates professional machining of the cylinder head. The valve seats must be expertly cut to the new 33.5mm diameter with the proper interference angle. A three-angle valve job is recommended to optimize the flow benefit of this valve. Always check and verify piston-to-valve clearance, especially when used in conjunction with performance camshafts, as the larger head diameter can reduce clearance margins.

Technical Specifications

Installation Protocol & Final Recommendations

The BC3359-1 demands a professional installation protocol. After machining the head for oversized seats, each valve should be hand-lapped with fine-grit compound to ensure a perfect seal, evident by a uniform, matte-gray ring around the valve face. Always install new, high-quality valve stem seals. Prior to final assembly, conduct a rigorous piston-to-valve clearance check using modeling clay or a precision dial indicator method, particularly if valve lift or timing is altered. This valve is a component in a system; for maximum benefit and reliability, pair it with complementary Brian Crower valve springs, titanium retainers, and a performance camshaft profile designed for your specific power goals. For the builder pushing the limits of the legendary 1FZFE, the BC3359-1 is not an option—it is an essential investment in airflow, durability, and consistent performance under fire.
