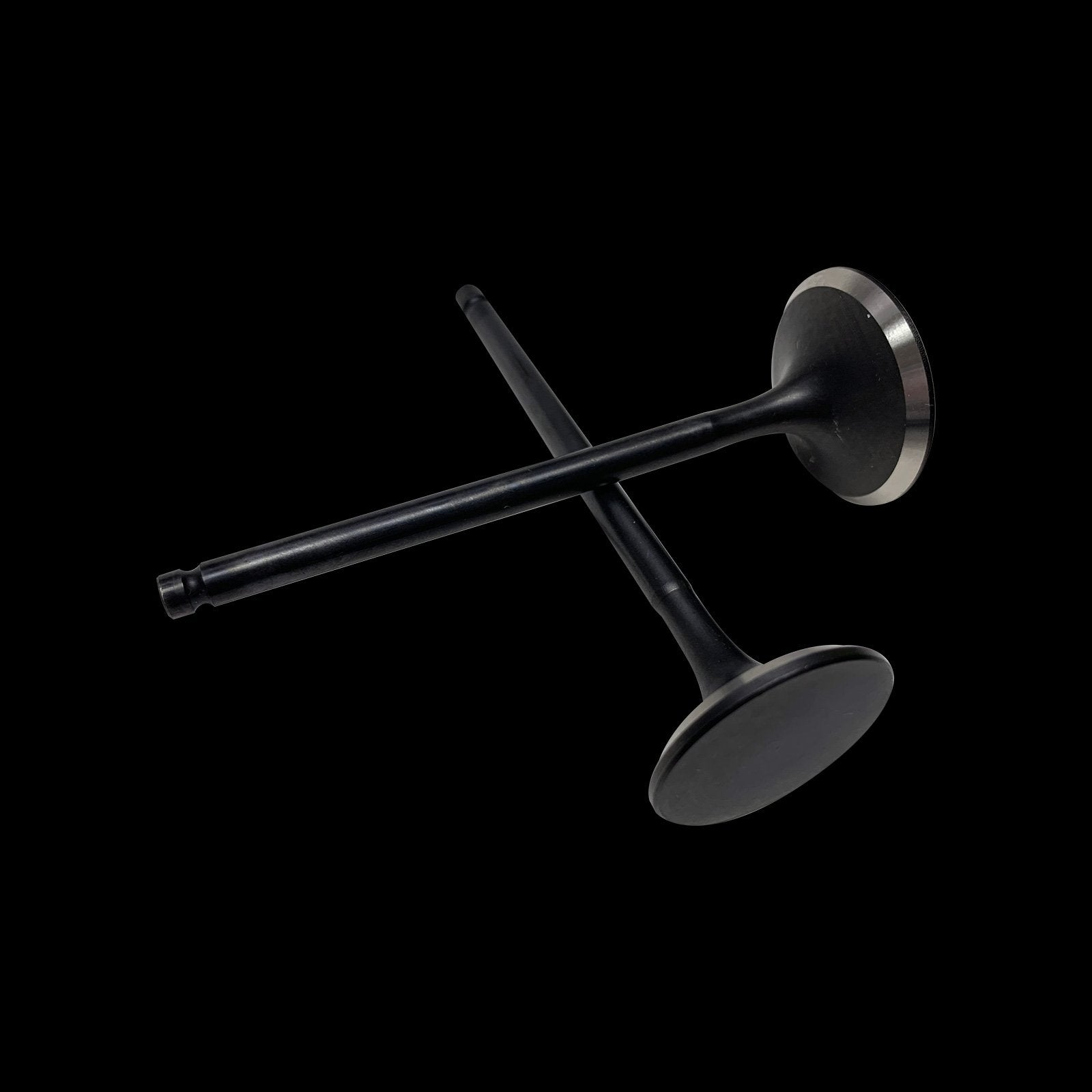

BC3363S-8 – Toyoya 4AGE 16v Exhaust Valves (27mm / +1mm) – set/8

For the 4AGE builder who views compromise as the enemy of horsepower, the Brian Crower BC3363S-8 exhaust valve set represents a fundamental upgrade in cylinder head efficiency and durability. This is not a generic replacement part; it is a precision-engineered component designed for the specific thermal and mechanical demands of high-performance and racing applications. When increasing airflow is the paramount objective, the exhaust side often presents the most significant bottleneck. The BC3363S-8 addresses this directly with a meticulously crafted +1mm oversize (27mm) profile, manufactured from high-grade EV8+ stainless steel. This combination delivers a measurable increase in exhaust flow capacity while providing a monumental leap in valvetrain stability and fatigue resistance compared to stock or inferior aftermarket valves. Installing this set is a definitive step toward unlocking the true volumetric efficiency of the 16-valve 4AGE, ensuring that your engine can breathe freely under sustained high-RPM operation.

Material Science & Forged Construction: The Foundation of Reliability

The core of the BC3363S-8’s performance lies in its selection of EV8+ (21-4N) stainless steel. This aerospace-grade alloy is the benchmark for high-performance exhaust valves due to its exceptional balance of properties. It possesses outstanding creep resistance at elevated temperatures—a critical factor where exhaust valves can see temperatures exceeding 1400°F (760°C). Creep is the gradual deformation of metal under constant stress and heat; a valve suffering from creep will stretch, leading to lash changes and eventual failure. The EV8+ material effectively resists this, maintaining its critical dimensional stability. Furthermore, its superior thermal fatigue resistance prevents the formation of micro-cracks in the valve margin and head, a common failure point in stock valves subjected to repeated thermal cycling from aggressive track use or forced induction.

Brian Crower then subjects this premium material to a precision forging process. Forging aligns the metallic grain structure, creating a part that is inherently stronger and more ductile than a valve machined from bar stock. This results in a valve that can withstand higher combustion pressures and the intense mechanical shock loads experienced at RPM limits exceeding 8,000+. The stem is centerless-ground and hard-chromed, providing a mirror-finish surface that reduces friction with the valve guide, enhances oil retention, and drastically improves resistance to scuffing and wear. For an in-depth look at valvetrain metallurgy, consider this resource on engine valvetrain component materials.

Precision Oversize Design for Quantifiable Flow Gains

The “+1mm” specification is the performance cornerstone of this valve set. Increasing the exhaust valve diameter from the stock 26mm to 27mm provides a ~7.5% increase in valve head area. This is not a trivial gain. In a high-RPM, naturally aspirated engine like the 4AGE, exhaust scavenging is paramount. A larger valve allows more spent combustion gases to exit the cylinder more rapidly and completely. This reduces pumping losses, lowers residual exhaust gas concentration (reducing the chance of detonation), and creates a stronger depression in the cylinder to pull in a denser fresh air/fuel charge during the overlap period. The benefits are tangible: a broader power band, increased peak horsepower, and improved throttle response.

However, simply making a valve larger is insufficient. The BC3363S-8 is engineered with a precise back-cut angle on the underside of the valve head. This aerodynamic profiling helps guide airflow around the valve as it lifts off the seat, reducing turbulence and improving flow efficiency at low and mid-lift points. This attention to detail ensures you realize the full potential of the increased diameter, translating directly into dyno-proven results.

Key Performance Benefits:

• Increased Exhaust Flow: +1mm oversize design reduces exhaust restriction for higher volumetric efficiency and peak power.
• Enhanced Durability: Forged EV8+ stainless steel construction resists thermal fatigue, creep, and stem wear far beyond OEM capabilities.
• Superior High-RPM Stability: Robust material and precision balancing contribute to valvetrain harmony at extended rev limits.
• Reduced Maintenance Interval: Hard-chromed stem and premium material significantly extend service life under extreme conditions.
• Direct Performance Upgrade: A bolt-in component that addresses a primary airflow bottleneck in the 4AGE platform.

Vehicle Fitment & Installation Prerequisites

The BC3363S-8 is engineered as a direct-fit component for the 16-valve 4AGE engine platform, but its oversize nature mandates specific machining work for proper installation and performance. This is not a “drop-in” part for a stock, unmodified head.

Vehicle Fitment

Primary Application: Toyota 4AGE 16-valve engines, including those found in:

– AE86 Corolla (GT-S, Trueno, Levin)

– AW11 MR2 (first generation)

– AE92/AE101 Corolla variants with the 4A-GE

– Various other Toyota models equipped with the 4A-GE 16v engine.

Critical Installation Notes:

1. Seat Machining is Mandatory: The cylinder head exhaust valve seats must be professionally machined (cut) to match the new 27mm valve diameter and the specific valve seat angle of the Brian Crower valves (typically 45 degrees). The seat must also be widened appropriately to position the valve correctly in the chamber.

2. Valve Guide Clearance Check: While the stems are standard size, the clearance with existing valve guides must be verified to meet manufacturer specifications (typically 0.001″ – 0.003″).

3. Chamber & Piston Clearance: With a larger valve head, clearance between the valve and the piston crown must be checked during assembly, especially in engines with high-lift camshafts or milled heads. A clay clearance check is strongly recommended.

4. Valve Spring Compatibility: The use of these performance valves, especially with higher-lift camshafts, necessitates matching high-performance valve springs (such as Brian Crower’s BC0610 kit) to prevent valve float and ensure proper valve control.

Technical Specifications & Integration Data

Final Assembly & Tuning Considerations

Integrating the BC3363S-8 valves is the start of a systemic upgrade. To realize their full potential and ensure engine safety, the valvetrain must be treated as a complete system. This necessitates matching performance valve springs and retainers capable of handling the increased mass (if any) and the elevated RPM limits these valves are designed for. Furthermore, camshaft selection becomes even more critical; a performance cam profile will leverage the improved exhaust flow to generate greater power. Always perform a thorough post-machining cleaning of the cylinder head to remove all metallic debris before assembly. Finally, proper break-in procedures for the new valve seat interface are essential—follow a conservative engine break-in routine with varying RPM loads to allow the valves to correctly seat themselves.

In summary, the Brian Crower BC3363S-8 valve set is a professional-grade solution for the serious 4AGE enthusiast. It substitutes a critical point of failure with a component of immense strength and flow potential. By combining advanced metallurgy with precision oversize engineering, it provides a foundational upgrade that supports higher power outputs, increased RPM, and relentless reliability. Its installation requires professional machining and systematic valvetrain planning, but the reward is an engine that breathes with greater authority and endures with unwavering confidence.
