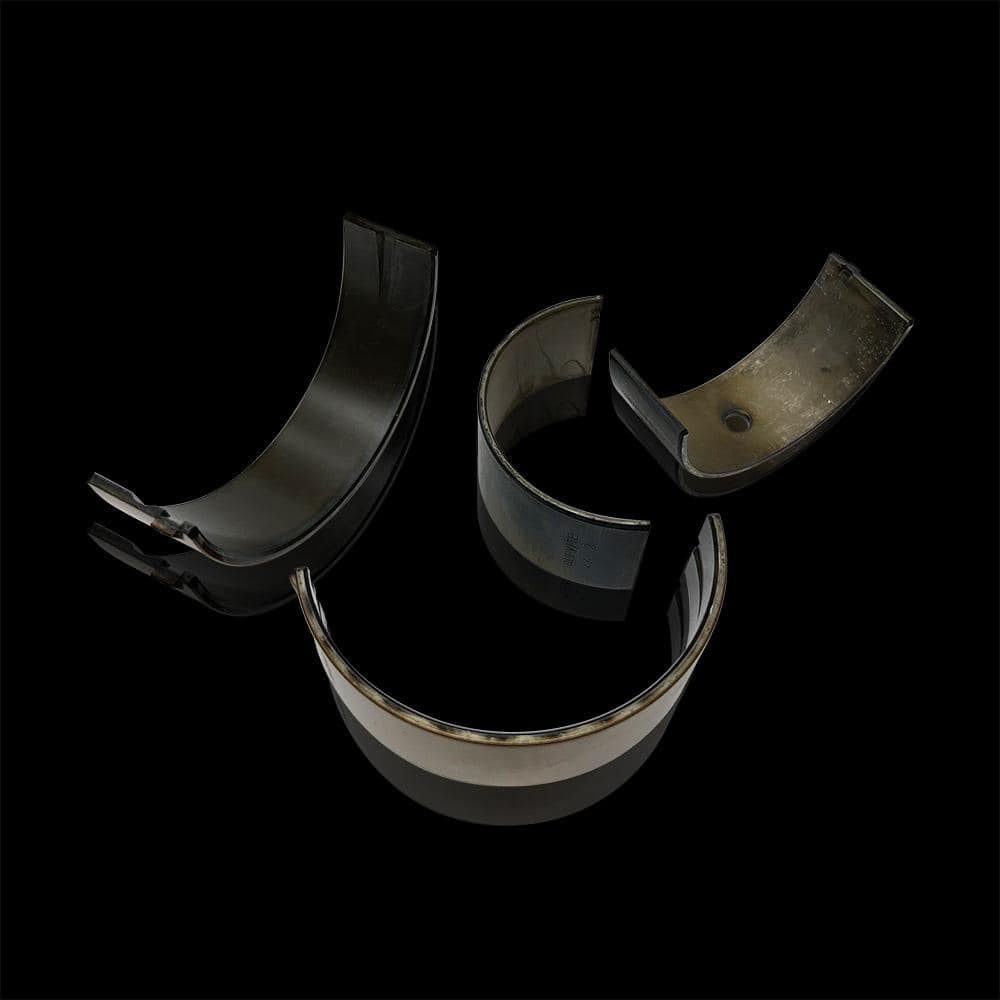

BC4030 – ACL Honda H22A1 Bearing Set (50mm main 93-96) – OEM Sizing

When blueprinting an engine for competition or extreme street performance, the foundation of reliability and power is laid not with flashy turbos or aggressive cams, but with the components that manage the very soul of mechanical motion: the bearings. For the Honda H22A1 engine, a platform revered for its high-revving VTEC character and formidable tuning potential, settling for anything less than absolute precision in the rotating assembly is a concession to failure. The Brian Crower BC4030 ACL Race Series HX Bearing Set is not a replacement part; it is a fundamental upgrade engineered for the specific, punishing demands of high-output and high-RPM operation. Utilizing ACL’s world-renowned Race Series HX (High-Performance) aluminum-tin-silicon alloy with a polymer overlay, this bearing set transforms the critical interface between your crankshaft and engine block from a potential failure point into a bastion of durability and controlled oil film dynamics. For the builder who measures success in sustained RPM and consistent cylinder pressure, the BC4030 is the unequivocal starting point for any serious H22A1 build targeting forced induction, all-motor aggression, or simply unshakable reliability under extreme stress.

Material Science & Engineering: The ACL HX Alloy Advantage

The core differentiator of any performance bearing is its material composition and construction. The BC4030 set employs ACL’s proprietary Race Series HX alloy, a tri-metal design representing the optimal balance between load capacity, conformability, and embeddability for performance applications. The substrate is a high-strength steel back for absolute dimensional stability under load. Bonded to this is a middle layer of aluminum-tin-silicon alloy (AlSn₂₀Si₁), chosen for its excellent fatigue strength and corrosion resistance—critical in engines that may see varied fuel types and high combustion temperatures. The final, functional surface is a precision-applied polymer (polyamide-imide) overlay. This overlay is the operational genius of the design; it provides superior embeddability to trap microscopic contaminants, preventing crankshaft scoring, while its low-friction properties and excellent compatibility with modern engine oils ensure the consistent maintenance of a hydrodynamic oil film. This stands in stark contrast to common OEM-style bi-metal bearings or even some competitive tri-metal bearings with softer overlays that can wash away under extreme pressure, a phenomenon expertly detailed in resources like Engine Builder Magazine’s analysis of bearing technology and clearances. The BC4030’s construction is a deliberate defense against the primary killers of performance bearings: fatigue from cyclic loading, loss of clearance from excessive conformability, and abrasive wear from marginal lubrication.

Precision Sizing for the H22A1: OEM Spec vs. Performance Reality

Marketed under the Brian Crower catalog as part number BC4030, this set is specifically sized to the OEM Honda specifications for the 1993-1996 H22A1 engine, featuring the 50mm main journal diameter. This “OEM sizing” is critical. It means the bearings are manufactured to the nominal standard dimensions, allowing them to be used in a standard, undamaged block with a standard, undamaged crankshaft when the correct clearances are achieved through precise machining. They are not an “undersize” or “oversize” bearing meant for repairing scored components. This focus on OEM dimensions places the responsibility for final clearance where it belongs: on the machinist and builder. For a performance build, the target clearance will often differ from factory service manual specifications, typically trending toward the wider end of the acceptable spectrum to accommodate greater thermal expansion, higher oil flow for cooling, and thicker high-performance oils. The consistency and quality of the ACL HX material allow the builder to target these optimized clearances—often in the 0.0022″ to 0.0028″ range for mains in a performance H22A1—with confidence, knowing the bearing material can support the resulting, slightly thinner oil film under high load.

Performance Benefits & Application Scope

Installing the BC4030 ACL Bearing Set is a proactive engineering decision that addresses the inherent stresses of modifying the H22A1 platform.

• Superior High-Load Durability: The aluminum-tin-silicon intermediate layer offers significantly higher fatigue strength than typical copper-lead or babbit OEM-style bearings, directly resisting the pounding from increased cylinder pressures from turbocharging, supercharging, or high-compression pistons.
• Enhanced Contaminant Control: The polymer overlay’s embeddability acts as a final defense, capturing microscopic particles that would otherwise circulate and cause abrasive wear on journals and bearing surfaces, extending the life of the entire rotating assembly.
• Optimal Oil Film Stability: The surface properties of the HX overlay promote excellent oil adhesion and maintenance of the critical hydrodynamic wedge, even under high-RPM, high-G-force conditions where oil starvation can begin at the bearings.
• Broad Compatibility: These bearings are engineered to perform with both conventional synthetic and mineral-based performance oils, providing flexibility for break-in procedures and final lubricant choice.
• Foundation for Precision: By providing a dimensionally perfect and consistent base, they allow the machinist and assembler to achieve the exact, measured clearances required for a blueprint-level engine build, where every thousandth of an inch is accounted for.

The application is clear: any H22A1 build where output will exceed factory limits, RPM will be consistently raised, or where absolute maximum longevity is desired in a stressed engine. This includes NA builds with high-compression pistons and aggressive camshafts, turbo/supercharger applications of any boost level, and dedicated road-racing or time-attack engines that live at high RPM under sustained lateral G-forces.

Vehicle Fitment & Critical Installation Notes

Vehicle Fitment: This BC4030 bearing set is engineered specifically for the Honda H22A1 engine as found in the following applications:

Primary Application: 1993-1996 Honda Prelude VTEC (North American and relevant international markets) equipped with the H22A1 engine code.

Engine Swap & Compatibility Note: While designed for the H22A1, this 50mm main bearing set is also dimensionally correct for other H-Series engines sharing the same main journal size and crankshaft specification. However, it is the builder’s responsibility to verify specific engine internal specifications (crank part number, block casting) for non-H22A1 applications. Always match bearing sets to the actual measured dimensions of your machined components, not just vehicle model year.

Installation Imperatives: Performance bearings demand performance installation practices. The block and crankshaft must be professionally cleaned, inspected, and measured for out-of-round and taper. Final clearances must be measured using a precision micrometer and bore gauge (or plastigauge for verification), not assumed. The crankshaft and bearing saddles must be lubricated with the assembly lubricant or engine oil specified for your break-in procedure prior to final torquing. Following the factory service manual for bolt torque sequences and values—typically a multi-stage torque-plus-angle procedure for main cap bolts—is non-negotiable. Remember, the bearing is only one part of the system; correct clearances, surface finish, and lubrication are the other, equally critical variables.

Technical Specifications & Configuration

Note: Specifications are based on manufacturer data. Always confirm part number and application with your supplier prior to purchase, and validate all dimensions during the engine machining and assembly process.
