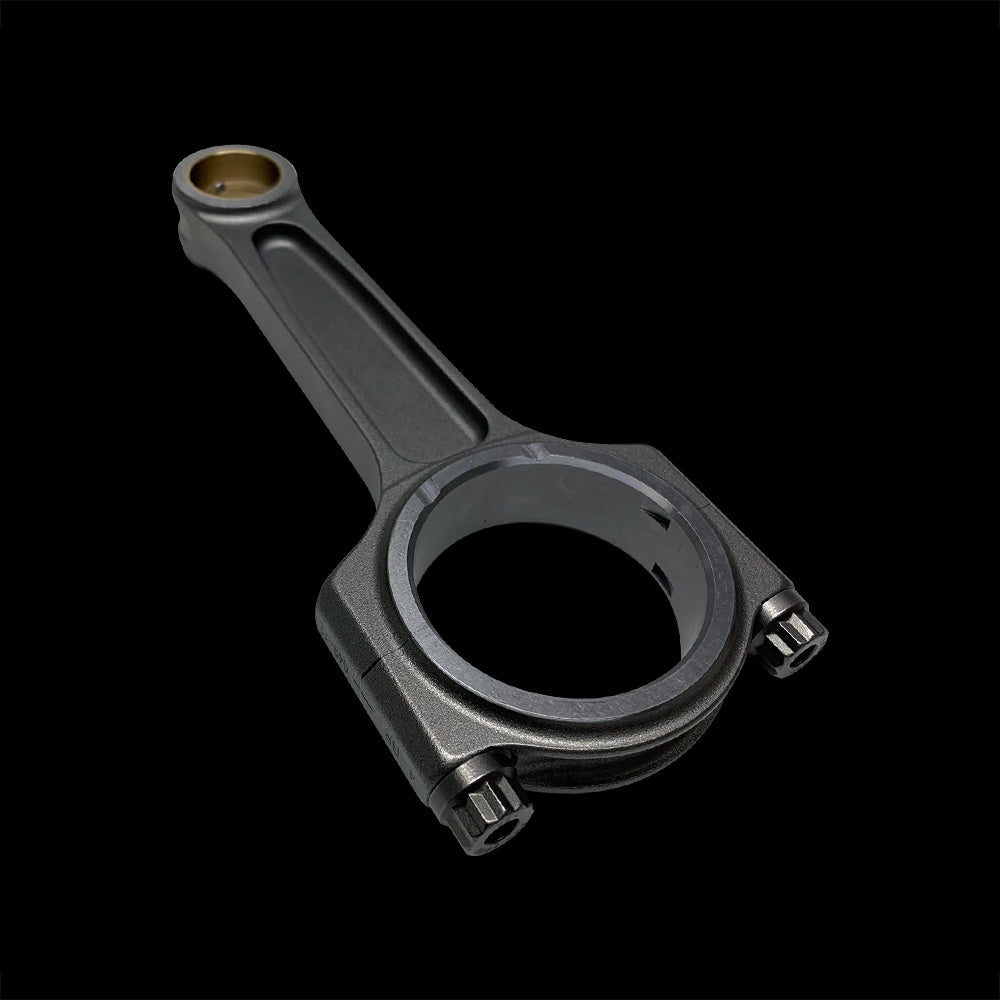

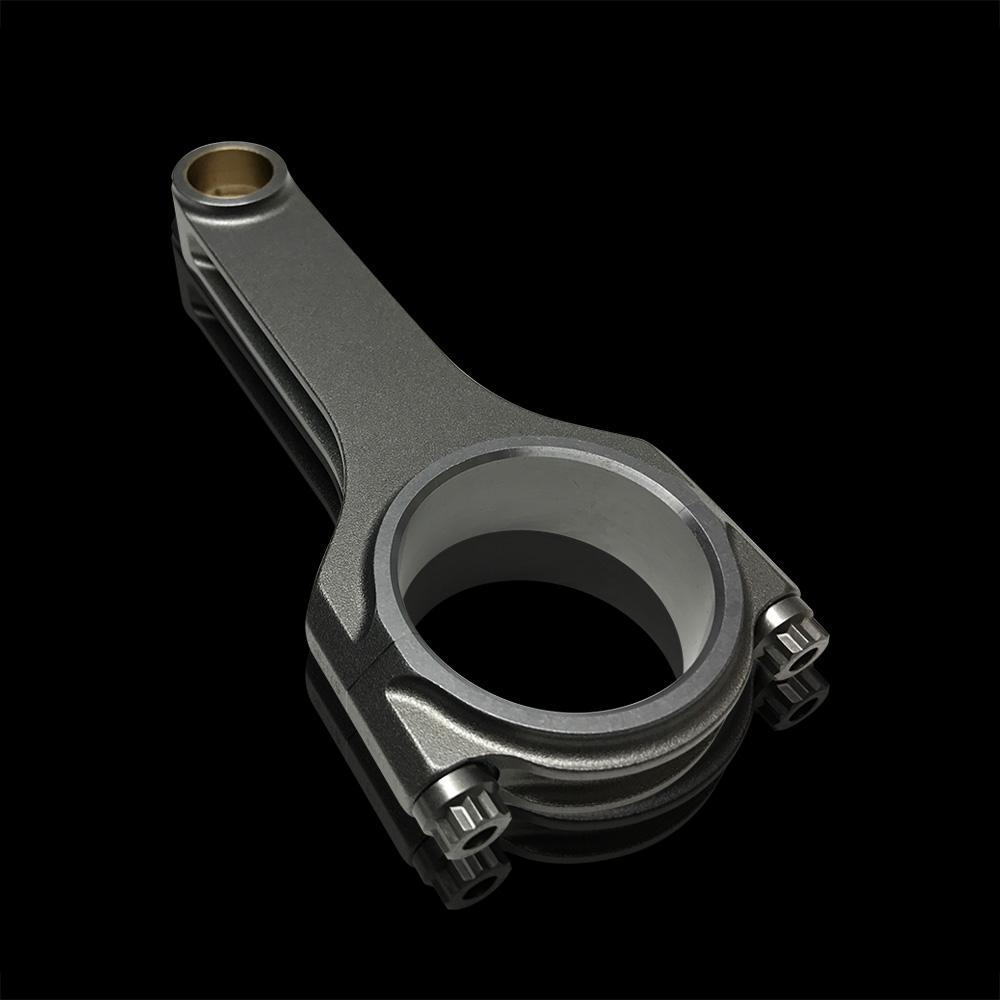

BC6267 – Brian Crower ProH625+ Connecting Rods w/ARP 625+ Fasteners for Nissan VK56
For the engineer or builder seeking to extract the ultimate in reliability and power potential from the Nissan VK56 V8, the factory connecting rods represent a critical point of failure. The BC6267 ProH625+ Connecting Rod Set from Brian Crower, equipped with ARP Custom Age 625+ fasteners, is engineered to transcend this limitation. This is not merely an upgrade; it is a foundational re-engineering of a core rotating assembly component. Designed for forced induction, high-RPM, or extreme nitrous applications, these rods transform the VK56’s robust architecture into an unyielding platform for four-digit horsepower. Every facet of the BC6267, from its proprietary alloy to its precision machining and fastener technology, is optimized for one purpose: to provide an absolute margin of safety under conditions that would catastrophically fail lesser components.
Material Science: The ProH625+ Alloy Advantage
The cornerstone of the BC6267’s performance is Brian Crower’s proprietary ProH625+ vacuum-remelted, forged steel alloy. This material is selected for its exceptional combination of ultimate tensile strength (UTS) and fatigue endurance limit, properties far exceeding those of standard 4340 or even premium 300M steels. The vacuum remelting process eliminates impurities and gas inclusions, creating a metallurgically homogeneous billet with a uniform grain flow. When forged under extreme pressure and heat into the rod’s final shape, this process aligns the grain structure to follow the rod’s contours, significantly enhancing its resistance to cyclic loading and shock. The result is a connecting rod with a tensile strength rating exceeding 260,000 PSI, providing a monumental safety factor that allows builders to confidently explore power levels and cylinder pressures previously considered untenable for the VK56 platform.
Precision Manufacturing & Critical Design Geometry
Superior material is meaningless without flawless execution. Each BC6267 rod undergoes CNC machining to exacting tolerances, ensuring perfect consistency in center-to-center length, big end bore roundness, and small end pin fit. This consistency is paramount for maintaining even cylinder compression, balanced dynamic forces, and optimal piston deck height across all eight cylinders. The beam profile is computer-optimized using Finite Element Analysis (FEA) to manage stress concentrations at the critical beam-to-big-end and beam-to-small-end junctions. Furthermore, the rods feature a stepped, profile-ground design at the big end cap interface. This “cracked cap” or fractured cap technology, achieved through a controlled splitting process, guarantees a perfect, unique fit between the cap and rod body. This method creates an irregular mating surface that, when torqued together, locates with absolute precision, eliminating cap walk and enhancing the structural integrity of the entire assembly under load.
ARP Custom Age 625+ Fastener System: The Final Link
An investment in a premium connecting rod is compromised by inferior fasteners. Brian Crower addresses this by including a complete set of ARP Custom Age 625+ rod bolts and nuts as standard equipment. ARP’s 625+ alloy represents the pinnacle of fastener technology, with a clamp load capability and fatigue resistance that surpasses even their renowned 2000 series fasteners. The “Custom Age” refers to a proprietary thermal aging process that stabilizes the material’s microstructure, preventing relaxation and clamp load loss over time and thermal cycles. This ensures the big end bearing crush and cap alignment remain constant, a non-negotiable requirement for maintaining oil clearance and preventing catastrophic bearing failure in high-horsepower applications. The integration of this fastener system completes a fully realized, no-compromise rotating assembly solution.
- Unmatched Tensile Strength: ProH625+ alloy provides a >260,000 PSI tensile strength for an immense safety margin at extreme power levels.
- Optimal Weight & Strength Ratio: Precision forging and machining remove unnecessary mass while reinforcing high-stress areas, reducing reciprocating weight for improved engine response without sacrificing durability.
- Absolute Consistency: CNC machining ensures identical center-to-center length and bore dimensions for perfect engine balance and cylinder-to-cylinder uniformity.
- Superior Fastener Technology: Included ARP 625+ fasteners offer the highest available clamp load and resistance to fatigue, securing the rod big end under colossal cylinder pressures.
- Fractured Cap Design: Guarantees a perfect, zero-shift fit between the rod and cap for ultimate big-end bore stability and bearing alignment.
- Broad Application Coverage: Engineered to fit all common variants of the Nissan VK56 engine family, making it the definitive rod upgrade for the platform.
Vehicle Fitment & Application Notes
The BC6267 ProH625+ Connecting Rod set is engineered as a direct, drop-in replacement for the OEM rods in the following Nissan and Infiniti vehicles equipped with the VK56 V8 engine. It is critical to verify engine identification (VIN code VK56DE or VK56VD) prior to purchase. These rods are designed for high-performance street, track, and competition use where factory components are a known liability.
Primary Vehicle Fitment: Nissan Armada (2004-2015), Nissan Titan (2004-2015), Nissan Pathfinder (2008-2012 with V8), Infiniti QX56 (2004-2010), Infiniti QX80 (2011-2019). Engine Fitment: All VK56DE and VK56VD engine variants. For builders engaged in stroker or displacement-increasing projects, consulting with Brian Crower or your engine machinist is essential to confirm wrist pin diameter and rod length compatibility for custom piston configurations. Proper installation by a qualified technician using a precision torque wrench and the specified ARP Ultra-Torque fastener lubricant is mandatory to achieve design-specified clamp load.
Technical Specifications & Installation Data
The following table details the critical dimensions and installation specifications for the BC6267 Connecting Rod set. Adherence to these specifications is non-negotiable for achieving the designed performance and reliability.
| Specification | Measurement / Detail |
|---|---|
| Brian Crower Part Number | BC6267 |
| Center-to-Center Length | 150.0mm (Stock Dimension) |
| Big End Bore Diameter | 52.0mm |
| Small End Bore Diameter (Wrist Pin) | 22.0mm |
| Rod Bolt Size & Thread | ARP Custom Age 625+ (Included) |
| Fastener Torque Specification | Refer to latest ARP data sheet using ARP Ultra-Torque lubricant. Typically 75-85 ft/lbs in a multi-stage process. |
| Material | ProH625+ Vacuum Remelted Forged Steel |
| Weight (Per Rod, Approx.) | Competitively balanced set; weight is optimized for strength, not necessarily the absolute minimum. |
| Cap Retention Method | Fractured (Cracked) Cap Design |
In the realm of high-performance VK56 engine building, selecting components that offer a genuine engineering advantage is paramount. The BC6267 set provides that advantage at the most fundamental level. For a deeper technical analysis of the VK56 platform’s capabilities and challenges, consider reviewing this authoritative resource on unlocking the Nissan VK56 V8’s power potential. When your build strategy demands absolute confidence in the bottom end, the Brian Crower ProH625+ Connecting Rods are the definitive choice, engineered to be the strongest link in your power chain.
