BC6429 – Ford Coyote 5.933″ – ProHD Series w/ARP2000 7/16″ Fasteners w/OEM BE Bore

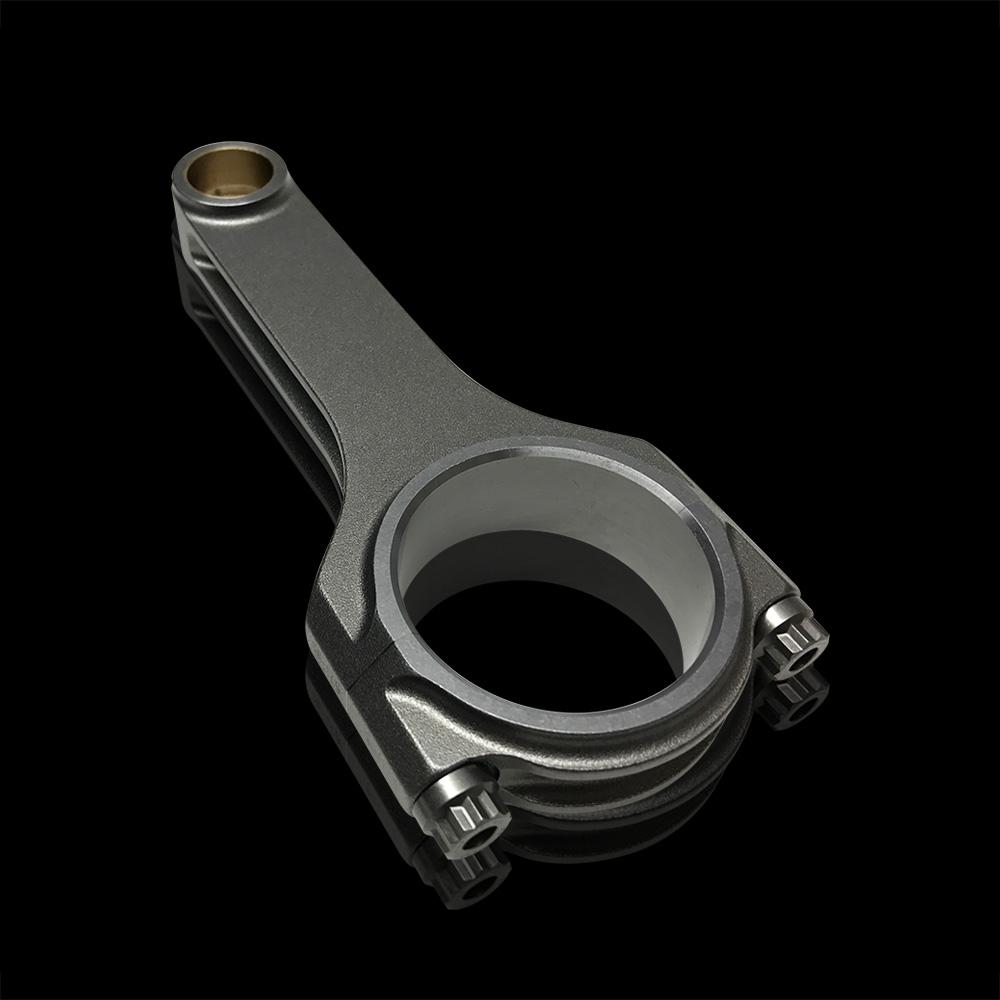

In the relentless pursuit of horsepower and durability, the connecting rod stands as a sentinel between controlled combustion and catastrophic failure. For builders of the modern Ford Coyote 5.0L platform—an engine renowned for its high-revving, power-dense architecture—the stock powdered metal rods become the primary limiting factor well before the block or crankshaft concede. The Brian Crower BC6429 ProHD Series Connecting Rod Set is engineered to obliterate that limit. Designed specifically for the OEM 2.244″ journal crankshaft with a center-to-center length of 5.933 inches, these rods are not merely an upgrade; they are a foundational re-engineering of the rotating assembly’s most critical link. Constructed from premium 4340 chromoly steel, machined to aerospace tolerances, and secured with legendary ARP 2000 series 7/16″ fasteners, the BC6429 transforms the Coyote’s bottom end from a potential liability into an unshakable asset for forced induction, high-RPM naturally aspirated, and severe-duty applications.

Material Science and Metallurgical Foundation

The choice of material is the first and most critical decision in any performance component. Brian Crower selects premium 4340 chromoly steel for the BC6429 rods, a nickel-chromium-molybdenum alloy celebrated for its exceptional strength-to-weight ratio and superb fatigue resistance. This is not merely “steel”; it is a forged billet material that undergoes a rigorous heat-treating process to achieve a optimal hardness rating, typically in the range of 32-34 HRC on the Rockwell C scale. This specific treatment ensures the rod possesses the necessary tensile strength—often exceeding 220,000 PSI—to withstand the immense tensile and compressive loads generated by high cylinder pressure, while retaining a crucial degree of ductility to absorb shock loads without becoming brittle. The forging process aligns the metal’s grain structure along the contours of the rod, enhancing its integral strength far beyond what is possible with a cast or even a generic forged unit. This metallurgical pedigree is what allows the ProHD series to reliably support the 1000+ horsepower thresholds commonly demanded of built Coyote engines.

ProHD Design: Geometry for Absolute Control

Beyond material, geometry is destiny. The BC6429 maintains the OEM 5.933-inch center-to-center length and utilizes an OEM specification “BE” bore for the wrist pin, ensuring direct piston compatibility without modification. This precision-centric design philosophy extends to the critical beam profile. The ProHD series features a uniquely designed, machined I-beam structure that is optimized for the specific load dynamics of the Coyote’s stroke and rod ratio. This is not a generic blank; the beam’s width, thickness, and transition radii are computer-optimized and CNC-machined to distribute stress evenly, eliminating focal points for crack initiation. The machining process also guarantees exact weight-matching, typically to within ±1 gram per rod set, which is imperative for harmonic balance at engine speeds exceeding 8000 RPM. The small end is precision-broached and honed for a perfect, consistent fit on the piston pin, while the large end is machined to exacting tolerances for perfect concentricity on the crankshaft journal.

The Fastener Advantage: ARP 2000 7/16″ Cap Screws

The most perfectly forged rod is only as strong as its weakest point: the fastener clamping the cap. Brian Crower eliminates this vulnerability by including ARP 2000 series 7/16″ cap screws as standard equipment. ARP 2000 fasteners are manufactured from a proprietary 8740 chrome moly steel, heat-treated using ARP’s unique process to achieve a 200,000 PSI tensile strength. The larger 7/16″ diameter (compared to many stock-style fasteners) provides a greater clamp load area, ensuring the rod cap remains absolutely rigid and registered under extreme combustion pressures. These fasteners are torque-to-yield in their precision, requiring a specific lubricant and torque sequence for installation, which guarantees a perfectly consistent and reliable clamp load across all cylinders. This partnership between Crower’s rod and ARP’s bolt represents a symbiotic relationship of peak component performance.

• Uncompromised Durability: 4340 chromoly steel forging and heat-treating provide fatigue strength for sustained high-horsepower and high-RPM operation.
• Precision Engineering: CNC-machined to exacting tolerances for perfect weight-matching and bore concentricity, ensuring balanced rotational dynamics.
• Maximum Fastener Integrity: Included ARP 2000 7/16″ fasteners deliver ultimate clamping force and reliability at the critical rod-cap junction.
• Optimal Piston Compatibility: OEM BE bore and 5.933″ length allow for use with a wide range of performance pistons designed for the Coyote platform without modification.
• Proven High-Performance Fitment: Designed specifically for the Ford Coyote 5.0L with OEM journal size, making it the definitive choice for builds targeting 800-1500+ horsepower.

Vehicle Fitment and Application Specifics

The BC6429 ProHD rod is engineered for a specific and critical application: the Ford 5.0L “Coyote” V8 engine utilizing the OEM 2.244-inch crankshaft journal diameter. Its 5.933-inch length and BE wrist pin bore are designed for direct, no-compromise compatibility. This rod set is the cornerstone for building an ultra-resilient rotating assembly in the following applications:

• 2011-2023 Ford Mustang GT 5.0L
• 2011-2023 Ford F-150 5.0L
• 2015-2020 Ford Shelby GT350 (Note: Voodoo engine uses different journal size; verify application)
• Various aftermarket and racing applications built around the Coyote architecture (e.g., drag race, road race, off-road)
• Forced induction builds (turbocharger, supercharger, nitrous oxide) where cylinder pressure is dramatically increased.
• High-RPM naturally aspirated builds where piston speed and inertial stresses are the primary concern.

Critical Note: Always verify crankshaft journal size and desired piston pin diameter before purchase. While the BC6429 uses the common OEM specifications, some aftermarket cranks may use a different journal size.

Technical Specifications: The Data of Dominance

The following table details the precise engineering specifications of the Brian Crower BC6429 ProHD Connecting Rod Set. These figures are the quantitative proof of its performance pedigree.

Selecting the correct connecting rod is a decision that underpins the entire character and capability of a performance engine. The Brian Crower BC6429 ProHD Series set provides the material integrity, precision manufacturing, and component quality required to harness the full potential of the Ford Coyote platform. It represents a calculated investment in mechanical certainty, allowing tuners and builders to focus on making power with the confidence that the bottom end is not just adequate, but dominant. For further technical reading on the dynamics of rod selection and engine balancing, consult authoritative resources such as EngineLabs, which provides deep-dive analysis into rotating assembly theory and practice.
