In the high-stakes world of performance engine building, the connecting rod is a critical linchpin, responsible for transmitting force from the piston to the crankshaft with unerring precision. For BMW M3 enthusiasts and professional builders targeting elevated power levels—whether through forced induction, high-RPM operation, or aggressive tuning—the stock connecting rods often represent a fundamental weak link. The BC6788 ProH625+ Connecting Rod kit, equipped with ARP Custom Age 625+ fasteners, is engineered to obliterate this limitation. Designed as a direct, no-compromise replacement for the M52B32, S52USB32, M54B30, S52USB30, and M20B25 engines found in various BMW M3 and performance models, this component set embodies a fusion of advanced metallurgy, precision machining, and proven racing pedigree. It is not merely an upgrade; it is an essential investment for any build where failure is not an option, ensuring the bottom end can withstand the immense stresses of modern power ambitions.
ProH625+ Connecting Rods: Engineering for Extreme Duty

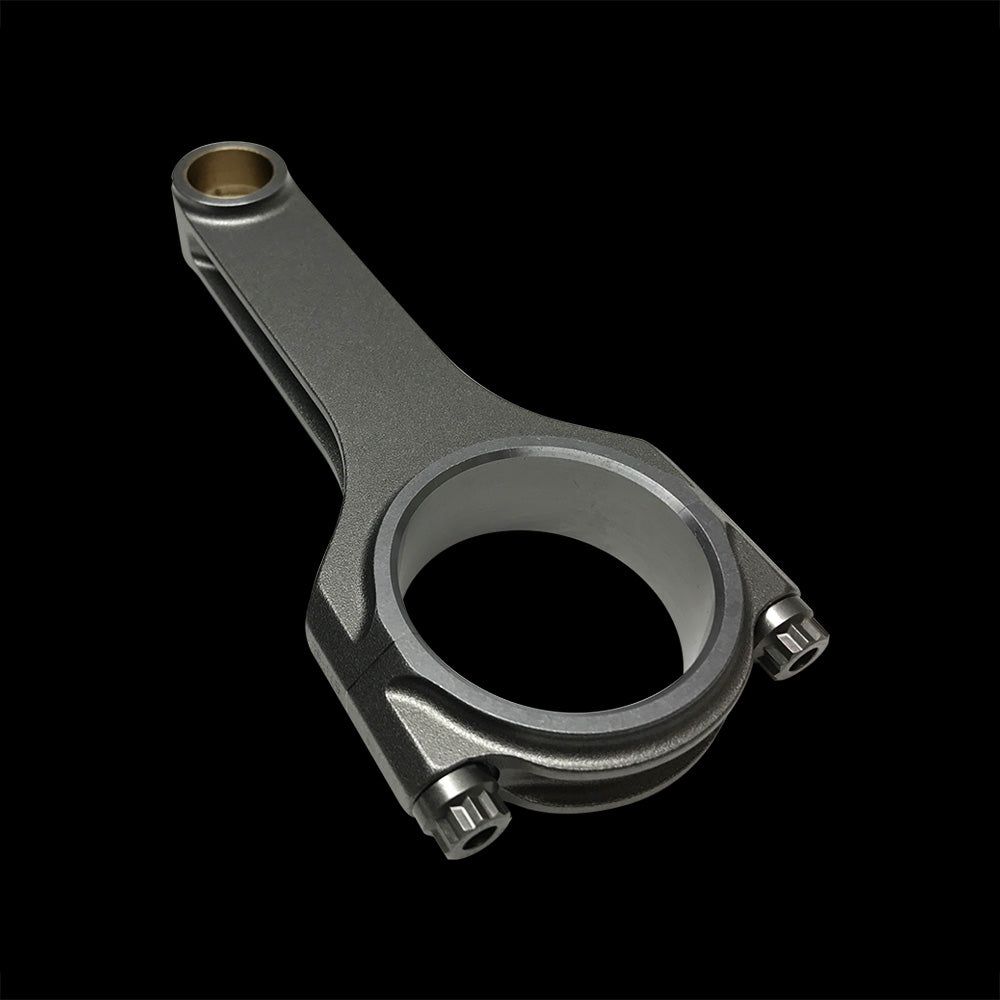

The ProH625+ connecting rod is conceived from the ground up for durability under phenomenal loads. Unlike OEM rods, which are designed for a balance of cost, weight, and factory power limits, the ProH625+ utilizes a proprietary alloy steel, often referred to in the industry as a premium 4340 variant, but subjected to a specific heat-treating and shot-peening protocol denoted by the “H625+” designation. This process elevates the material’s ultimate tensile strength well beyond 200,000 psi while maintaining crucial ductility. The rod beam is designed using finite element analysis (FEA) to optimize stress distribution, eliminating potential failure points at the beam-to-cap junction and around the pin and crank bores. Each rod is machined from a solid billet, ensuring grain flow continuity and structural integrity far superior to forged or cast counterparts. The bearing bore and piston pin bore are honed to micron-level tolerances, guaranteeing perfect oil clearance and alignment, which is paramount for reducing parasitic friction and preventing premature bearing wear in high-output applications.
Precision Application for BMW M52, S52, M54, and M20 Engine Families
Specificity is key in performance parts. The BC6788 kit is not a universal fitment; it is meticulously engineered to match the exact crank journal diameters, pin diameters, center-to-center lengths, and balancing requirements of the targeted BMW inline-six engines. This includes the 3.2L variants (M52B32 and the North American S52USB32), the 3.0L engines (M54B30 and S52USB30), and the revered 2.5L M20B25. This ensures a drop-in installation that maintains proper piston deck height and squish band geometry, preserving combustion efficiency. The rods are weight-matched as a set to within ±1 gram, a critical step for achieving smooth engine operation at revolutions exceeding 7,500 RPM, a common target for track and competition builds. This attention to application-specific detail eliminates guesswork and machining adjustments, providing a plug-and-play solution for builders.
Material Science and Construction of the ProH625+ Alloy
The “H625+” nomenclature signifies a multi-stage thermal cycling and aging process applied to the premium alloy steel. After the initial forging and machining, the rods undergo a controlled austenitizing, quenching, and tempering sequence to achieve a core hardness optimized for fatigue resistance. Subsequently, a specialized aging process stabilizes the microstructure, relieving internal stresses induced during machining and preventing dimensional shift over time. The final step is an aggressive shot-peening treatment over the entire rod, including the radii and bolt boss areas. This cold-works the surface, inducing compressive stresses that dramatically increase resistance to crack initiation—the primary failure mode in high-cycle fatigue scenarios. The result is a component with an exceptionally high endurance limit, meaning it can withstand the repeated stress cycles of high-boost, high-RPM operation virtually indefinitely, a claim OEM rods cannot support.
ARP Custom Age 625+ Fasteners: The Foundation of Clamping Integrity
The strength of a connecting rod assembly is only as good as its fasteners. Bundled with the ProH625+ rods are ARP’s Custom Age 625+ rod bolts, the industry benchmark. These are not standard hardware; they are manufactured from a proprietary nickel-chromium-molybdenum alloy (ARP’s 625+ material) that undergoes a unique thermal “aging” process. This process increases the fastener’s yield strength to approximately 220,000 psi, while its design incorporates a rolled thread for superior fatigue life compared to cut threads. The clamping force provided by these bolts is vastly superior to OEM, which prevents cap walk and fretting under extreme combustion pressures. Proper installation with the specified ARP Ultra-Torque lubricant and torque-plus-angle procedure ensures a consistent, precise preload that remains stable through thermal cycles, securing the rod big end around the crankshaft with absolute authority. This combination of rod and fastener creates a singular, monolithic unit under stress.
Comprehensive Benefits, Exact Fitment, and Technical Specifications
The integration of ProH625+ rods with ARP 625+ fasteners delivers a systemic upgrade to the engine’s rotating assembly. The benefits extend beyond simple strength, impacting overall engine performance, reliability, and build potential.
Key Performance and Reliability Benefits
- Extreme Fatigue Resistance: The H625+ treatment and shot-peening provide an endurance limit capable of supporting sustained high-RPM operation and high cylinder pressures from turbocharging or supercharging, effectively eliminating connecting rod failure as a concern.
- Optimal Weight and Strength Ratio: Precision machining removes unnecessary material only where possible, resulting in a rod that is both lighter than many OEM units and exponentially stronger, reducing reciprocating mass for improved throttle response.
- Perfect Balance and Harmony: Each set is weight-matched to infinitesimal tolerances, drastically reducing destructive harmonics and vibration, which contributes to longer bearing and crankshaft life.
- Enhanced Bearing and Oil Film Stability: The micron-precision bores and rigid structure maintain perfect alignment, ensuring consistent oil clearances and promoting a stable hydrodynamic oil film, critical for preventing spun bearings under load.
- Direct, No-Compromise Fitment: Engineered as a direct replacement for specified engines, requiring no machining of the rod or crank, which simplifies installation and preserves engine geometry.
- Unmatched Fastener Security: ARP 625+ bolts provide clamping force integrity that prevents big-end bore distortion, a common precursor to bearing failure in highly stressed engines.
Detailed Vehicle Fitment
The BC6788 kit is designed for a range of BMW models utilizing the specified engine codes. It is crucial to verify engine code before purchase. Primary applications include, but are not limited to:
BMW M3 (E36): Equipped with the S52USB32 (US 3.2L) or S50B32 (Euro 3.2L) engines. For the US S52, this is a critical upgrade for forced induction builds exceeding 500 horsepower.
BMW 328i/S, 330i/S (E36, E46, E39, E53): Models powered by the M52B28, M52B32 (TU), M54B30, and related variants. An essential upgrade for turbocharged or supercharged applications in these platforms.
BMW M3 (E46) – S54B32 Engine Note: While the S54 is not listed in this specific BC6788 kit, the engineering principles are analogous. This kit specifically fits the S52USB30 and related 3.0L architectures. Always confirm part number compatibility.
BMW 325i/S (E30, E36): Vehicles with the M20B25 engine. A legendary powerplant for forced induction, where the ProH625+ rods provide the foundation for reliable, high-power builds.
General Note: Always cross-reference the engine serial number and displacement. This kit is designed for the 2.5L M20, 3.0L M54/S52USB30, and 3.2L M52/S52USB32 engine families. Installation should be performed by a qualified mechanic familiar with engine assembly procedures and torque specifications.
Technical Specifications Table
| Specification | Detail |
|---|---|
| Part Number | BC6788 |
| Application | BMW M52B32, S52USB32, M54B30, S52USB30, M20B25 |
| Rod Material | Proprietary H625+ Alloy Steel (Premium 4340-type) |
| Manufacturing Process | CNC Machined from Solid Billet, Heat Treated, Shot Peened |
| Fasteners Included | ARP Custom Age 625+ Rod Bolts & Nuts |
| Fastener Tensile Strength | ~220,000 psi |
| Weight Matching Tolerance | ±1 gram per set |
| Big End Bore Diameter | Engine Specific (e.g., ~54mm for M5x/S5x, ~48mm for M20) |
| Small End Bore Diameter | Engine Specific (for corresponding piston pin) |
| Center-to-Center Length | Engine Specific (Maintains stock compression height) |
| Recommended Use | High-Performance Street, Track, Rally, and Competition Engines |
For a deeper technical understanding of connecting rod dynamics, material selection, and their role in engine performance limits, we recommend consulting authoritative resources. An excellent primer on the subject can be found in this comprehensive guide to connecting rod technology from EngineLabs, a high-authority source in the automotive performance community.
In summary, the BC6788 ProH625+ Connecting Rod set with ARP fasteners is the definitive solution for builders of the specified BMW engines who refuse to compromise on bottom-end integrity. It translates advanced materials science into a tangible component that provides the confidence to explore the outermost limits of engine performance, making it an indispensable component for any serious performance build.
