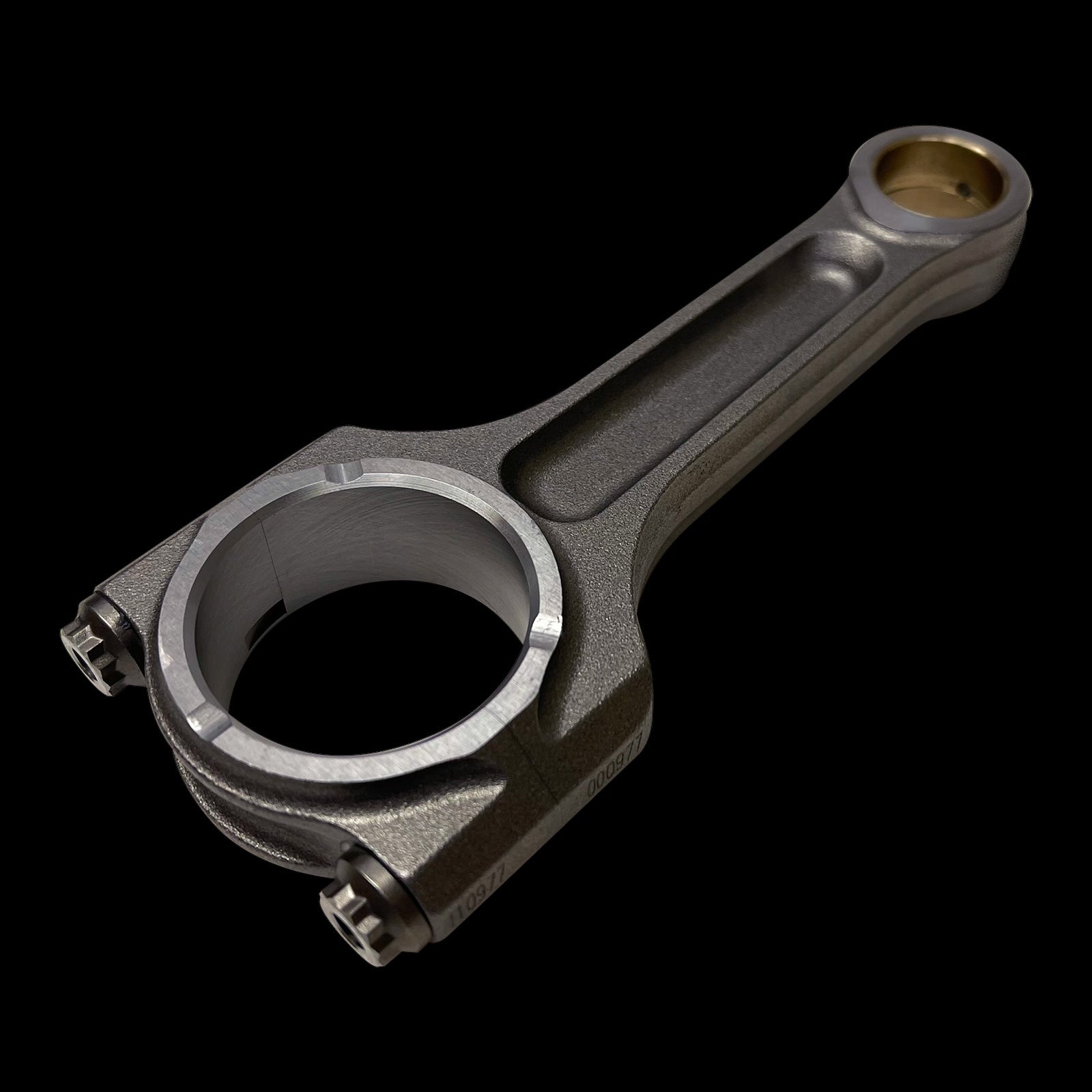

BC6933 – Brian Crower MOAR Connecting Rod Kit for 2017-Up Can-Am Maverick X3

Engineering for the Absolute Limit: The Foundation of Forced Induction Resilience

In the high-stakes realm of performance UTVs, the Can-Am Maverick X3 platform represents a pinnacle of factory engineering, yet it harbors a critical vulnerability under sustained, high-load operation: its stock connecting rods. The factory powdered metal rods, while cost-effective for mass production, operate perilously close to their metallurgical limits in stock turbocharged applications. The pursuit of significant horsepower gains—through turbo upgrades, aggressive tuning, and increased boost pressure—transforms these rods from components into potential projectiles. The Brian Crower BC6933 MOAR (More Overall Area Reinforcement) Connecting Rod Kit is not merely an upgrade; it is a foundational re-engineering of the rotating assembly’s most critical link. Engineered specifically for the 2017 and newer Can-Am Maverick X3 900/1000R engines, this kit, featuring legendary ARP625+ Custom Age 625+ Fasteners, is the definitive solution for builders who equate reliability with absolute power density and rotational integrity.

Material Science and Precision Manufacturing: The Anatomy of a MOAR Rod

The BC6933 rod begins its life as a premium-grade 4340 chromoly steel billet, a material chosen for its exceptional balance of ultimate tensile strength, yield strength, and fatigue resistance. Unlike forged processes that can induce grain flow inconsistencies, Brian Crower’s proprietary CNC machining from solid billet ensures a perfectly homogeneous grain structure throughout the entire rod. This eliminates weak points and directional stress vulnerabilities, providing uniform strength in all axes of load. The “MOAR” design philosophy is evident in the rod’s profile: strategically increased cross-sectional area in the beam and big end without adding parasitic mass. This is achieved through advanced finite element analysis (FEA) that identifies and reinforces high-stress concentration zones, particularly around the pin bore and the radius transitioning to the big end cap.

The cap interface is a masterpiece of precision, utilizing a triple-shear, stepped-broach design for location. This method provides vastly superior cap-to-rod alignment and shear resistance compared to conventional dowel pins or simple fracture-split caps, virtually eliminating cap walk under extreme cylinder pressure. The mating surfaces are finish-honed to a mirror-like tolerance, ensuring perfect, consistent clamp load distribution from the fasteners. Furthermore, each rod is weight-matched to within a ±1 gram tolerance as a set, a critical step for achieving harmonic balance at elevated RPM, reducing bearing load and preventing destructive crankshaft harmonics.

Uncompromised Benefits: The Performance Payoff

Integrating the BC6933 kit transforms the engine’s bottom-end from a liability into its greatest asset. The benefits are systemic and measurable.

• Eliminates the Primary Failure Point: Directly addresses the powdered metal rod failure that plagues modified X3 engines, providing a safety margin well beyond 500+ horsepower applications.
• Superior Fatigue Life: The 4340 chromoly billet and optimized design withstand countless high-load cycles, resisting the micro-cracking that leads to catastrophic fatigue failure in inferior rods.
• Enhanced Dimensional Stability: The CNC billet construction and triple-shear cap retain perfect bore circularity and center-to-center distance under heat and load, ensuring consistent piston placement and ring seal.
• Optimized for High RPM: The weight-matched, balanced design and robust construction allow the engine to safely operate at and beyond its factory redline, crucial for turbo systems that make power in the upper rev band.
• ARP625+ Fastener Assurance: The included bolts represent the pinnacle of fastener technology, with a clamp load far exceeding OEM and even standard ARP2000 hardware, guaranteeing the big end remains a rigid, singular unit.
• Direct OEM Replacement Geometry: Maintains stock rod length and bearing specifications, ensuring correct piston deck height and compatibility with OEM and aftermarket crankshafts and pistons.

Vehicle Fitment: Precision Application

The BC6933 kit is engineered for a direct, no-modification installation into the following platforms. Correct fitment is critical for piston placement and oil clearance.

Primary Application:
• Can-Am Maverick X3 (All Models) 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
• Engine Codes: 900 Turbo, 1000R Turbo (Rotax 900 ACE Turbo, Rotax 1000 ACE Turbo)

Note: This kit is designed for engines utilizing the stock stroke crankshaft. Always verify engine model year and displacement prior to purchase. Installation requires precise bearing clearance measurement and assembly by a qualified performance engine machinist or builder.

Technical Specifications: The Data of Dominance

The Final Component: Professional Installation is Non-Negotiable

The integrity of any performance connecting rod is only as good as its installation. The BC6933 kit demands professional-grade assembly. This includes precise measurement of bearing crush and oil clearance using a dial bore gauge and micrometers, torque sequencing of the ARP625+ fasteners to the specified lubricant and torque value (provided by ARP instructions), and a final check of rod side clearance. Attempting installation without the proper tools, knowledge, and meticulous process jeopardizes the entire engine assembly. For a deeper technical understanding of connecting rod failure modes in high-performance UTVs, we recommend this analysis on UTV connecting rod failure analysis. The BC6933 MOAR Connecting Rod Kit is the unequivocal choice for the serious Can-Am X3 builder, transforming the engine’s most stressed component into its most trusted, laying a foundation for power and reliability that endures.
