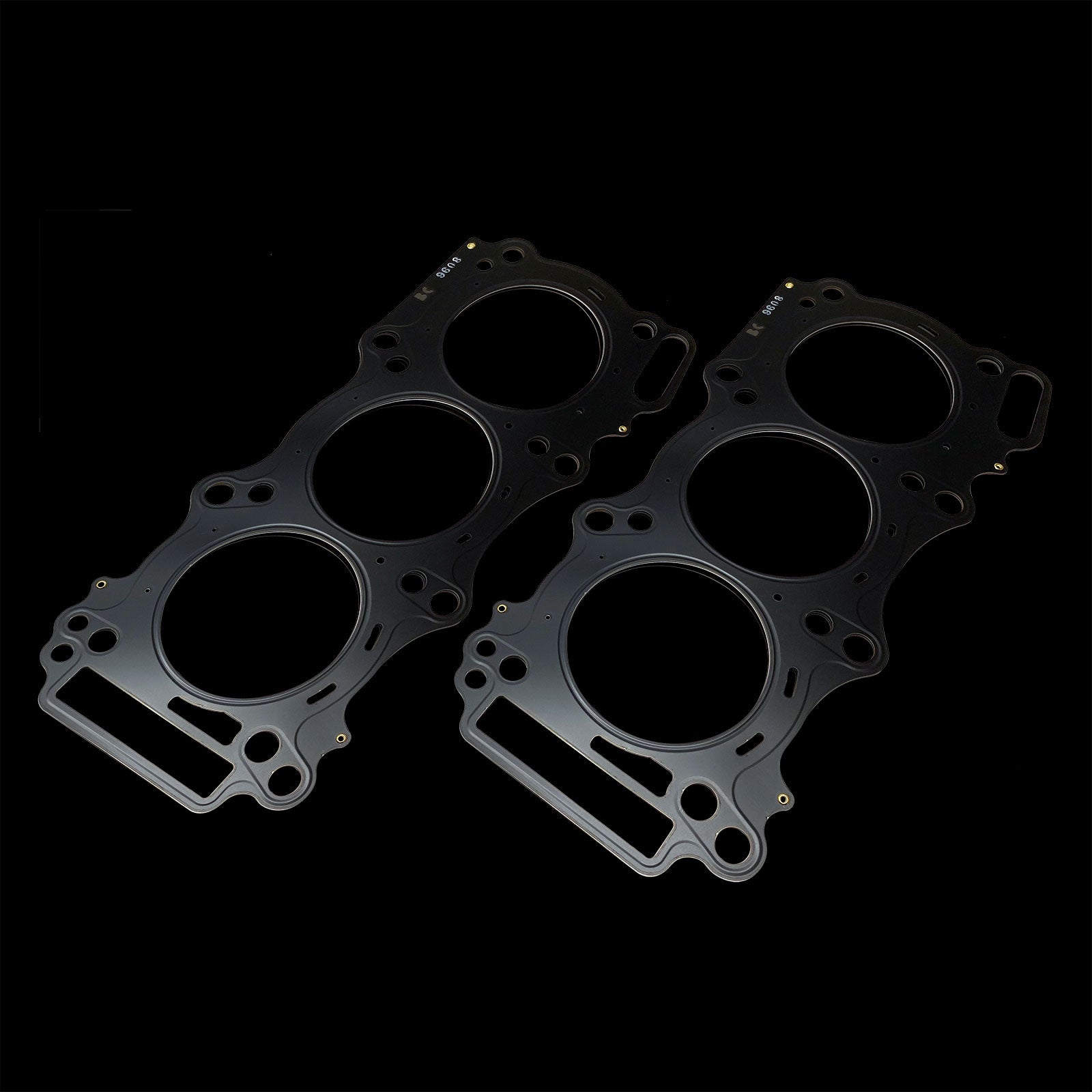

BC8222 – Nissan VQ35DE BC Head Gaskets – 96mm Bore

In the realm of high-performance engine building, the head gasket is not merely a seal; it is a critical structural component that defines the integrity of the combustion chamber and the longevity of your powerplant. For enthusiasts and professional builders pushing the limits of the renowned Nissan VQ35DE engine, the Brian Crower BC8222 Head Gasket stands as the definitive solution. Engineered specifically for the 96mm bore configuration, this multi-layer steel (MLS) gasket is the product of precision manufacturing and advanced material science, designed to withstand extreme cylinder pressures and thermal loads associated with forced induction, high-compression builds, and sustained high-RPM operation. It transcends the role of a simple replacement part, serving as a fundamental upgrade for any VQ35DE destined for duty beyond factory specifications.

Engineering the Foundation: The Role of a Performance Head Gasket

The VQ35DE is celebrated for its robust architecture and tuning potential, but its factory composite gasket becomes a liability under significant stress. The BC8222 addresses this by transforming a potential failure point into a bastion of reliability. Brian Crower’s approach is rooted in understanding the dynamic forces at play—combustion pressure seeking the path of least resistance, thermal expansion warping surfaces, and head lift from aggressive cam profiles or boost. This gasket is engineered to manage these forces with zero compromise. It ensures a perfect, permanent seal between the cylinder head and block, maintaining critical compression ratios and preventing coolant/oil intermix, which are catastrophic failures in performance applications. Choosing the BC8222 is the first and most crucial step in fortifying your VQ’s bottom-end, setting a solid foundation for all other power-adders.

Material Science and Construction: The Multi-Layer Steel Advantage

At the core of the BC8222’s superiority is its Multi-Layer Steel (MLS) construction. Unlike OEM-style composite gaskets, which can degrade and compress over time, an MLS gasket is comprised of multiple thin sheets of specialty steel, each coated with a proprietary elastomer sealing material. This construction offers several critical advantages for the performance builder. First, it provides exceptional resilience against combustion pressure and thermal cycling, recovering its seal after temperature fluctuations that would permanently crush a composite gasket. Second, the steel layers offer superior resistance to “blow-out” in areas between cylinders, a common failure point in high-output VQ engines. The 1.1mm compressed thickness of the BC8222 is meticulously chosen to maintain proper piston-to-valve clearance in most stroker and high-lift cam applications while providing an optimal sealing surface. The precision-stamped 96mm bore is perfectly concentric, ensuring no material overhang into the cylinder that could create hot spots or disrupt flame travel.

Precision Sealing and Application Specifications

Precision is non-negotiable. The BC8222 is manufactured to exacting tolerances, ensuring a perfect fit for the 96mm bore VQ35DE blocks. This bore size accommodates popular overbore configurations, making it ideal for engines that have been refreshed or built for increased displacement. The gasket features strategically placed sealing beads around all fluid passages—coolant jackets and oil galleries—creating multiple micro-seals that prevent intermix. Furthermore, it is designed for compatibility with aftermarket ARP head studs, which are a mandatory companion for any serious build. The clamping force from ARP studs, combined with the MLS gasket’s construction, eliminates head lift and maintains a uniform seal across the entire deck surface, even under extreme cylinder pressures exceeding 30 psi of boost.

• Unmatched Durability: MLS construction withstands extreme pressure & thermal cycling far beyond OEM limits.
• Perfect Bore Match: Precision 96mm bore ensures optimal seal for stock and overbored cylinders.
• Prevents Critical Failures: Eliminates risks of combustion gas leakage, coolant ingress, or oil/coolant intermix.
• Engineered for Boost & RPM: The essential upgrade for turbocharged, supercharged, or high-compression NA builds.
• ARP Stud Compatibility: Designed to work seamlessly with upgraded fastener systems for maximum clamp load.
• Maintains Compression Ratio: Consistent 1.1mm thickness ensures accurate and stable combustion chamber volume.

Vehicle Fitment and Compatibility

The Brian Crower BC8222 Head Gasket is engineered explicitly for the Nissan VQ35DE engine platform. Correct fitment is paramount for performance and reliability. This gasket is a direct replacement for OEM part numbers and is compatible with the following applications. It is crucial to verify your engine’s specific bore size and deck condition before installation.

Primary Applications: Nissan 350Z (2003-2006), Nissan Altima 3.5SE (2002-2006), Nissan Maxima (2002-2006), Infiniti G35 (2003-2006), Nissan Murano (2003-2006), Nissan Pathfinder (2001-2004), and other models utilizing the VQ35DE engine with a 96mm factory bore. For detailed technical insights on the advantages of MLS gaskets in modern performance engines, refer to this resource from EngineLabs.

Installation Protocol and Technical Specifications

Installation of a performance head gasket demands meticulous preparation. The cylinder head and block deck surfaces must be inspected for flatness (within 0.001″ per inch) and finished to a smooth, non-directional texture (RA rating) compatible with MLS gaskets. The surfaces must be clean, dry, and free of any oil or coolant residue. Apply no sealing compounds to the gasket itself. Torque sequences must be followed precisely using a calibrated torque wrench, and with ARP studs, always use the lubricant supplied by ARP and adhere to their specified torque procedure, which typically involves multiple incremental steps and a final angle torque.

Selection and Final Build Considerations

Selecting the BC8222 is a decision that aligns with a build philosophy centered on reliability and performance headroom. It is the correct choice for any VQ35DE project where the power output will exceed 400 wheel horsepower, where forced induction is employed, or where engine speed will consistently approach the 7,500 RPM range and beyond. It pairs seamlessly with Brian Crower’s own suite of valvetrain and rotating assembly components, ensuring total system compatibility. In conclusion, for the builder who views no component as too minor to optimize, the BC8222 Head Gasket is an indispensable investment. It is the robust, precision-crafted barrier that contains your engine’s power, protecting your significant investment in machine work, forced induction systems, and internal components, thereby allowing you to extract the maximum potential from the legendary VQ35DE platform with absolute confidence.
