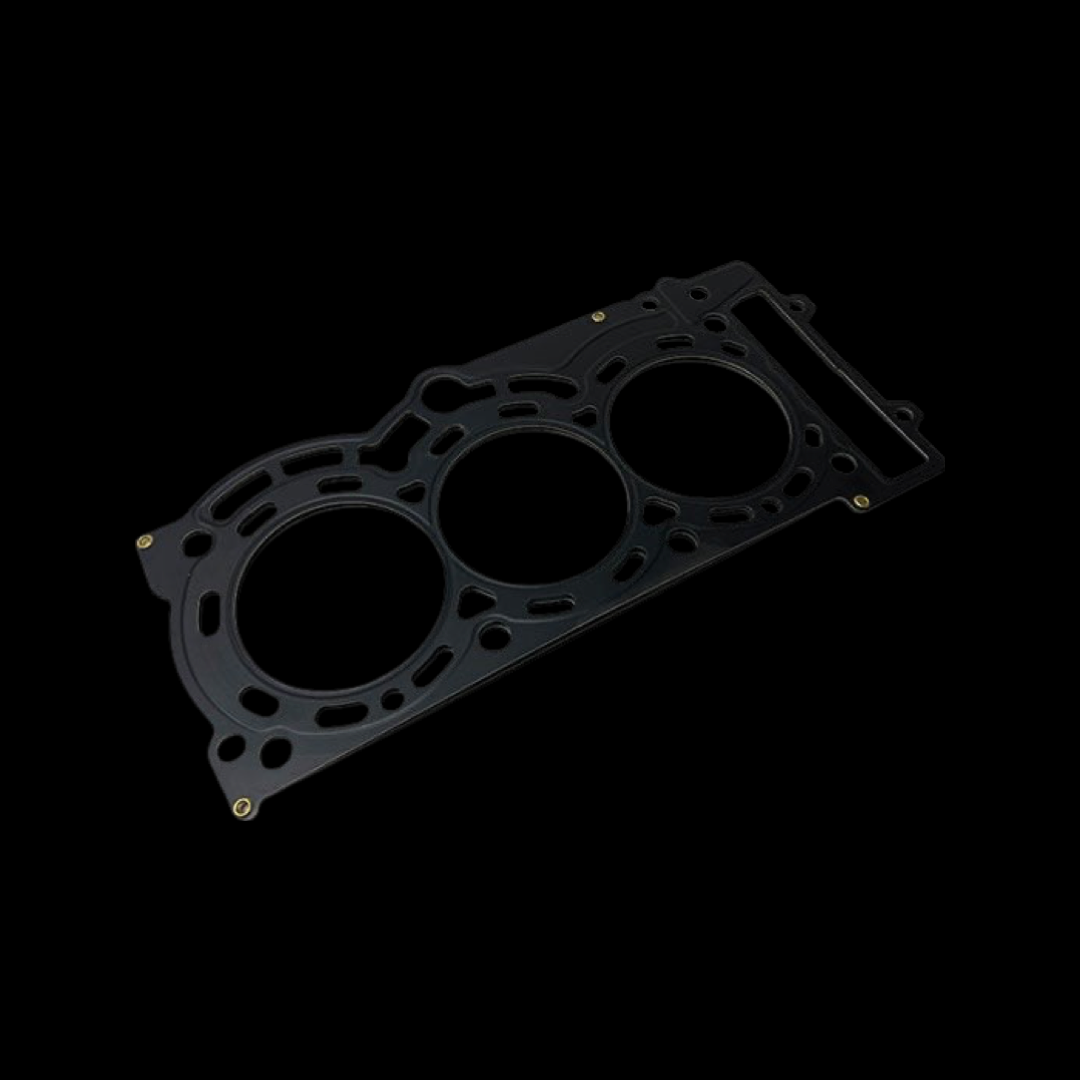

BC8295 – Can-Am X3 MLX for non-O-Ring Case (74-76mm) x .036” for 7/16” head studs Cometic Head Gasket

Engineering Sealing Integrity: The BC8295 Cometic MLS Head Gasket for Can-Am X3 MLX

In the high-strung environment of a turbocharged or aggressively built Can-Am Maverick X3 engine, the head gasket is not a mere seal; it is a foundational component of cylinder head and block interface management. The BC8295 from Cometic Gasket is engineered specifically for the demanding MLX platform utilizing non-O-Ring engine cases and 7/16″ head studs. This Multi-Layer Steel (MLS) gasket represents the pinnacle of sealing technology for 74-76mm bore applications, where traditional composite gaskets are a liability. It is designed for the machinist and builder who demands absolute precision, offering a .036″ compressed thickness that is critical for maintaining proper quench, managing dynamic compression, and withstanding the extreme cylinder pressures and thermal cycling endemic to performance and racing environments. This is not a repair part—it is a performance upgrade integral to engine longevity and power consistency.

Core Technology: Multi-Layer Steel Construction and Precision Engineering

The BC8295 leverages Cometic’s proprietary MLS architecture, which consists of multiple, ultra-thin sheets of 301 stainless steel embossed with a specialized sealing bead and coated with a viton rubber-based facing. This construction is fundamentally superior to monolithic or composite gaskets for performance applications. Each layer works in concert: the embossed beads create a primary, resilient seal that accommodates microscopic imperfections in the deck and head surfaces, while the layered design allows for controlled compression and exceptional spring-back properties. The viton coating fills micro-finish valleys, creating a secondary, static seal. For the Can-Am X3 MLX’s non-O-Ring case, this technology is essential. The absence of a machined O-Ring groove in the block places the entire sealing burden on the gasket’s ability to conform and maintain clamp load. The MLS design’s resilience ensures the seal remains intact despite the dissimilar metal expansion rates between the aluminum cylinder head and the engine case, a common failure point for inferior gaskets under thermal stress.

Furthermore, the precise .036″ (approx. 0.91mm) finished thickness of the BC8295 is a critical specification. This dimension directly impacts the engine’s squish or quench band—the clearance between the piston crown and the cylinder head at Top Dead Center. Proper quench is paramount for efficient combustion, detonation suppression, and power optimization. An incorrectly thick gasket can destroy quench, leading to lost power and increased knock sensitivity. Cometic’s exacting thickness control allows engine builders to calculate and set this clearance with precision. For a deeper technical exploration of MLS technology versus traditional gaskets, refer to this authoritative resource on head gasket selection principles from EngineLabs.

Application-Specific Design for the Can-Am X3 MLX Platform

The BC8295 is far from a universal component; its geometry is laser-cut to the exact specifications of the Rotax 900 ACE turbo and NA engines used in the Can-Am Maverick X3, specifically those with the non-O-Ring engine case configuration and the larger 7/16″ diameter head studs. This distinction is crucial. The 7/16″ studs provide significantly greater clamp load compared to smaller fasteners, and the gasket must be engineered to distribute this immense force evenly across its entire sealing surface to prevent localized distortion or material fatigue. The gasket features precise coolant and oil passage alignment, ensuring unrestricted flow for critical engine cooling and lubrication systems. Its design accommodates the specific bore sizes ranging from the standard 74mm up to 76mm common in big-bore stroker kits, providing a perfect seal without overhang into the cylinder or an excessive inner lip that could disrupt airflow or create hot spots.

Definitive Benefits of the BC8295 MLS Head Gasket

• Unmatched Sealing Under Extreme Pressure: The multi-layer steel construction provides exceptional resistance to combustion pressure, making it ideal for turbocharged, supercharged, and high-compression naturally aspirated builds where cylinder pressures exceed 1,500 psi.
• Superior Thermal and Chemical Resistance: 301 stainless steel and viton coatings are impervious to degradation from extreme heat, synthetic oils, ethanol-based fuels, and modern coolant additives, ensuring long-term stability.
• Precision Engineered Thickness (.036″): Allows builders to accurately set and maintain critical piston-to-head quench clearance, optimizing combustion efficiency and detonation resistance for maximum power and safety.
• Optimized for High Clamp Loads: Specifically designed for use with 7/16″ head studs, effectively managing and distributing the tremendous clamping force to prevent head lift and sealing failure.
• Conformability and Resilience: The embossed MLS layers compensate for minor surface irregularities (following proper machining practices) and maintain seal through countless heat cycles due to their inherent “spring-back” memory.
• Reusability Potential: When installed on properly prepared surfaces and removed carefully, an MLS gasket can often be reused, unlike composite gaskets which are strictly one-time-use items.

Vehicle Fitment and Critical Installation Requirements

Primary Application: This gasket is engineered exclusively for Can-Am Maverick X3 models equipped with the Rotax 900 ACE engine (both turbo and non-turbo) that utilize a non-O-Ring engine case and 7/16″ diameter cylinder head studs. It is the correct component for engines with standard (74mm) bores as well as common oversized bores up to 76mm. It is NOT compatible with engine cases that have a machined O-Ring groove, nor is it compatible with engines using smaller diameter head fasteners.

Mandatory Surface Preparation: The performance of any MLS gasket, especially the BC8295, is 100% dependent on proper surface finish. Both the cylinder head and the engine case deck must be machined to a perfectly flat specification (typically within .002″ or less across the surface) and finished with a specific, smooth surface texture. A Ra (Roughness Average) of 50 micro-inches (50µ-in) or smoother is mandatory. A mirror-like polish is not required and can be detrimental; the goal is a consistent, cross-hatched fine finish that allows the viton coating to micro-seal. Using this gasket on a warped head or a coarse, milled surface will guarantee failure.

Installation Protocol: Install on clean, dry surfaces. Never use any form of spray sealant, silicone, or gasket glue on the faces of an MLS gasket. A light mist of copper spray (such as Permatex Copper Spray-A-Gasket) can be used on the outer layers only if specified by the engine builder for additional micro-sealing, but it is often not necessary. Always follow the manufacturer’s recommended torque sequence and final torque value for your specific 7/16″ head studs, progressing in multiple incremental steps to ensure even clamping.

Technical Specifications: BC8295 Cometic Head Gasket
