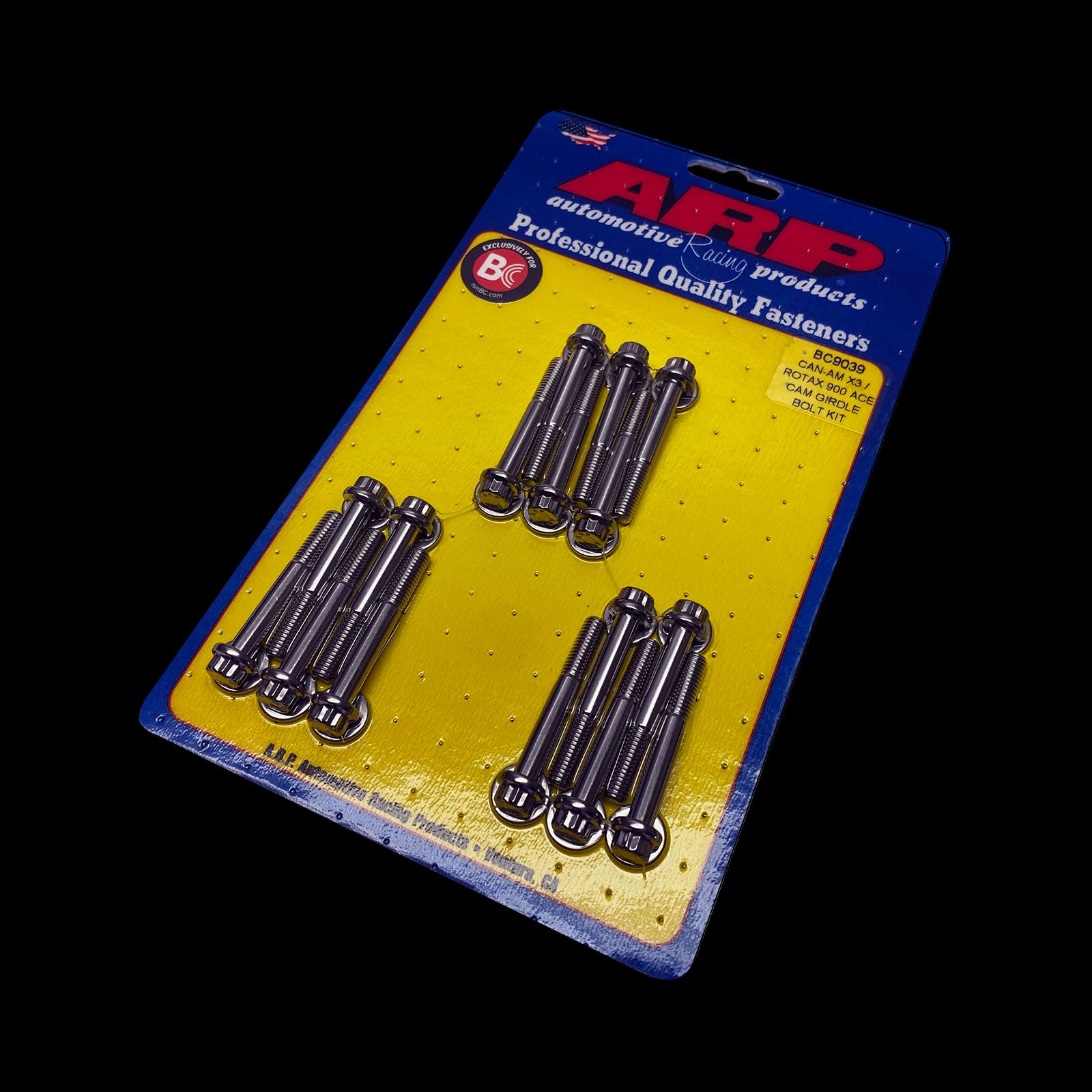

BC9039 – ARP Can-Am X3 Cam Girdle Assembly Bolt Kit

In the pursuit of extreme performance, every component of an engine is a calculated variable in the equation of power, reliability, and durability. While aftermarket enthusiasts often focus on the stars of the show—turbos, camshafts, and cylinder heads—the supporting cast of fasteners is what ultimately holds the symphony together. For the forced-induction, high-revving heart of the Can-Am Maverick X3, the factory cam girdle assembly bolts represent a critical, yet frequently overlooked, point of potential failure under sustained high-load or boosted conditions. The BC9039 ARP Can-Am X3 Cam Girdle Assembly Bolt Kit is not an upgrade; it is a fundamental re-engineering of this crucial anchoring system. Engineered by Automotive Racing Products (ARP), the global benchmark in high-performance fasteners, this kit replaces the OEM stretch-to-yield torque-to-yield bolts with a true, reusable, aerospace-grade stud and nut system designed to provide unparalleled clamp load consistency, fatigue resistance, and long-term stability for your X3’s valvetrain.

The Critical Role of the Cam Girdle Assembly in the Can-Am X3 Engine

The Can-Am Maverick X3’s 900cc or Turbo RR 900cc twin-cylinder engine utilizes a cam girdle—a substantial cast or machined component that caps and locates the camshaft bearings. This assembly is responsible for maintaining precise camshaft alignment, ensuring proper valve timing, and containing the immense forces generated by the valvetrain, especially at the elevated RPM ranges these engines frequently see. The factory fasteners for this assembly are typically one-time-use, torque-to-yield bolts. This design is cost-effective for mass production but is fundamentally at odds with performance and repeatability. They are designed to be stretched past their elastic limit during installation to achieve clamp load, a state from which they cannot recover. This means they lose their designed clamping force over time due to heat cycling and vibration, and they must not be reused after disassembly, posing a risk if not replaced meticulously during any valve cover or top-end service.

Engineering the Solution: The ARP Stud and Nut Advantage

ARP addresses this inherent weakness by superseding the bolt-based design with a superior stud-based system. Each kit includes precisely machined studs that are threaded into the engine’s cylinder head. A dedicated nut is then torqued onto the stud to secure the cam girdle. This architecture offers monumental advantages. First, clamp load is dramatically more consistent and repeatable. A stud, being fixed in the thread engagement with the head, pulls straight down, minimizing the side-load friction and torsional stress that plagues bolts during installation. This allows for a more accurate translation of applied torque into clamping force. Second, it eliminates thread wear in the soft aluminum of the cylinder head. The studs remain permanently engaged, protecting the critical parent threads from repeated assembly and disassembly cycles. Third, it facilitates easier assembly. The studs act as alignment dowels, allowing the cam girdle to be lowered perfectly into place before the nuts are installed—a significant improvement over struggling to align multiple bolts simultaneously.

Vehicle Fitment: Precision Application for Can-Am X3 Models

The BC9039 kit is engineered for a specific range of Can-Am Maverick X3 models. It is crucial to verify your engine’s model year and displacement to ensure correct application. This kit is designed to fit:

• Can-Am Maverick X3 (all trims) with the 900 HO Rotax ACE Twin-Turbo engine (2017-2023+)
• Can-Am Maverick X3 (all trims) with the 900 Rotax ACE Turbo RR engine
• Note: Always cross-reference your VIN or engine serial number with the latest ARP catalog or website for absolute confirmation, especially for new model year releases.

Technical Specifications and Manufacturing Excellence

Every component in the BC9039 kit is a product of ARP’s proprietary manufacturing and metallurgical processes. The studs are crafted from ARP’s signature 8740 Chrome Molybdenum alloy steel, which is then heat-treated using a proprietary process to achieve an optimal balance of tensile strength and ductility. They are finished with ARP’s corrosion-resistant, gold iridite coating for protection and easy identification. The accompanying nuts are high-strength, flanged hex nuts designed for use with a standard wrench. Most importantly, ARP provides a specific, non-lubricated torque specification for this application, which is critical for achieving the correct clamp load without damaging the aluminum threads of the cylinder head. This attention to detail is what separates a true component from a mere replacement part.

Performance Benefits: Beyond Just Holding Things Together

Installing the BC9039 ARP Cam Girdle Assembly Kit delivers measurable, tangible benefits that contribute directly to the engine’s performance envelope and service life:

• Eliminates Clamp Load Loss: The reusable stud and nut system maintains a consistent, high clamp load indefinitely, unlike TTY bolts that relax over time, which is crucial for preventing cam walk and maintaining timing precision under high boost and RPM.
• Enhances Valvetrain Stability: By securing the cam girdle with unwavering force, camshaft harmonics are reduced, promoting more stable valve operation at extreme engine speeds—a key factor in preventing valve float in tuned applications.
• Facilitates Professional-Grade Serviceability: The studs allow for effortless removal and reinstallation of the cam girdle during valve adjustments, spring changes, or cam upgrades. Components can be reused indefinitely, saving cost and ensuring integrity on every rebuild.
• Protects Engine Investment: It safeguards the soft aluminum threads in your cylinder head from wear and strip-out, a common and costly repair during repeated disassembly common in high-performance UTVs.
• Foundational for Forced Induction and High-RPM Builds: For those pushing the limits with upgraded turbo systems, aggressive tuning, or sustained high-RPM dune running, this kit is not an accessory; it is essential insurance for the valvetrain’s structural integrity. The principles behind such fastener science are explored in depth in resources like this technical article on fastener technology and torque criticality.

Installation Protocol: The Mechanic’s Mandate

Correct installation is paramount. The process involves removing the valve cover and carefully extracting the OEM torque-to-yield bolts. The new ARP studs should be threaded into the clean, dry cylinder head holes by hand until snug, ensuring they are not cross-threaded. The cam girdle is then placed over the studs. Using a quality, calibrated torque wrench, the supplied nuts are torqued to ARP’s specified value in the correct sequence, typically from the center outwards. It is critical to follow the provided ARP instructions and torque spec explicitly, as it is calculated for dry threads in aluminum. Using lubricant or an incorrect sequence will result in inaccurate clamp load, potentially leading to component failure. This installation should be considered a core part of any serious engine build or preventative maintenance regimen for a high-output Can-Am X3.
