Coolant Temp Sensor – Large Thread Thread: 3/8 NPT 18TPI

Heavy-Duty Thermal Monitoring: Large Thread Coolant Temp Sensor

The Coolant Temp Sensor – Large Thread is a high-durability instrument engineered for engines requiring a substantial mechanical interface. Featuring a 3/8 NPT 18TPI thread, this sensor is the definitive choice for legacy V8 blocks and high-performance custom intake manifolds where a smaller 1/8 NPT sensor lacks the necessary structural authority. This sensor is a critical component of any standalone ECU integration, providing the thermal data required for cold-start enrichment, cooling fan control, and essential detonation protection maps. It is the professional standard for builders of LS-swap, Big Block, and heavy-duty competition engines.

Engineering Principles: Large Thread Stability and Accuracy

The 3/8 NPT thread provides a massive surface area for sealing and thermal conduction, ensuring that the internal thermistor reacts rapidly to changes in engine temperature. This Analogue-to-Digital interface (the CTS signal) allows the ECU to maintain an accurate Coolant Temp reading with a maximum range of 127°C (260°F). This resolution is vital for fine-tuning the fuel map calibration, as it allows the tuner to set precise offsets for ignition advance and fuel trims as the engine approaches its thermal limit. The robust brass housing is designed for high-vibration motorsport environments, ensuring that the sensor does not suffer from signal dropout during extreme track use.

Operational Benefits for Custom Engine Management

Integrating this large-thread sensor with a Haltech Elite or Nexus series ECU provides the tuner with a reliable baseline for all temperature-dependent logic. In high-horsepower turbocharged builds, this data is used to optimize closed-loop boost control; if the engine temperature exceeds the safe threshold, the ECU can automatically drop boost targets to protect the head gaskets. Additionally, the accurate 0-5V signal ensures that the iC-7 Digital Display provides the driver with a deterministic temperature reading, allowing for proactive thermal management before a critical failure occurs. This sensor is a favorite for builders of Big-Block Chevy and Ford Coyote swaps where port availability is restricted to large NPT bungs.

Fitment and Component Integration

This sensor features a 3/8 NPT thread and is designed for a seamless harness integration process. The kit includes the matching Delphi plug and pins, ensuring that the wiring meets modern automotive standards for moisture resistance and durability. It is compatible with all standalone ECUs that support a standard NTC temperature calibration. During installation, it is essential to use a high-quality thread sealant and ensure the sensor is not over-torqued into aluminum manifolds. This sensor represents a “bulletproof” solution for builders who prioritize mechanical and electrical reliability in their high-performance engine management systems.

Technical Specifications Table

Summary & Includes

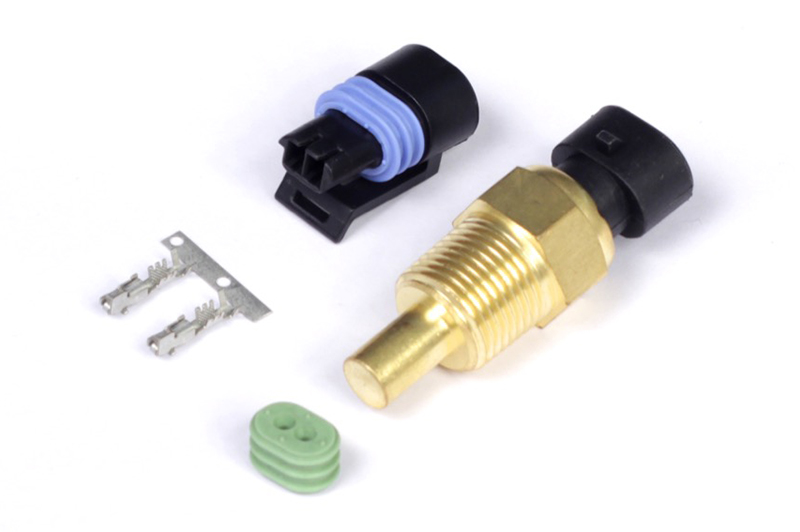

The Large Thread Coolant Temp Sensor is the professional choice for robust thermal management. Includes: 1 x 3/8 NPT Coolant Temp Sensor and 1 x Matching Delphi Plug & Pins. Note: Verify port size before ordering; specifically designed for 3/8 NPT intake and block ports.
