CP7201 – Mitsubishi 4G63 2G/Evo VIII CP Shelf Pistons w/All Hardware – 85.5mm x 9.5:1

The CP7201: Engineering a New Baseline for the Legendary 4G63

For the performance builder dedicated to the Mitsubishi 4G63 platform, the goal is never merely about adding power—it’s about building a foundation that defines reliability under extreme conditions. The CP7201 Shelf Pistons represent the culmination of this philosophy, offering a direct-fit, precision-forged solution engineered specifically for the 2G DSM and Evolution VIII chassis. With an 85.5mm bore and a calculated 9.5:1 static compression ratio, this kit is not an off-the-shelf compromise but a purpose-built component designed to transform the engine’s rotating assembly into the most resilient element of your build. CP Pistons’ reputation is built on supplying championship-winning engines across every form of motorsport, and the CP7201 distills that race-proven metallurgy and geometry into a package that sets a new standard for the street and strip.

Metallurgical Science and Forged Geometry: The Anatomy of Strength

The core of the CP7201’s performance lies in its 2618-grade forged aluminum alloy construction, a material specification chosen for ultimate tensile strength and fatigue resistance in high-temperature, high-load environments typical of turbocharged applications. Unlike softer 4032-alloy pistons, the 2618 alloy maintains its structural integrity under the intense cylinder pressures generated by modern turbo systems and aggressive tuning, making it the unequivocal choice for builds targeting 500+ wheel horsepower and beyond. CP’s proprietary forging process aligns the grain structure of the aluminum, creating a monocoque-like component that is significantly stronger in critical areas such as the pin boss and ring lands compared to a cast or hypereutectic piston.

Every geometric feature of the CP7201 is a calculated defense against common failure modes. The contoured skirt design, coated with a proprietary anti-friction surface, minimizes drag and wear during the critical warm-up phase while ensuring stable piston-to-wall clearance at operating temperature. The valve reliefs are CNC-machined with exacting precision to accommodate aggressive camshaft profiles without compromise, while the optimized ring land design—featuring a thick, reinforced top land—directly combats detonation-induced damage. The inclusion of a moly-coated top ring and Napier-style second ring completes the seal, ensuring efficient combustion containment and superior oil control. This is engineering that doesn’t just replace an OEM part; it comprehensively upgrades the engine’s most critical pressure-bearing component.

Strategic Compression: The 9.5:1 Ratio Advantage

The selection of a 9.5:1 static compression ratio in the CP7201 piston is a masterstroke in modern forced-induction strategy. This figure represents a significant increase over the factory Evo VIII’s approximately 8.8:1 ratio, a move that delivers profound benefits when paired with intelligent tuning and supporting modifications. The higher compression elevates mechanical efficiency, improving throttle response, spool characteristics, and low-to-mid-range torque, making the powerband feel more immediate and linear. Crucially, with the widespread availability of high-octane pump gasoline (93 AKI/98 RON) and sophisticated engine management systems, this ratio is perfectly manageable with proper tuning, effectively pushing the detonation threshold to a higher level of output.

This approach allows you to achieve target power levels with less boost pressure, reducing exhaust backpressure and thermal load on the entire system—from the turbine housing to the cylinder head. It creates an engine that is not only more powerful but also more responsive and efficient across the rev range. For builders incorporating ethanol blends (E85), the benefits are even more pronounced, as the fuel’s superior knock resistance allows the 9.5:1 ratio to be fully exploited for massive gains in volumetric efficiency. Understanding this balance is key; as noted in a technical discussion on cylinder pressure dynamics in forced induction engines, the interplay between compression, boost, and ignition timing is the fundamental determinant of an engine’s performance envelope and safety margin.

Complete Kit Integrity: Every Component is Mission-Critical

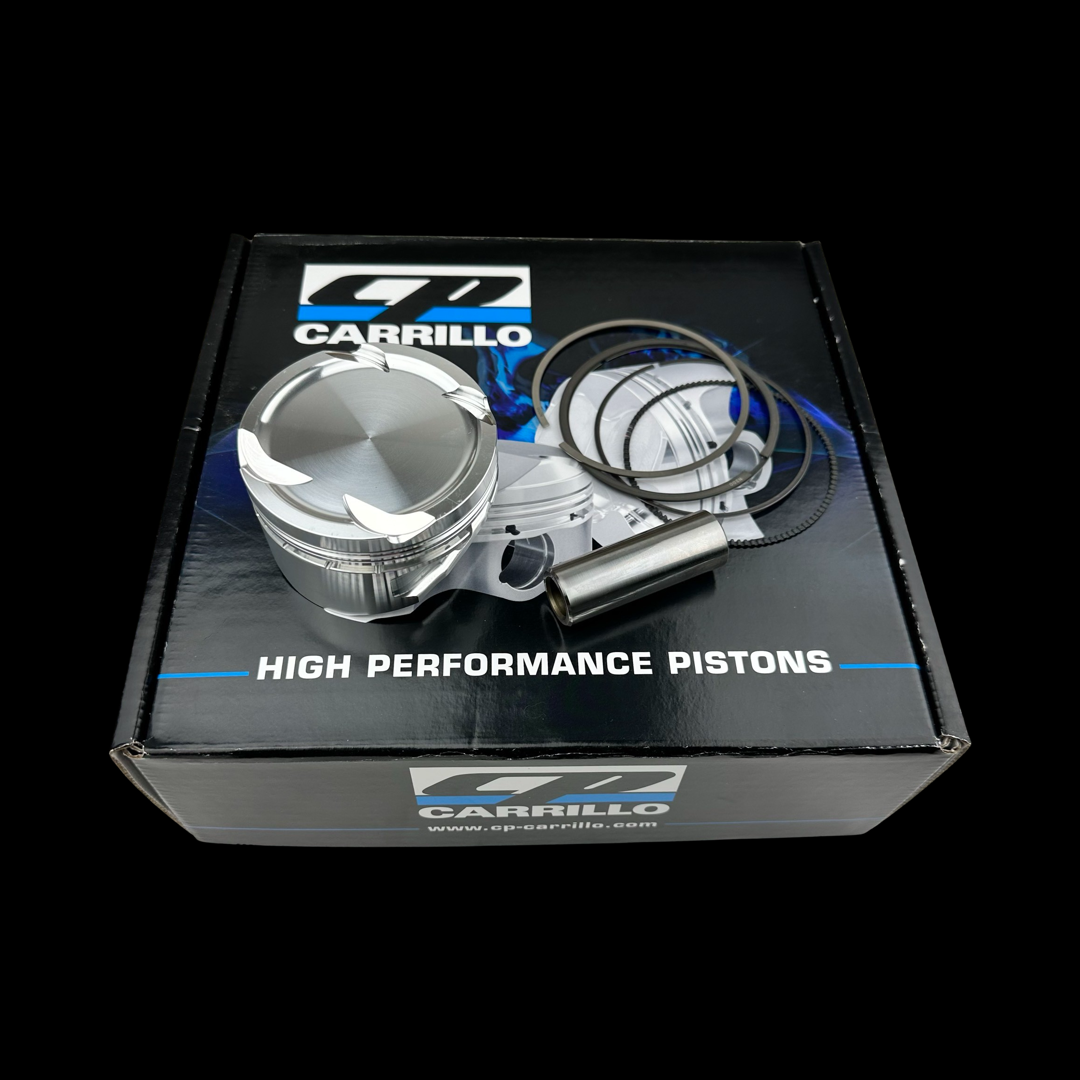

The CP7201 is supplied as a complete piston assembly kit, acknowledging that the piston itself is only one node in a critical system. CP’s insistence on providing all necessary hardware eliminates compatibility guesswork and ensures a perfect, balanced assembly. The kit includes:

• CP Forged 2618 Aluminum Pistons (85.5mm): The core of the system, featuring CNC-machined valve reliefs, anti-friction skirt coating, and precision weight-matching.
• CP Piston Pins: High-quality, case-hardened steel pins designed for maximum shear strength and a perfect fit within the precision-machined pin bores.
• Spiral Locks: These positive-retention locks secure the piston pins with absolute reliability, preventing any potential for pin walk—a critical failure point in high-RPM applications.
• CP Piston Rings: A premium ductile iron top ring with moly inlay and a Napier-style second ring are provided, pre-gapped for a standard 85.5mm bore to ensure optimal sealing and oil control right out of the box.

This holistic approach guarantees that every interface between components meets CP’s stringent quality control, providing the builder with a singular, optimized system ready for installation. There is no need to source pins or locks separately, and the pre-gapped rings save hours of meticulous measurement and filing, translating directly into build-time efficiency and confidence.

Vehicle Fitment & Application Guidelines

The CP7201 is engineered as a direct shelf solution for specific, high-potential 4G63 variants. Correct application is paramount for achieving the intended performance and reliability outcomes.

Primary Fitment:
Mitsubishi Lancer Evolution VIII (2003-2005) – All models equipped with the 4G63 (CY9A, CT9A chassis codes).
Mitsubishi Eclipse (2G) 1995-1999 – Turbo models (4G63 engine).
Eagle Talon (2G) 1995-1998 – Turbo models (4G63 engine).
Plymouth Laser (2G) 1995-1999 – Turbo models.

Critical Installation Notes:
This piston set is designed for a final bore size of 85.5mm. It is mandatory to have your engine block professionally bored and honed with a torque plate to this exact specification to ensure proper piston-to-wall clearance and ring seal. Always confirm clearances with your machine shop based on CP’s recommended specs for your specific application (street, strip, or race). The 9.5:1 compression ratio is calculated for use with a standard factory head gasket and a zero-deck block configuration; final compression will vary slightly with head milling, deck resurfacing, and head gasket thickness. Consultation with your tuner prior to assembly is advised to calibrate engine management for the increased static compression.

Technical Specifications: The Blueprint for Performance

The Definitive Choice for the Discerning Builder

The CP7201 piston kit transcends the category of a simple replacement part. It is a systematic upgrade that addresses the 4G63’s performance ceiling at its most fundamental mechanical level. By selecting a forged 2618 alloy, implementing a strategic 9.5:1 compression ratio, and delivering a complete, precision-matched hardware kit, CP provides a solution that empowers builders to push boundaries with confidence. Whether your target is a swift-spooling, 400whp street weapon or a 700+whp drag strip dominator, the foundation laid by these pistons is uncompromising. For the engineer, the tuner, or the dedicated enthusiast who understands that true performance is built from the inside out, the CP7201 is not just an option—it is the logical, authoritative next step in the evolution of your 4G63.
