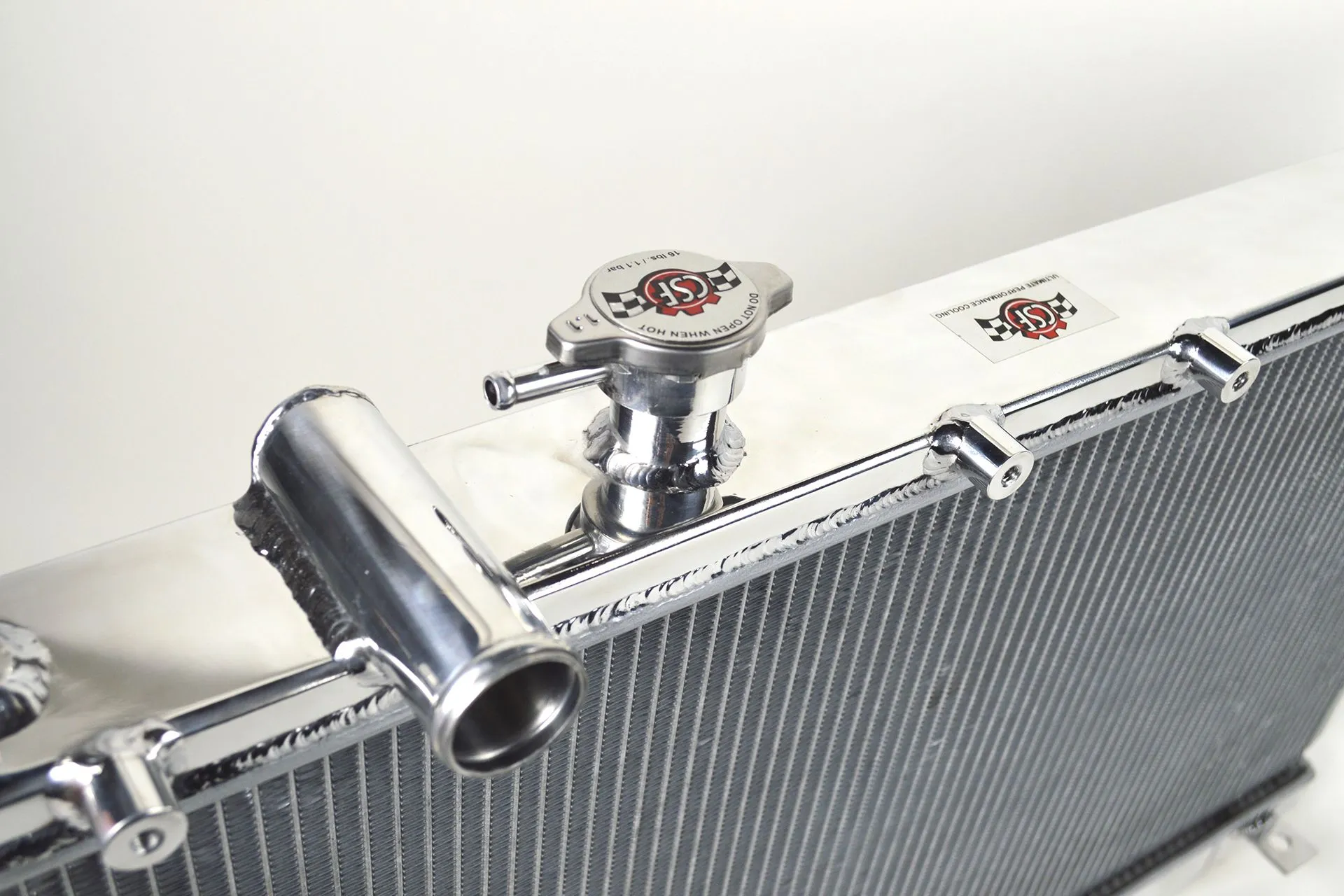

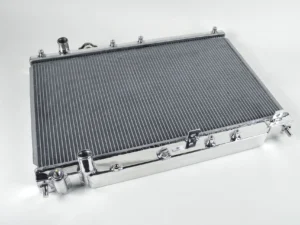

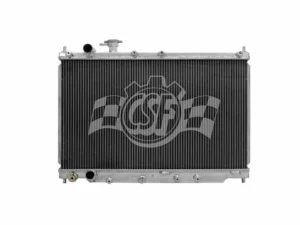

CSF Cooling - Racing & High Performance Division 00-09 Honda AP1/AP2 S2000 High-Performance All-Aluminum Radiator Center

CSF Cooling – Racing & High Performance Division 00-09 Honda AP1/AP2 S2000 High-Performance All-Aluminum Radiator Center

$399.00

Category: Radiators Brand: CSF Radiators

Description
Reviews (0)

Overview

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your S2000 running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF’s exclusive B-Tube Technology: Unlike a regular oval shape “O” type radiator tube, CSF uses a specially engineered tube in the shape of a “B”. These “B-tubes” are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal “O” shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes – producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With “B-tubes” you are able to get “dual liquid laminar flow”. CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.The CSF S2000 radiator is a true “Drop-in fit” design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.CSF manufactures the most advanced and efficient radiator in the industry for your S2000. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

2-Row 42mm Core (Dual Core) Featuring CSF’s Exclusive B-Tube Technology
Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined “Quick-Connect” Inlet/Outlet Connections
CNC Machined Brackets and Fittings for Superb Fit and Durability
All-Aluminum Race Style Drain Plug
1-Hour “Mirror Finish” Hand Polish
Drop-in Fit

Prop 65 Yes/No: No
Radiator Cap Included: Yes
Tank Material: Aluminum
Thermostat Included: No
Title: 00-09 Honda AP1/AP2 S2000 High-Performance All-Aluminum Radiator
Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 14.75 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 2.0625 in.
Core Width: 25.9375 in.
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Polished
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 1.25 in.
Inlet Location: Top Left
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 1.25 in.
Outlet Location: Bottom Left

Other Part Numbers:
CSF Radiators #csf7009

Proposition 65

⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Fitment

Make Vehicle	Model	Year
2000-2009 Honda S2000	S2000	2000-2009
