Overview

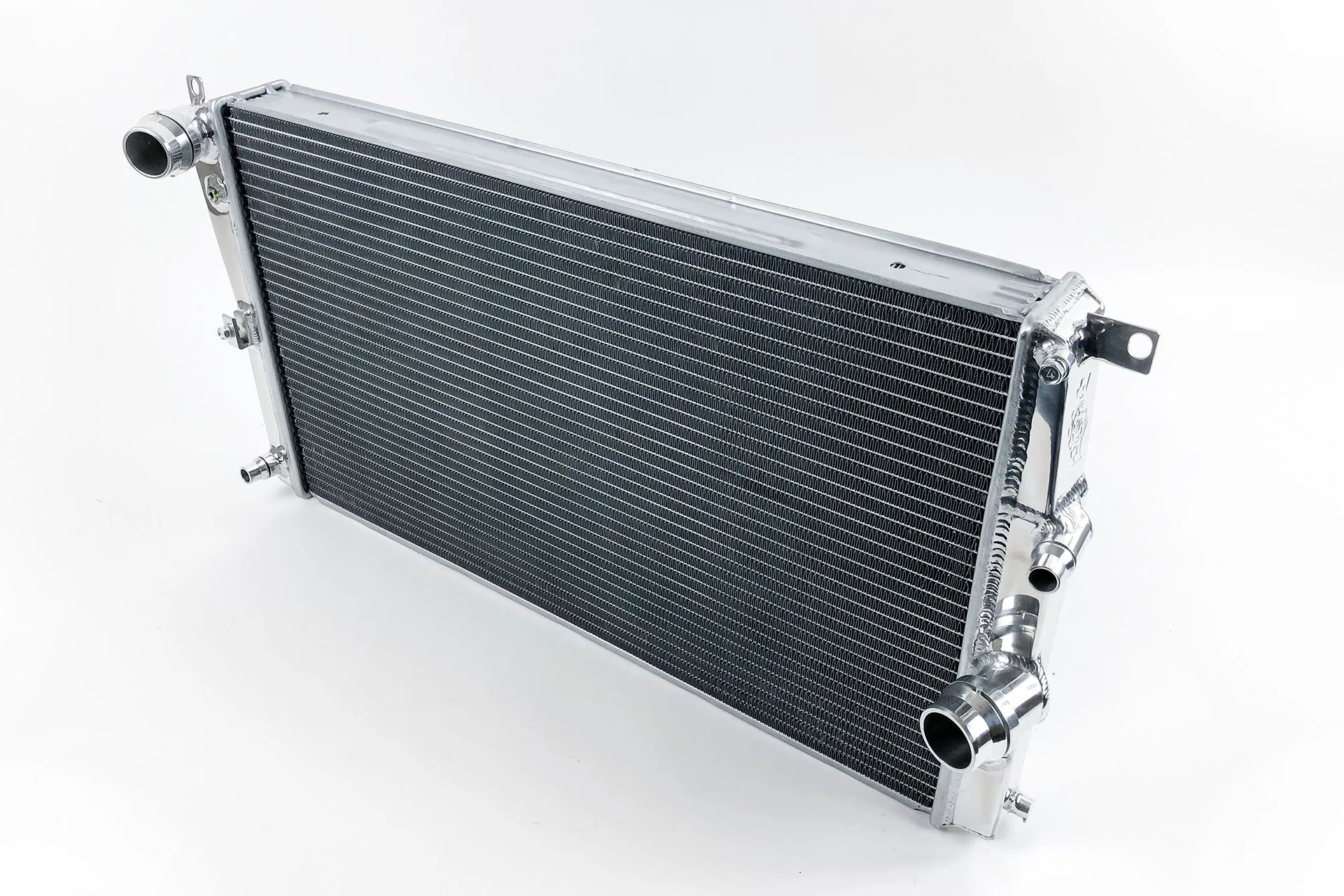

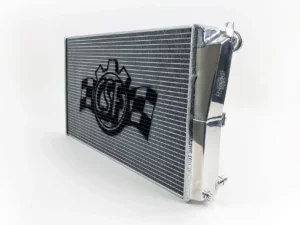

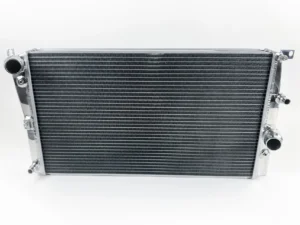

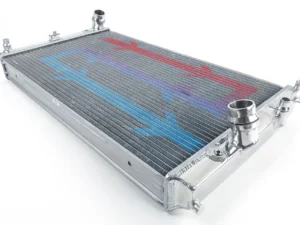

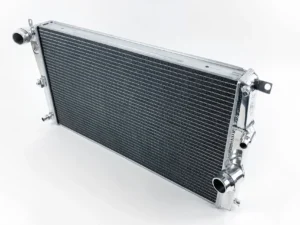

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your N55 Powered BMW running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF’s exclusive B-Tube Technology: Unlike a regular oval shape “O” type radiator tube, CSF uses a specially engineered tube in the shape of a “B”. These “B-tubes” are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal “O” shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes – producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With “B-tubes” you are able to get “dual liquid laminar flow”. CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.The CSF N55 Powered BMW radiator is a true “Drop-in fit” design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing, highest-quality, and most reliable radiators.CSF manufactures the most advanced and efficient radiator in the industry for your N55 Powered BMW. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
- 2-Row 42mm Core (Dual-Core) Featuring CSF’s Exclusive B-Tube Technology
- Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
- CNC Machined “Quick-Connect” Inlet/Outlet and All Aux. Connections
- CNC Machined Brackets and Fittings for Superb Fit and Durability
- All-Aluminum Race Style Drain Plug
- 1-Hour “Mirror Finish” Hand Polish
- Drop-in Fit
- Coolant Hose Inlet Connection Type: OE Type Connection
- Coolant Hose Outlet Connection Type: OE Type Connection
- Core Height: 23.62 in.
- Core Material: Aluminum
- Core Row Quantity: 2

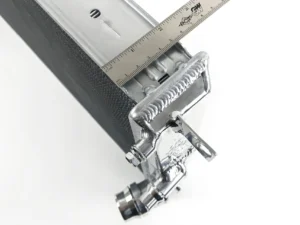

- Core Thickness: 2.0625 in.
- Core Width: 13.54 in.
- Down Flow Or Cross Flow Type: Cross Flow
- Finish/Color: Polished
- Frame Included: No
- Grade Type: Performance
- Inlet Connector Type: Quick Connect
- Inlet Diameter: 1.5 in.
- Inlet Location: Top Left
- Installation Type: Drop-In Fit Installation
- Internal Engine Oil Cooler: No
- Internal Transmission Oil Cooler: No
- Mounting Hardware Included: No
- Mounting Type: Mounts with OE Hardware
- Outlet Connector Type: Quick Connect
- Outlet Diameter: 1.5 in.
- Outlet Location: Bottom Right
- Prop 65 Yes/No: No
- Radiator Cap Included: No
- Tank Material: Aluminum
- Thermostat Included: No
- Title: BMW F87 M2 / F2X M235i / F3X 335i / 435i (N55 incl xDrive) Race-Spec Radiator
Other Part Numbers:
CSF Radiators #csf7078LT
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Fitment
|
Make Vehicle | Model | Year |
|---|---|---|
|
2012-2015 BMW 335i | 335i | 2012-2015 |
|
2014-2016 BMW 435i | 435i | 2014-2016 |
|
2015-2021 BMW M2 | M2 | 2015-2021 |
|
2014-2016 BMW M235i | M235i | 2014-2016 |
About Brand
CSF Radiator
Anyone who needs a new radiator should consider buying a CSF radiator. A CSF radiator and CSF cooling system offers the best performance for driving and racing enthusiasts. If you have a faulty radiator or are looking to upgrade to a high-performance radiator, a CSF radiator will get the job done.
What is a CSF Radiator?
During the last 40 years, CSF has manufactured over 10,000 different models of radiators, oil coolers, heat exchangers and condensers for Automotive, Truck, Industrial and Marine applications. Today, their products are sold in over 60 countries throughout the world. Their US Aftermarket Division stocks over 1000 models that cover over 2100 applications for all popular Import vehicles.
CSF supplies radiators and condensers that are designed to meet or exceed original equipment (OE) engineering specifications. Their plants meet ISO 9000 standards and provide parts to OE manufacturers, and to top it all off – check out their industry leading warranty. Simply put, you cannot buy, sell, install or own a better value radiator or condenser.
Why Should I Buy a CSF Radiator?
A CSF radiator offers a number of benefits over the competition. Below, we explain the main reasons why you should buy a CSF radiator.
A Market Leader for over 45 Years
CSF has been a market leader for over 45 years, as the company was initially established in 1975 and have been selling CSF radiators ever since. Over time, a CSF radiator has become known for its innovative design and impeccable quality.
High-Quality Radiator Testing
Every single CSF radiator and CSF cooling system has been put through a rigorous series of tests to make sure every system is reliable and performs at a high level. In their testing lab, CSF puts in the time to make sure every product works perfectly.
Cutting-Edge Technology
Each CSF radiator uses cutting-edge technology to bring customers the best CSF full cooling system possible. CSF racing radiators combine a high-efficiency core, advanced endtank designs, and innovative design and engineering to give our customers the most advanced and efficient radiator possible.
Get a CSF Radiator or CSF Cooling System From Vivid Racing
Vivid Racing carries a wide selection of CSF radiator products, including CSF cooling systems and other accessories. If you are interested in learning more or would like to purchase a CSF radiator, please contact Vivid Racing today by calling (480) 906-4066.
Warranty
CSF takes pride in the quality of its products and offers one of the best warranty’s in the industry. Please refer to the CSF warranty card in the shipping carton for details.
CSF warranty is applicable only to the original owner of the vehicle. Original paper work verifying the proof of purchase and pre-installation cooling system checklist signed by the professional installer is required to process warranty claims.
All warranty claims should be directed to the point of purchase. Due to CSF’s established agreements with Authorized CSF Warehouse Distributors, CSF is unable to handle and/or process warranty related calls/inquires from any individuals – all inquires/warranty related claims should be directed to the point of purchase or an authorized warehouse distributor.
Take care of your radiator, as under circumstances listed below the warranty will be void.
If the radiator is installed and is returned deformed (bulging tanks, warped core etc.), this is an indication that the radiator is the victim of some other problem and not the cause. The deformation is a result of the radiator being subjected to extremely high pressure and or temperature caused by any of the following reasons:Defective Pressure Cap, Defective Head Gasket, Defective Temperature gauge (incorrect readings), Defective Water Pump etc. Such units are not covered under the warranty.
If a radiator seems to have a “fit problem†there is the possibility that there is some confusion about a multi-fit radiator that might look different. Your nearest CSF WD can clarify the application, just give them a call. A perceived fit problem is not covered under warranty.
If a unit is damaged in shipping, please file a claim with the carrier. Damages caused during shipping, installation or handling are not covered under warranty.
Any repairs or alterations to the unit will automatically void the warranty.
Any form of abuse, including the use of improper coolant mixtures, damage caused by steam, corrosion etc and use on commercial vehicles voids the warranty. It is the vehicle owners’ responsibility to maintain the cooling system as specified in the owners manual.
