Dual Switch Panel Only

Modular Cockpit Management: Dual Switch Panel Only

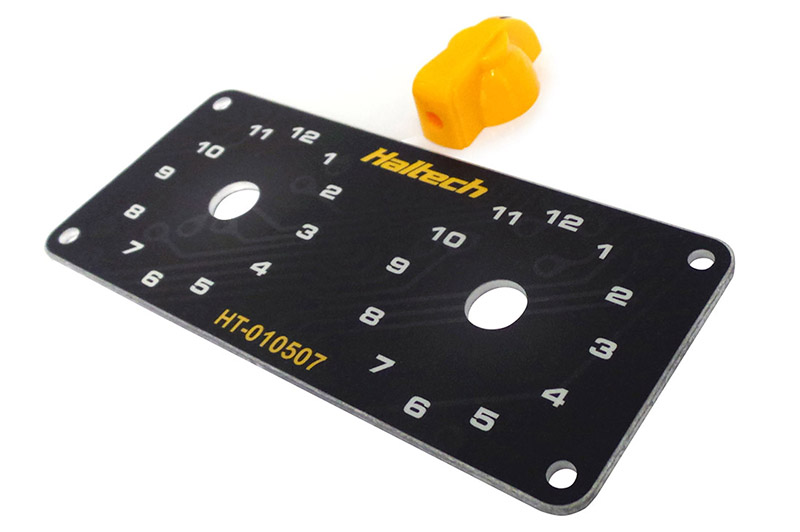

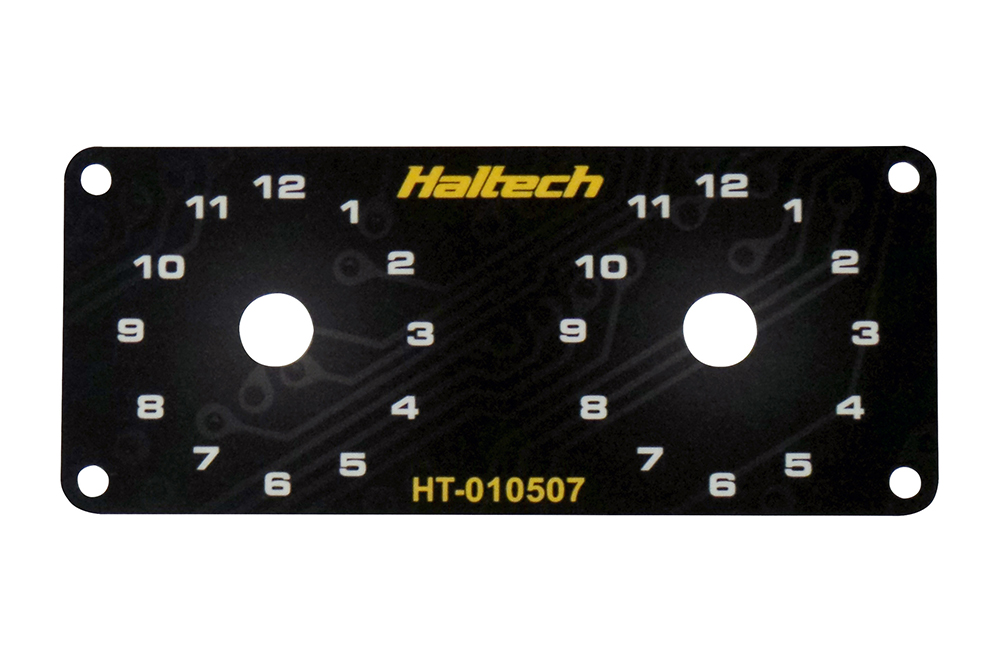

The Dual Switch Panel Only is a specialized mounting solution designed for drivers who require precise, analog-style control over two critical engine parameters. This panel is engineered specifically to suit Haltech 12-position Rotary Trim Modules, providing a rigid and professional-grade dashboard interface for standalone ECU integration projects. Whether you are managing closed-loop boost control and traction on a K-swap build or fuel and ignition trims on an LS-swap, this panel ensures your controls are securely mounted and easily accessible during high-G maneuvers.

Engineering Principles: Ergonomic Control Logic

This panel provides a stable foundation for the high-vibration environment of a race car cockpit. It includes a Yellow knob for high-visibility identification of a primary trim variable. While this SKU is for the Panel Only, its design focuses on providing a professional, textured finish that matches OEM interiors or custom race dashes. For a full standalone ECU integration, this panel acts as the mechanical ground for your Rotary Trim Modules, ensuring that the Analogue-to-Digital interface (stepped voltage signal) is delivered without the signal noise that can occur from loose or vibrating controls. This is a foundational detail for accurate fuel map calibration adjustments.

Operational Benefits for Multi-Variable Trimming

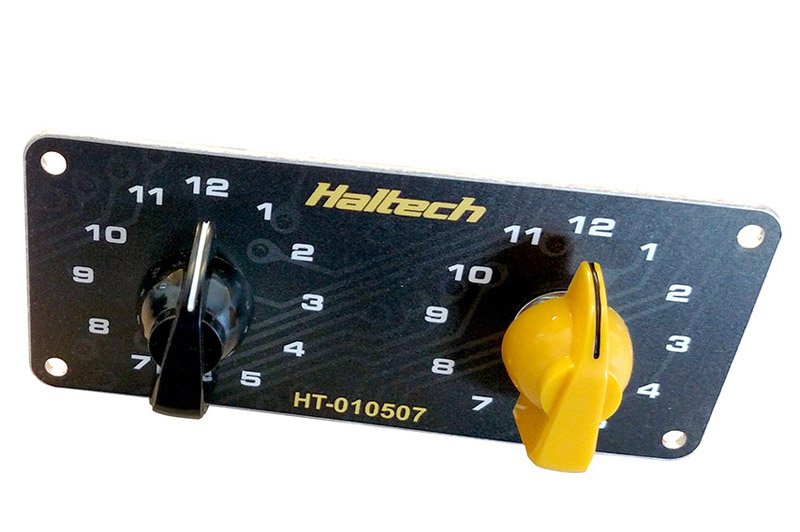

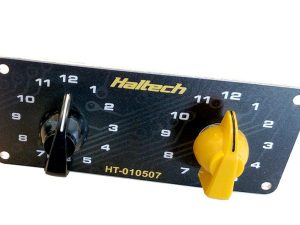

Integrating a Dual Switch Panel with your Haltech Elite or Nexus system allows for the creation of “Conditional Map Logic.” For example, one knob can be used to select boost levels, while the other can manage launch control RPM. This flexibility is essential for detonation protection; by providing a dedicated physical control for map safety, the driver can instantly dial back the tune if they encounter high ambient temperatures or low-quality fuel. The panel supports two 12-position modules, offering 24 total control states in a space-efficient footprint, which is critical for builds utilizing the iC-7 Digital Display and requiring additional physical buttons for cockpit organization.

Installation and Component Integration

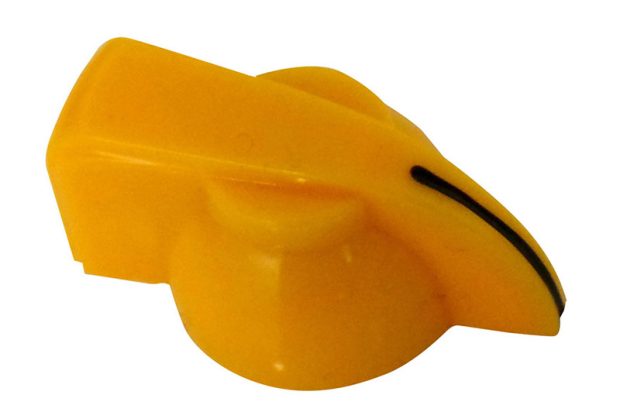

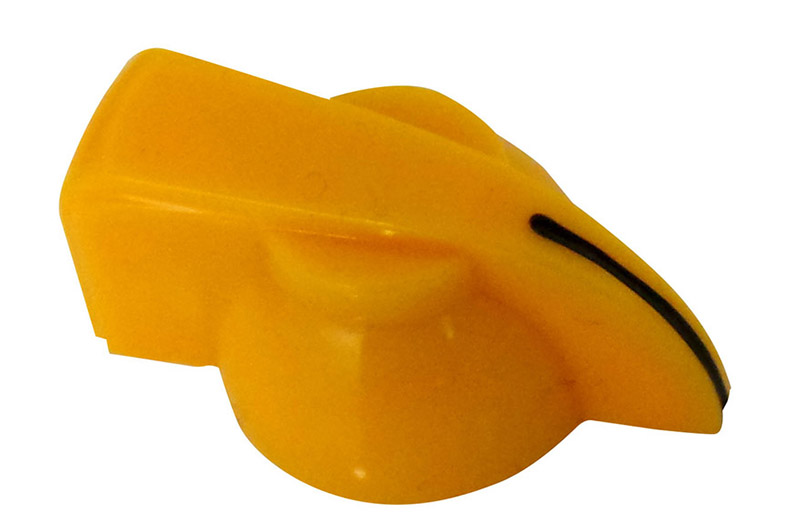

It is important to note that the 12 Position Rotary Trim Modules are NOT included with this SKU; builders should order 2 x HT-010504 to complete the assembly. The kit includes the dual panel and the yellow adjustment knob. Installation is straightforward, requiring two mounting holes and wiring the modules to available AVI channels on the ECU. This setup facilitates a professional harness integration, keeping all trim-related wiring organized and secure behind the dashboard. It is a universal performance component that adds a level of sophistication and functional authority to any custom 2JZ, RB26, or V8 racing cockpit.

Technical Specifications Table

Summary & Includes

The Dual Switch Panel Only is the cornerstone for compact driver-interactive tuning. Includes: 1 x Dual Mounting Panel and 1 x Yellow Adjustment Knob. Note: Does not include rotary trim modules; please order 2 x HT-010504 to complete the cockpit control system.
