Complete Facelift Control: Elite 1500 + DC5/RSX (05-06) Adaptor Kit
Take command of your facelift Honda Integra DC5 or Acura RSX (2005-2006) with the Haltech Elite 1500 Plug ‘n’ Play Adaptor Kit. This package includes the advanced Elite 1500 ECU and a vehicle-specific adaptor harness, providing a complete engine management solution for the K20Z1 engine. The Elite 1500 offers superior processing power, data logging, and advanced features like traction control and flex-fuel support, essential for high-performance naturally aspirated or turbocharged K-series builds.
Race-Spec Features
The kit allows you to convert to Speed Density tuning using the included air temp sensor, removing the need for a MAF sensor. It fully supports the i-VTEC system for optimal power delivery. Note that factory multiplexed dash functions (temp gauge, battery light) are not supported on this platform with the Elite 1500, but the ECU’s CAN bus output makes it easy to integrate a Haltech IC-7 digital dash or other CAN-enabled displays for complete vehicle monitoring.
Technical Specifications
| Feature | Specification |
|---|---|
| ECU Model | Haltech Elite 1500 |
| Vehicle Suitability | Honda DC5 / Acura RSX (05-06) |
| Transmission | Manual Transmission Only |
| Features Supported | VTEC Control, Knock Control, Flex Fuel |

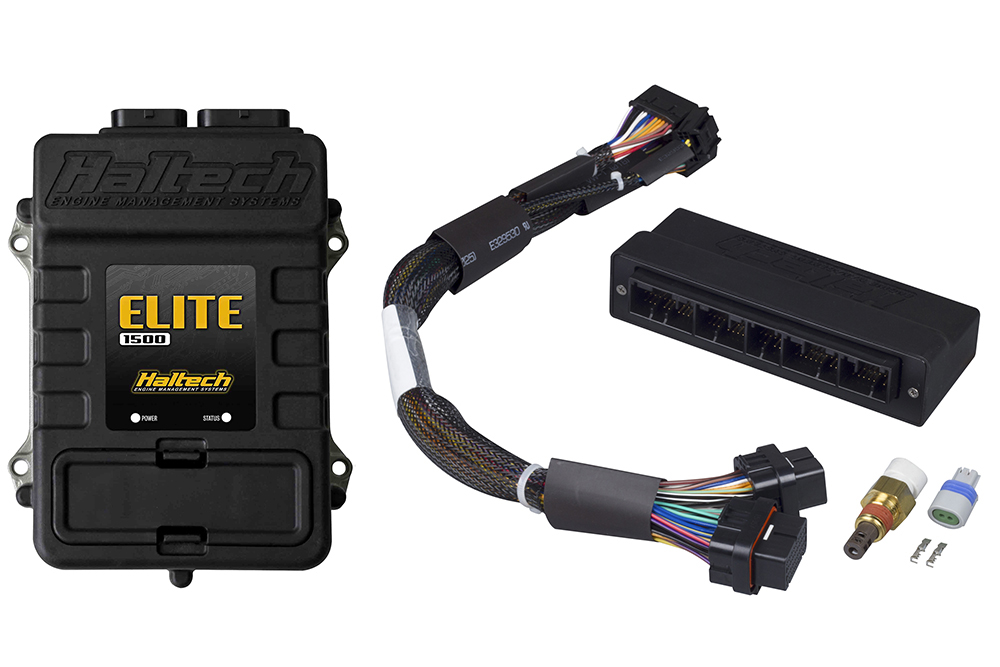

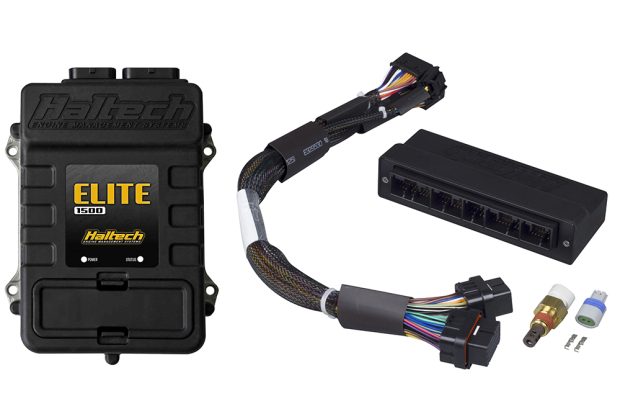

Kit Includes
- Haltech Elite 1500 ECU
- Plug ‘n’ Play Adaptor Harness
- M14 x 1.5 Air Temp Sensor with Plug & Pins
- Auxiliary I/O 16 Pin Plug & Pins
- USB Programming Cable
