Premium Connectivity for 4-Cylinder and Rotary Applications

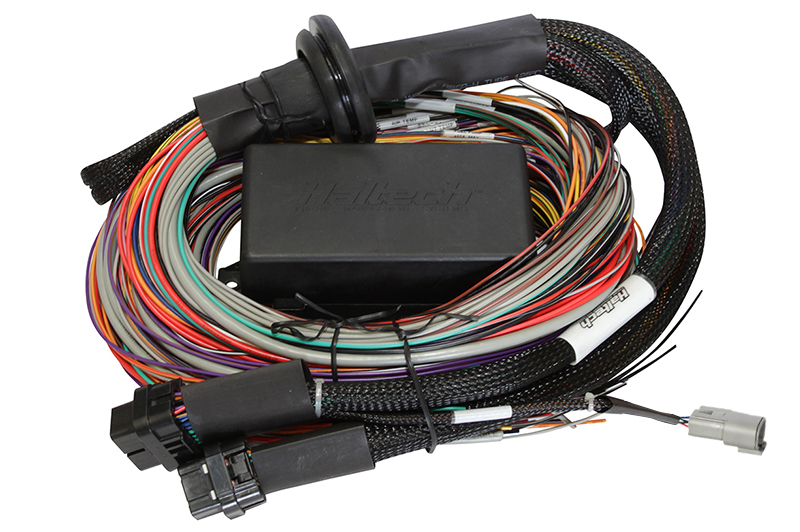

The Elite 1500 Premium Universal Wire-in Harness is the definitive wiring solution for tuners utilizing the Haltech Elite 1500 ECU. While the Elite 1500 is often the go-to choice for 4-cylinder and 2-rotor engines, the wiring requirements are no less demanding than those of a V8. This “Premium” harness kit addresses the most common hurdle in custom EFI installation: reliable power distribution. By integrating a professionally molded fuse and relay box directly into the harness, Haltech eliminates the need for messy, custom-fabricated relay boards. This unit ensures that your fuel pumps, fans, and ignition system receive stable, fused power, triggered correctly by the ECU.

Engineering for Performance and Longevity

Constructed with high-strand-count, automotive-grade copper wiring, this harness is designed to resist the high-frequency vibrations inherent in performance engines. The insulation is rated for high-temperature environments, ensuring it does not degrade when routed near turbochargers or exhaust manifolds (when properly heat-shielded). The harness features a 2.5-meter (8.2 ft) length, allowing for a clean installation where the ECU is mounted inside the cabin while the engine-side wires reach the sensors comfortably.

A key feature of the Premium harness is the dedicated fuse box which holds 4 relays and 7 fuses. This design separates the “dirty” power used by high-current devices from the “clean” power required by the ECU and sensors. This separation is critical for preventing electrical noise from interfering with sensitive sensor readings, such as the 0-5V analog signals from MAP or TPS sensors. The harness comes pre-terminated with the Elite 1500 ECU connectors, while the engine side is left as flying leads, colour-coded and clearly labeled for easy termination to your specific engine’s connectors.

Fitment and Application Guide

This harness is designed for the Elite 1500 ECU. It is a Universal Wire-in product.

Ideal Engine Configurations: 1-4 Cylinder Piston Engines, 2-Rotor Rotary Engines.
Install Type: Custom wire-in (Termination required).
Vehicle Types: Track cars, engine swaps (SR20, K-Series, 4G63, 13B), and restomods.

Technical Specifications

Compatible ECU	Haltech Elite 1500
Length	2.5 Meters (8.2 Feet)
Power Module	Integrated Fuse Box with Lid
Relays	4 x Automotive Relays Included
Fuses	7 x Fuses Included

Summary & What’s Included

The Elite 1500 Premium Harness provides a rock-solid electrical foundation, combining the ECU loom with a power distribution center to save time and ensure reliability.

Includes:
