Elite Series Integration for the Z32 300ZX
The Elite 2000/2500 Plug ‘n’ Play Adaptor Harness for Nissan 300ZX Z32 brings the advanced power of the Haltech Elite series to the VG30 platform. While the Platinum PRO is a direct replacement ECU, this adapter kit allows you to use the more modern and feature-rich Elite 2000 or Elite 2500 universal ECUs. It connects the factory Z32 wiring harness to the Elite ECU, providing a seamless installation experience for those who demand the latest in motorsport technology.
Engineering Deep-Dive: Bridging Generations
The Z32 harness uses a specific 76-pin connector. This adapter harness maps the factory pinout—including the optical CAS, knock sensors, injectors, and ignition module—to the AMP connectors used by the Elite ECU. It includes an integrated M14 air temperature sensor, enabling the switch to speed density tuning. The harness also provides an auxiliary connector for adding features not present on the stock car, such as boost trim switches, wideband O2 inputs, or flex fuel sensors.
Operational Benefits: Elite Series Power
By using an Elite ECU via this adapter, you gain access to the Elite’s superior processing speed, advanced traction control strategies, and 4D tuning maps. This is particularly beneficial for high-power race builds that require features like rolling anti-lag, long-term learning, and advanced engine protection that the older Platinum series may not offer. It essentially future-proofs your Z32’s management system.
Fitment and Application Scope
Suits:
- Nissan 300ZX (Z32): VG30DE and VG30DETT.
- Transmission: Manual Transmission Only.
- ECU: Haltech Elite 2000 or Elite 2500.
Technical Specifications
| Parameter | Specification |
|---|---|
| Adapter Type | Plug ‘n’ Play (Z32 Header to Elite AMP) |
| Vehicle | Nissan 300ZX Z32 |
| Required ECU | Elite 2000 / 2500 |
| Expansion | 16 Pin Auxiliary I/O |
| Sensor Included | Air Temp (IAT) |
Summary & Includes
The HT-141259 allows Z32 owners to step up to the Elite series ECUs without rewiring the car.
Includes:

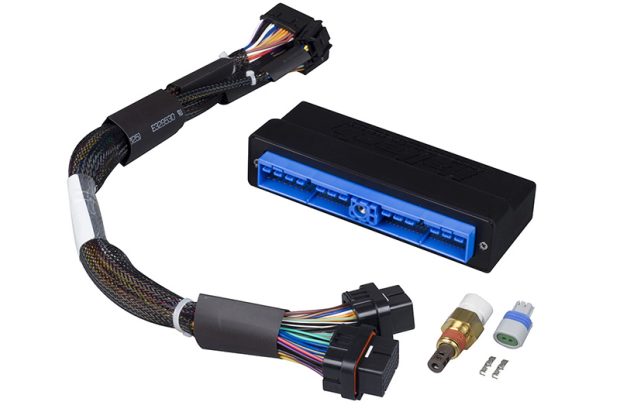

- 1 x Plug ‘n’ Play Adaptor Harness
- 1 x M14 x 1.5 Air Temp Sensor with Plug & Pins
- 1 x Auxiliary I/O 16 Pin Tyco Plug & Pins
Note: ECU is NOT included. This is the adapter kit only.
