Elite 2000/2500 Nissan R34 GT-T, Stagea WC34 Plug’n’Play Adaptor Harness

Unleashing the NEO: Elite Adaptor for R34 GT-T & Stagea

The Nissan RB25DET NEO engine is a pinnacle of the RB series, featuring solid lifters and variable cam timing (VCT) that demand precise control. The Elite 2000/2500 Plug’n’Play Adaptor Harness is designed to seamlessly integrate a Haltech Elite ECU into the Nissan Skyline R34 GT-T and Stagea WC34 chassis. This adaptor bypasses the aging factory ECU, connecting the vehicle’s original wiring harness directly to the Elite unit. By doing so, it grants the tuner absolute authority over fuel, ignition, and the critical NEO VCT system, while maintaining the operation of essential dashboard functions and chassis systems.

Engineering Deep-Dive: NEO Specifics

The RB25DET NEO engine introduces complexities not found in earlier RB series, specifically regarding the VCT solenoid control and the specific pinout of the R34/WC34 ECU header. This adaptor harness is correctly pinned to manage the factory VCT solenoid, ensuring the variable cam timing activates at the optimal RPM and load points for a broad torque curve. It also supports the ATTESA AWD system’s TPS output requirement (for Stagea applications), ensuring the 4WD system receives the correct load signal to distribute torque effectively. The harness routes all factory sensors—including MAF (if retained), Coolant Temp, and Crank Angle Sensor—to the Elite ECU, while the included Auxiliary I/O plug allows for the addition of a MAP sensor and Intake Air Temp sensor for a conversion to Speed Density tuning.

Operational Benefits

Installing this harness eliminates the need for messy patch harnesses or wire-ins. It supports a wide range of OEM functionality including the Tachometer, A/C Control, Power Steering Switch logic, and the Fuel Pump Control Module (FPCM) voltage stepping. This ensures the vehicle retains its street manners while gaining the motorsport capabilities of the Elite ECU, such as engine protection, boost control, and flex-fuel support.

Fitment Guide

Designed for manual transmission models of the following vehicles:

• Nissan Skyline: R34 GT-T (RB25DET NEO)
• Nissan Stagea: WC34 Series 2 (RB25DET NEO)

Technical Specifications

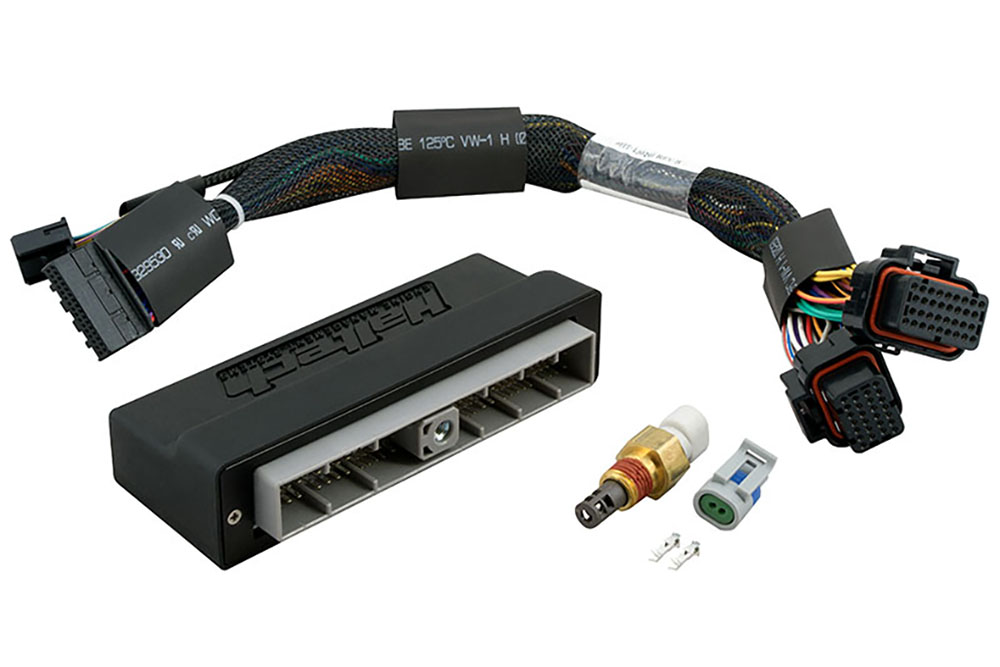

Summary & Includes

Includes:

• 1 x Injection Molded Plug ‘n’ Play Adaptor Harness
• 1 x M14 x 1.5 Air Temp Sensor with matching plug and pins
• 1 x Auxiliary I/O 16 Pin Tyco plug and pins

Note: Manual transmission applications only.
