Elite 2500 + Basic Universal Wire-in Harness Kit Length: 2.5m (8′)

Engineered for Custom High-Performance Builds

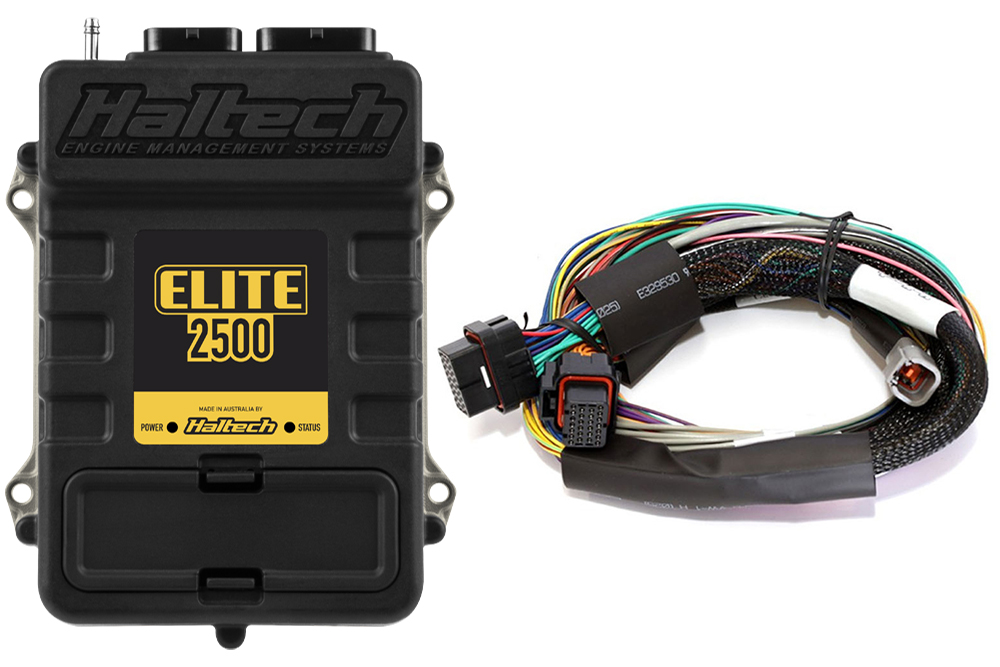

The Elite 2500 + Basic Universal Wire-in Harness Kit is the foundational system for builders and tuners demanding absolute control over sophisticated engine configurations. This kit pairs Haltech’s flagship Elite 2500 ECU with a robust, 2.5-meter universal wiring loom, providing the blank canvas necessary for custom engine swaps, race car wiring, and unique multi-rotor or multi-cylinder applications. It is the definitive choice when plug-and-play solutions do not exist or when a bespoke, mil-spec quality harness is required.

Advanced Engine Management Architecture

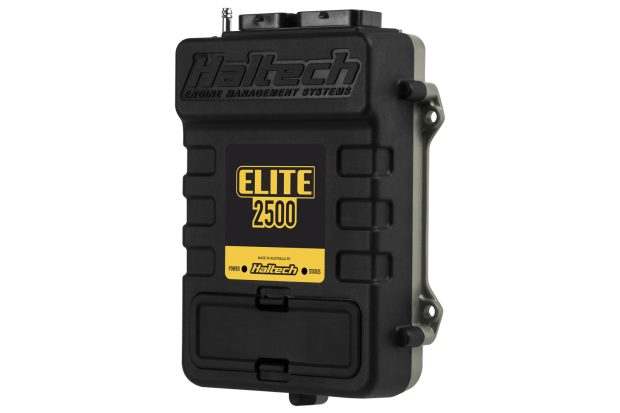

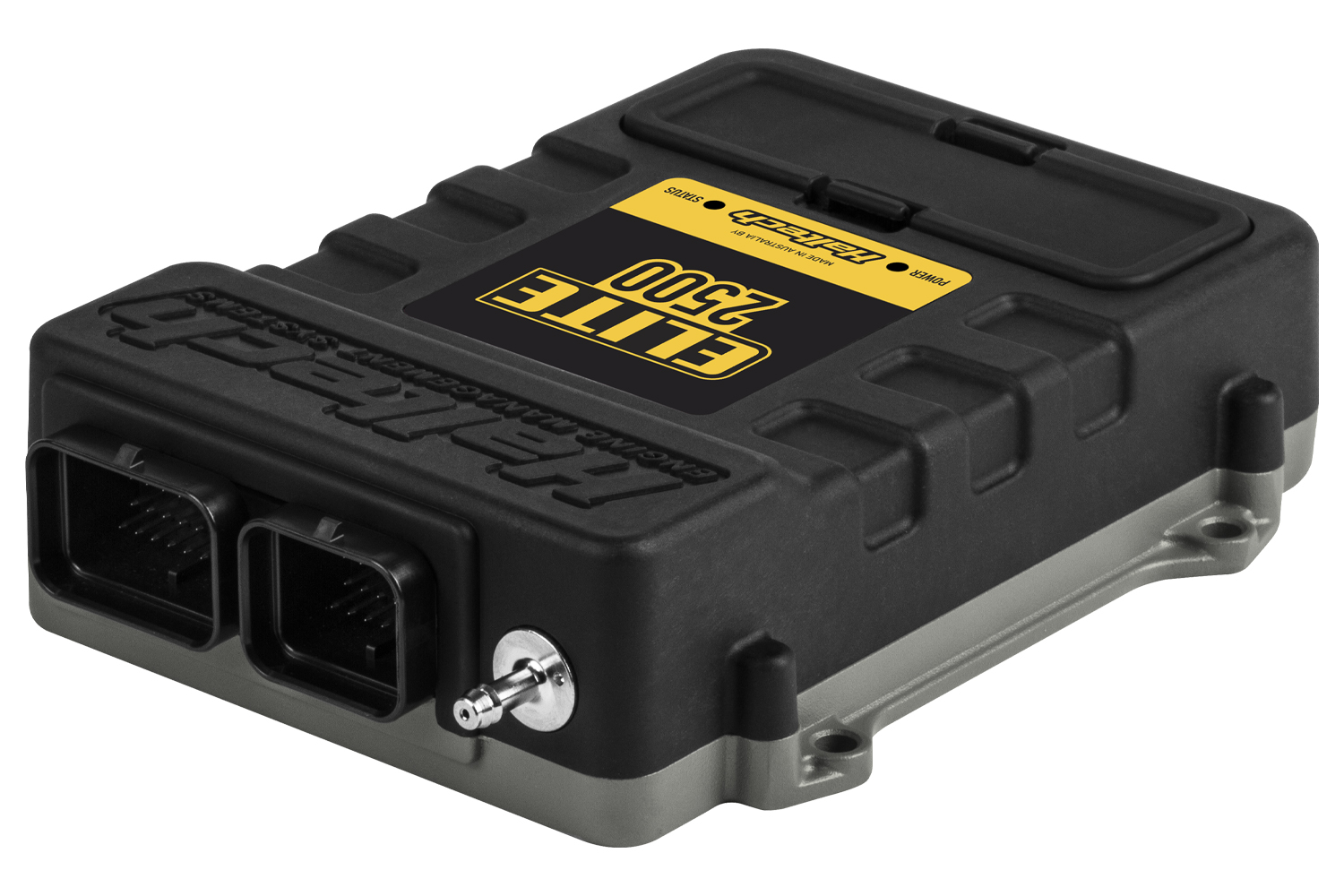

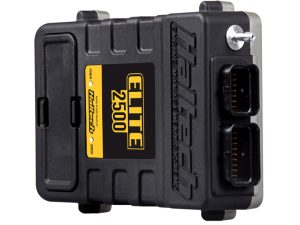

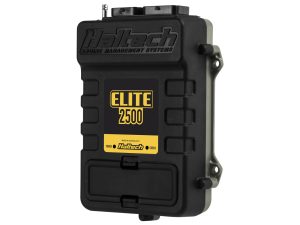

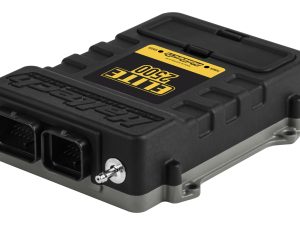

At the heart of this package is the Elite 2500 ECU, a powerhouse of processing speed and I/O flexibility. It supports engines ranging from 1 to 12 cylinders and 2 to 4 rotors, handling sequential injection and direct fire ignition for up to 8 cylinders (or 4 rotors) natively. The unit features a waterproof case and Drive-By-Wire (DBW) throttle control, making it compatible with modern electronic throttle bodies for precise idle control and rev-matching. Its dual-channel knock control and long-term learning capabilities ensure engine safety and optimal performance under all conditions.

Universal Wiring Flexibility

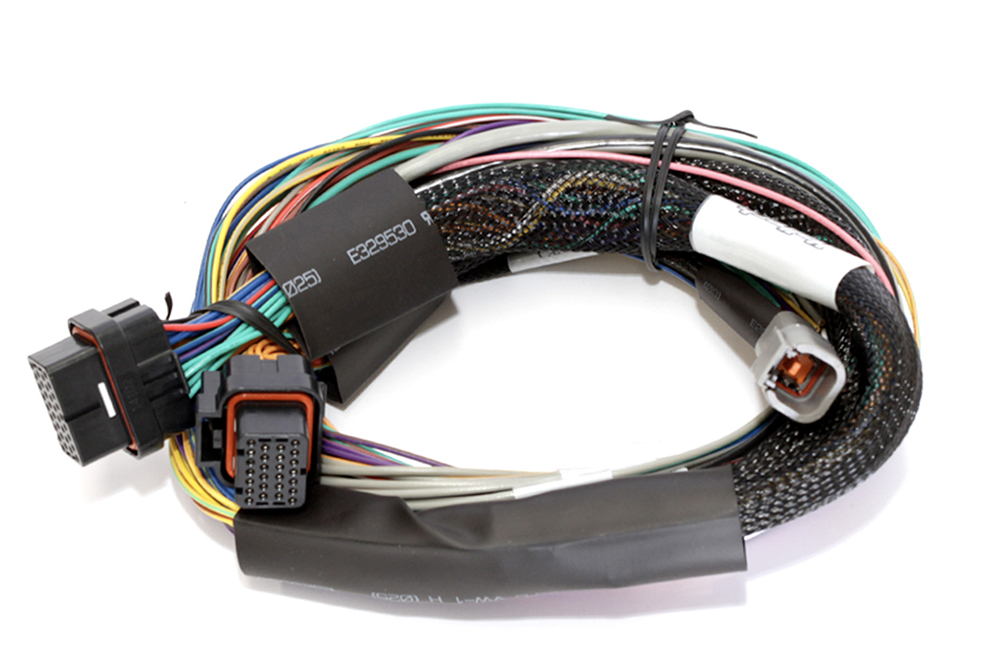

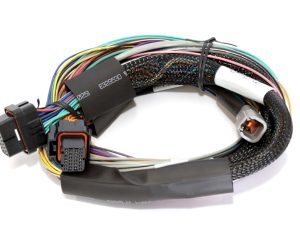

The included “Basic” Universal Wire-in Harness is designed for the fabricator. It comes pre-terminated with the Elite 2500 ECU connectors on one end, while the engine side features unterminated, color-coded, and labeled wires. This allows the installer to cut each wire to the exact length required for a clean, tucked installation, eliminating the mess of excess cabling. The harness uses high-quality automotive-grade wire (TXL) to withstand the harsh thermal environment of the engine bay.

Operational Benefits

• Total Control: Full authority over fuel, ignition, boost, and cam timing.
• Custom Fitment: Create a harness perfectly tailored to your chassis and engine layout.
• Advanced Protection: Multi-level engine protection strategies for oil pressure, lean-out, and over-boost.
• Data Logging: Extensive on-board logging for tuning analysis and driver development.

Fitment Guide

Engine Compatibility: Universal (1-12 Cylinder, 2-4 Rotor)
Harness Type: Flying Lead / Unterminated
Throttle Support: Cable or Drive-By-Wire (DBW)

Technical Specifications

Summary & What’s Included

A professional-grade ECU and harness kit for custom vehicle integration.

Includes:

• Elite 2500 ECU with DBW and Race Functions
• Basic Universal Wire-In Harness (2.5m)
• USB Programming Cable
• Note: Does not include fuse and relay box.
