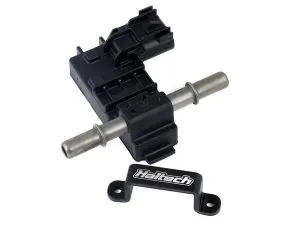

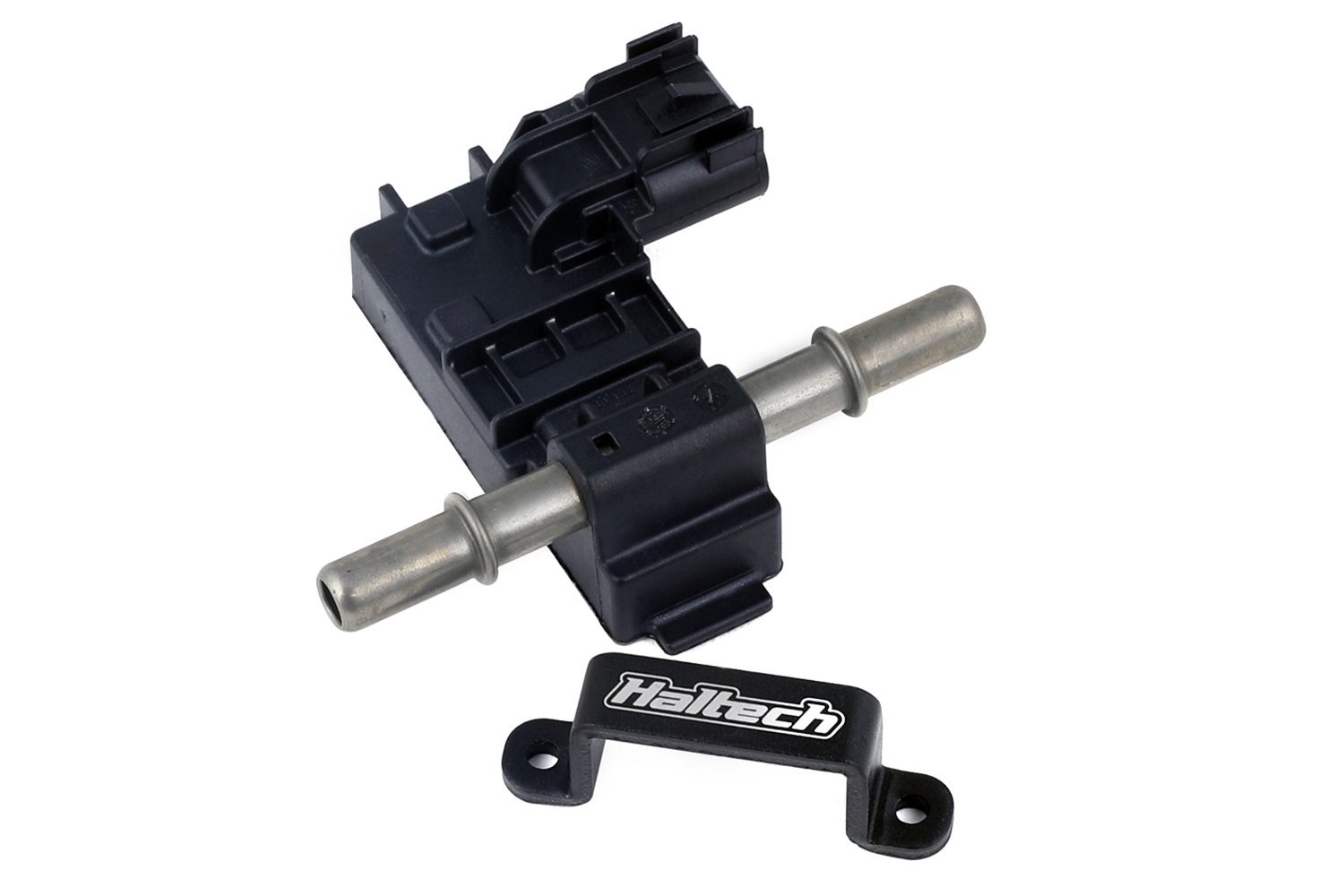

Flex Fuel Composition Sensor

Fuel Identity Analytics: Flex Fuel Composition Sensor

In high-performance engine management, ethanol is the “cheat code” for making power, but its concentration can vary wildly between pump locations. The Flex Fuel Composition Sensor is a precision analytical instrument designed to report the exact ethanol-to-gasoline ratio in the fuel line. This sensor provides your standalone ECU integration with the high-fidelity data needed to blend maps in real-time, enabling maximum boost and timing on E85 while automatically scaling back to safe levels on 91-octane. It is a mandatory safety component for all modern 2JZ, RB26, and LS-swap builds requiring detonation protection through fuel-identity transparency.

Engineering Principles: Dielectric Permittivity Measurement

This sensor operates by measuring the dielectric constant of the passing fuel. Ethanol and gasoline have significantly different electrical properties; by analyzing the capacitance across the internal plates, the sensor can calculate the percentage of ethanol with surgical precision. This Analogue-to-Digital interface (frequency-based) outputs a 50Hz to 150Hz signal that also includes fuel temperature data within the pulse-width modulation. This allows the Haltech Elite or Nexus to compensate for fuel density changes, ensuring your fuel map calibration is accurate whether you are running in cold morning conditions or under intense track heat.

Operational Benefits: Real-Time Map Blending

Integrating a Flex Fuel sensor allows the tuner to create a “Virtual Fuel Tank.” In a standalone ECU integration, you no longer have to manually switch maps; the ECU reads the ethanol percentage and uses a 3D blending table to interpolate between your low-boost pump gas and high-boost E85 maps. This is foundational for closed-loop boost control, as the ECU can safely increase boost pressure only when it detects enough ethanol to prevent knock. The sensor suits 3/8″ GM Spring Lock fittings, allowing for easy integration into standard fuel lines with the appropriate motorsport adapters (like HT-011030). This setup provides the tuner with a timing reference that adjusts itself based on the fuel’s chemical knock resistance.

Installation and Component Integration

The Flex Fuel Composition Sensor is a universal component and includes a matching plug and 3 pins for a professional harness integration. It is typically installed in the return line to capture a representative sample of the fuel being cycled through the system. During installation, ensure the sensor is mounted away from high-current AC components to minimize EMI (Electromagnetic Interference). The sensor is fully compatible with Haltech’s range of software, with pre-defined calibration files available for instant setup. This hardware is a mandatory prerequisite for any high-performance build seeking the flexibility of variable fuel blends without the risk of engine failure.

Technical Specifications Table

Summary & Includes

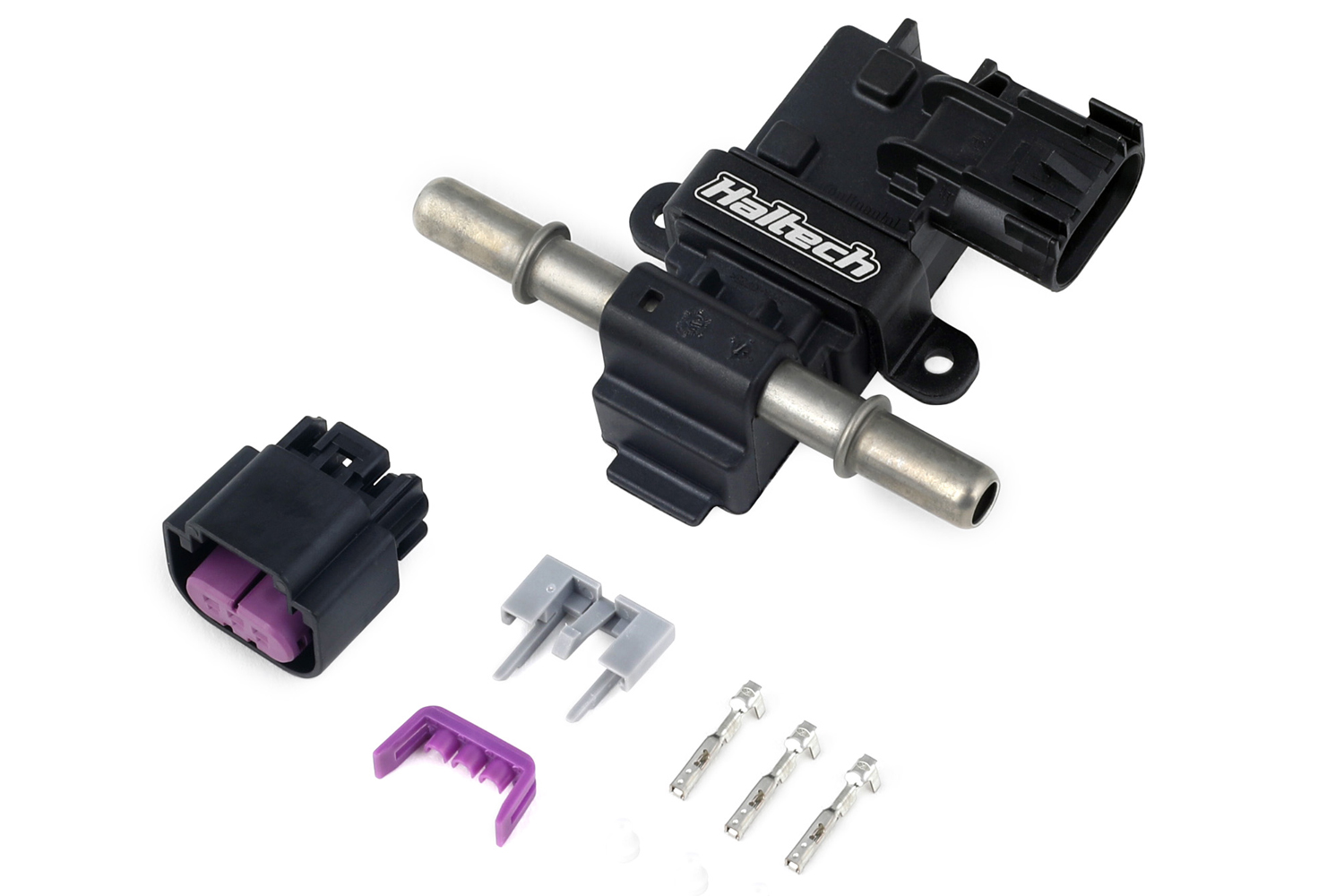

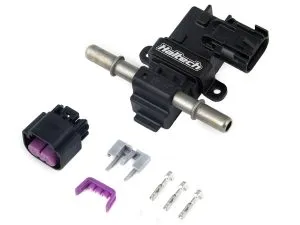

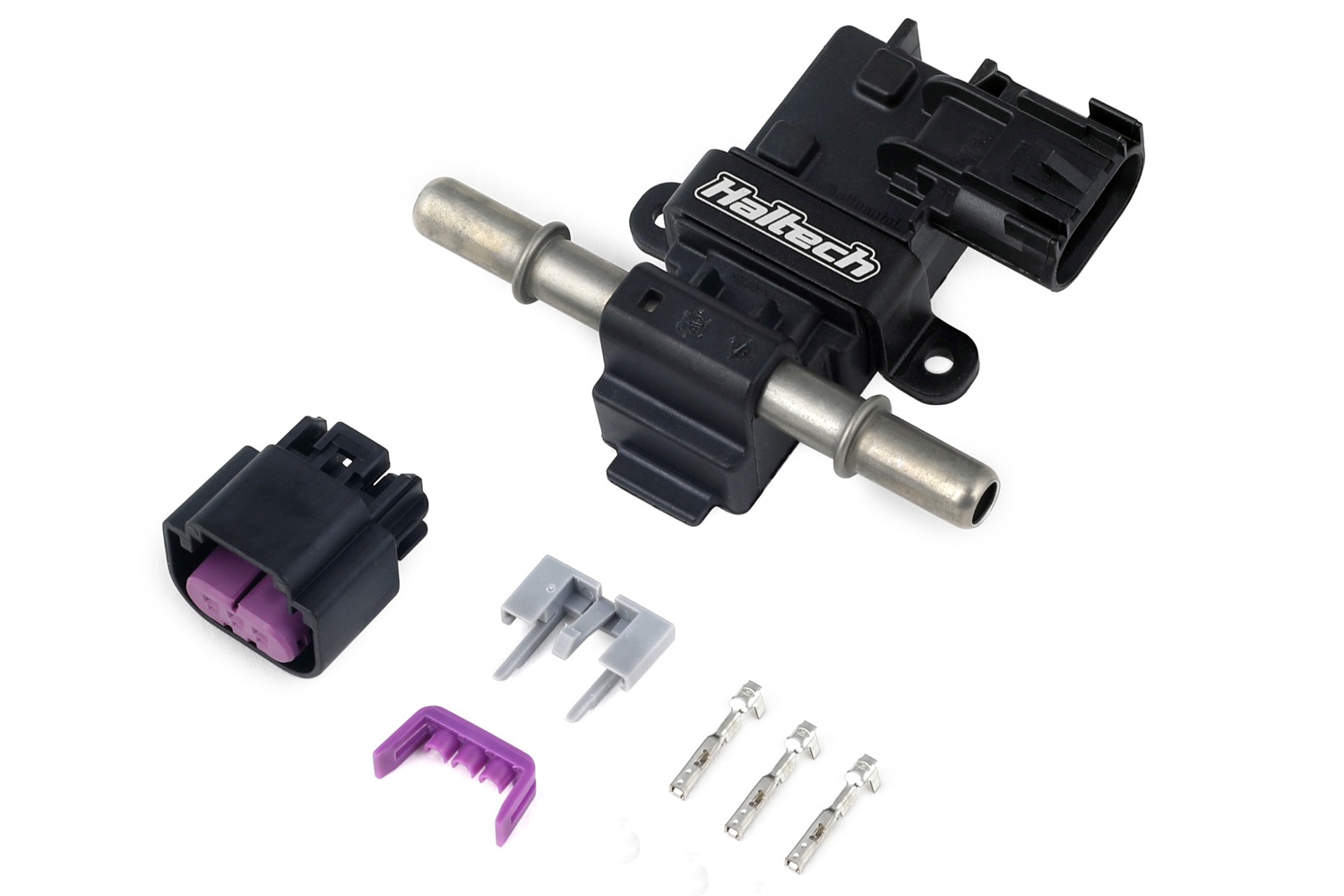

The Flex Fuel Composition Sensor is the ultimate safeguard for variable fuel tuning. Includes: 1 x Flex Fuel Sensor and a matching 3-Pin Connector set. Note: Requires 3/8″ GM Spring Lock adapters for fuel system integration.
