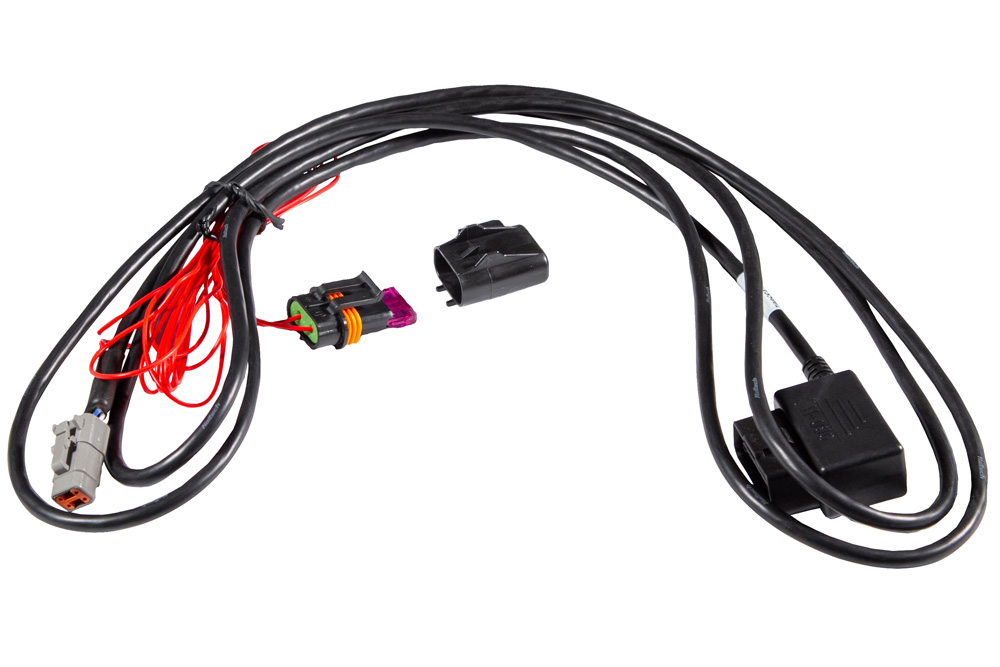

Haltech iC-7 / uC-10 OBDII to CAN Cable Length: 1400mm / 55in

Plug-and-Play Data for Modern Performance Vehicles

Unlocking the wealth of data hidden within your vehicle’s factory ECU has never been easier. The Haltech iC-7 / uC-10 OBDII to CAN Cable is the bridge between your daily driver’s diagnostic port and the advanced visualization of a Haltech digital dash. Designed for vehicles manufactured from approximately 2008 onwards, this cable utilizes the standardized CAN bus protocols present in the OBD-II port to stream real-time data directly to your iC-7 or uC-10 display. This eliminates the need for complex sensor installation or invasive wiring harness modifications. Simply plug one end into the vehicle’s OBD-II port under the dash, route the 1400mm cable to your mounted display, and you have instant access to RPM, Speed, Coolant Temp, Intake Air Temp, and more.

Engineering Deep-Dive: CAN Protocol Translation

While the physical connection is simple, the engineering within the iC-7/uC-10 system is sophisticated. This cable connects the CAN High and CAN Low pins from the standard OBD-II connector (J1962) directly to the CAN input of the Haltech dash. It relies on the dash’s internal software to interpret the ISO 15765-4 (CAN) diagnostic messages broadcast by the factory ECU. The cable is constructed with twisted-pair data lines to maintain signal integrity and resist interference from the vehicle’s electrical systems. The 1400mm (55″) length is specifically chosen to allow for clean routing behind dashboard panels and up to A-pillar or steering column mounts without leaving excessive slack that requires bundling.

Operational Benefits: Instant Instrumentation

For the track-day enthusiast or the owner of a modified street car, this cable provides immediate value. It allows you to monitor critical parameters that the factory instrument cluster often hides or dampens (like precise coolant temperature in degrees, rather than a vague ‘C to H’ needle). It also enables the use of the dash’s programmable shift lights and warning alarms based on the factory sensor data. Because it uses the OBD-II port, the installation is completely reversible, making it perfect for leased vehicles or dual-purpose cars that need to return to stock condition easily.

Fitment and Compatibility

This cable is designed for use with:

• Haltech iC-7 Display Dash
• Haltech uC-10 Display Dash

Vehicle Compatibility: Suits most vehicles manufactured after 2008 that utilize the CAN bus protocol on the OBD-II port. Note that while most modern vehicles are supported, the specific data channels available depend on what the vehicle manufacturer broadcasts via OBD-II.

Technical Specifications

Summary & Includes

The HT-135003 Cable is the key to unlocking the ‘plug and play’ capability of your Haltech dash in modern vehicles. It combines robust construction with the convenience of standardized diagnostics.

Includes:

• 1 x OBDII to CAN Cable (1.4m)
• 1 x Fuse (Integrated)

Note: This cable provides data and power. However, some vehicles cut OBD-II power during cranking or when the ignition is off. Verify your vehicle’s OBD-II pinout behavior for optimal dash performance.
